Product Overview

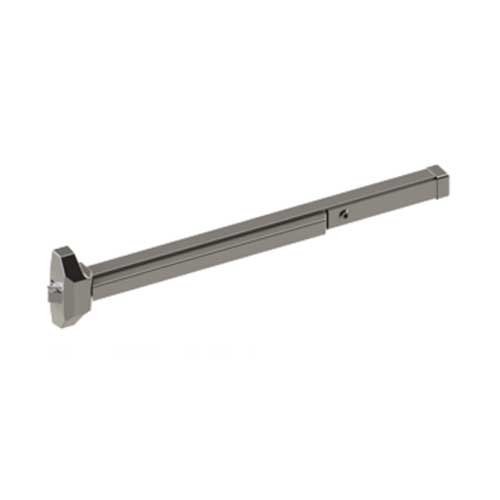

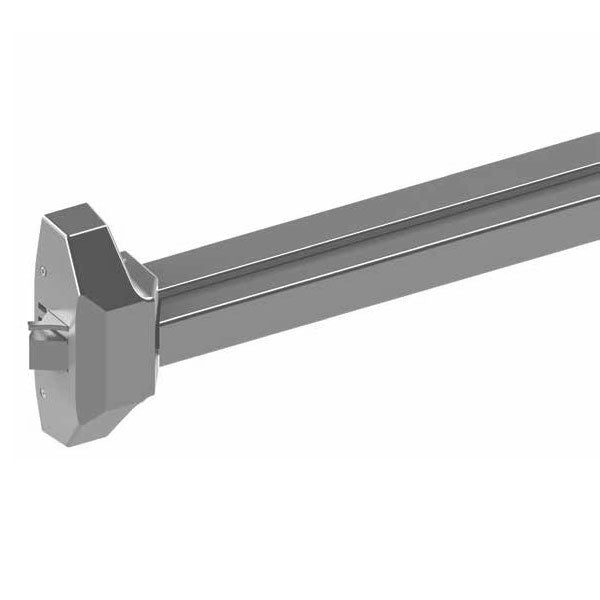

Hager 4700 Series Grade-1 Panic Rim Exit Device, Exit Only
The Hager 4700 Series is designed and engineered to provide superior performance on standard stile doors in a range of light commercial and standard duty applications. Properly applied and maintained Hager 4700 Series Exit Devices and Trim are backed by a five-year warranty. Made with superior materials and with dead locking stainless steel latchbolts, the 4700 Series Exit Devices provide necessary security and performance at economy pricing.
Hager 4700 Series Exit Devices are BHMA Certified Grade 1 and meet Life Safety Codes and Fire Requirements.
- Exit Only Device (Hager Exit Device Trim Sold Separately)
- Projection: 2-7/16" in undogged position, 1-3/16" in dogged position
- Stile Width: 4-1/2''- minimum stile width required for single door and 5/8" stop
- ANSI/BHMA A156.3-2014 Grade 1
- UL305 Listed for panic hardware
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2014 Grade 1 |
|---|---|
| Brand |
Hager |
| Dogging Feature |
Half turn hex dogging standard |
| Door Thickness |
1-3/4" |
| Fasteners |
Wood and machine screws Thru-bolts |
| Finish |
BlackDark BronzeAluminumStainless Steel |
| Finishes |
US32D (630) Satin Stainless SteelDBZ Sprayed Dark BronzeALM Sprayed AluminumBLK Black |
| Fire Rating |
None |
| Latchbolt |
5/8" (16 mm) throw pullman type with automatic dead-latching stainless steel |
| Length |
3'0" (2'6" to 3'0" Doors)4'0" (3'1" to 4'0" Doors) |
| Stile Type |
Wide (Standard) |
| Strike |
Stainless steel with roller |
| Usage |
Light Duty |
