NGP (National Guard) HD5700 Heavy Duty Full Surface Continuous Geared Hinge

$187.20
Usually Ships:  5-10 Business Days
  • 1/16" door inset for 1-3/4" to 2-1/4" doors
  • UL listed, fire-rated up to 90-minutes
  • Supports weights up to 600lbs

Available Options:

Clear

Product Overview

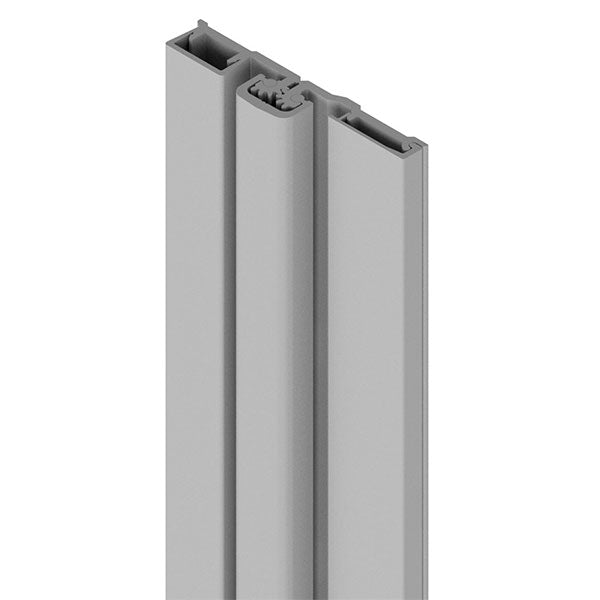

NGP HD5700 Heavy Duty Full Surface Continuous Geared Hinge for Narrow Frame Face

Continuous geared aluminum hinges run the full height of the door evenly distributing the weight of the door along the full height of the frame. Ideal for high-frequency and heavy-weight doors in new construction and retrofit applications.

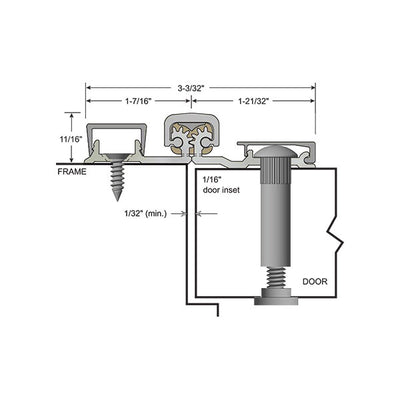

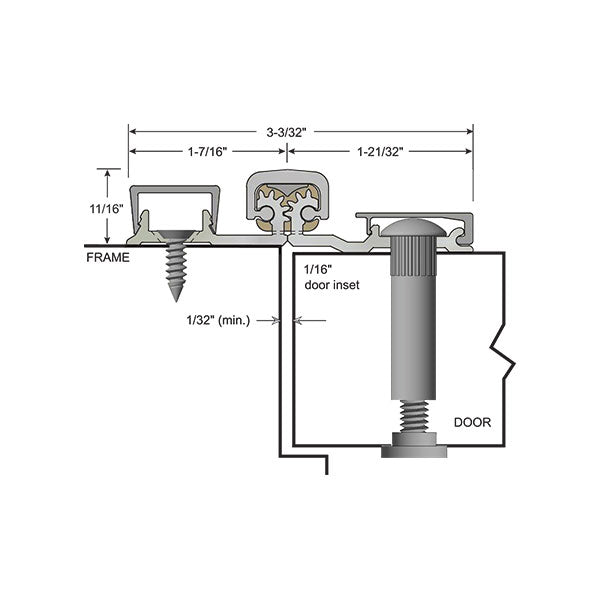

  • 1/16" Door Inset for 1-3/4" to 2-1/4" Doors
  • Fits narrow face frames-minimum 7/8" width
  • Aluminum alloy 6063-T6; Anodized after machining
  • Specially designed involute intermeshing gears
  • Proprietary Teflon infused self-lubricating wear-resistant bearings
  • No hinge reinforcement is necessary except on extremely heavy, extremely high-frequency or extra-wide doors
  • Lifetime of the door opening warranty
  • Frame leaf: #12-24 TEK flat head MS
  • Door leaf: #12-24 TEK pan head MS and 1/4"-20 thru-bolts
  • Standard lengths: 83", 85", *95"
  • Note: For door sizing refer to installation instructions

*Oversize handling fee applies (added at checkout)

ANSI/BHMA Standard

Grade 1 - 150 lb. Door Grade 1 - 600 lb. Door
Brand

NGP (National Guard)
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Continuous Hinge Type

Full Surface
Finish

Anodized AluminumDark Bronze
Fire Rating

Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".
Length

83" (for 7'0" door)85" (for 7'2" Door)95" (for 8'0" door)
Material

Aluminum alloy 6063-T6; Anodized after machining
Usage

Heavy Duty
