NGP (National Guard)

NGP (National Guard) HP90-FB Flush Bolt Hardware Prep Filler

$189.22
Usually Ships:  5-10 Business Days
  • Used to fill flush bolt preps (door edge and top)
  • Certified on hollow metal and wood fire-rated doors

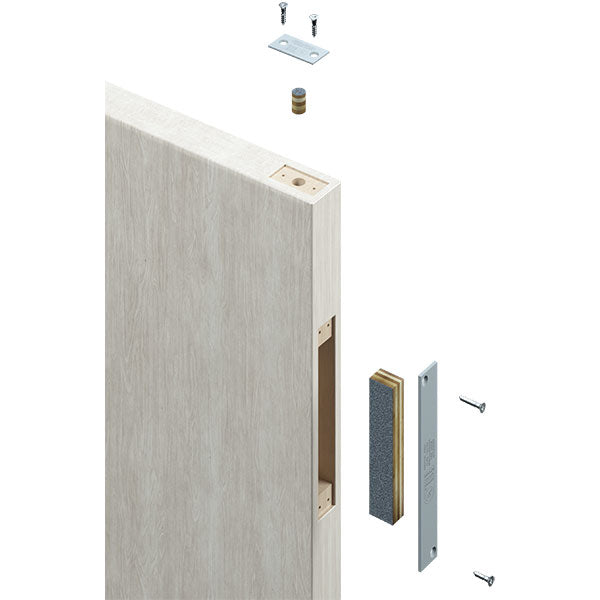

  • Full kit includes panels, fillers, screws, and caulk

Product Overview

NGP HP90-FB Flush Bolt Prep Filler Kit

UL Certified Solution for Fire Doors When Either Removing Existing Hardware and/or Using a New Hardware Type Over Existing Hardware Preps

  • Application Certified on Both Hollow Metal and Wood Fire-Rated Doors – up to 90-Minute
  • Certified for Filling Manual or Automatic Flush Bolt Cavities
  • Finish: Primer Gray, Powder Coat

PRODUCT CONSISTS OF:

  • HP90 – 2" × 6" Rectangular Fire-Rated Panel
  • HP90 – 0.5 Cylindrical Fire-Rated Panel
  • Steel Filler Plates: (Powder Coated Primer Gray, Embossed With UL Mark) - HP90-FBE6750, Edge Filler Plate - HP90-FBE8500, Edge Filler Plate - HP90-FBL2000, Latch Bolt Filler Plate - HP90-FBL2500, Latch Bolt Filler Plate - HP90-FBL3875, Latch Bolt Filler Plate - HP90-SF2250, Strike Filler Plate
  • Hardware Pack: #10-32 × 1 ¾" FHPH SS machine screw - #8 × ¾" FHPH SS combo screw - #12 × 1" FHPH SS combo screw - #8 × ¾" FHPH SS SMS - #12 × 1" FHPH SS SMS

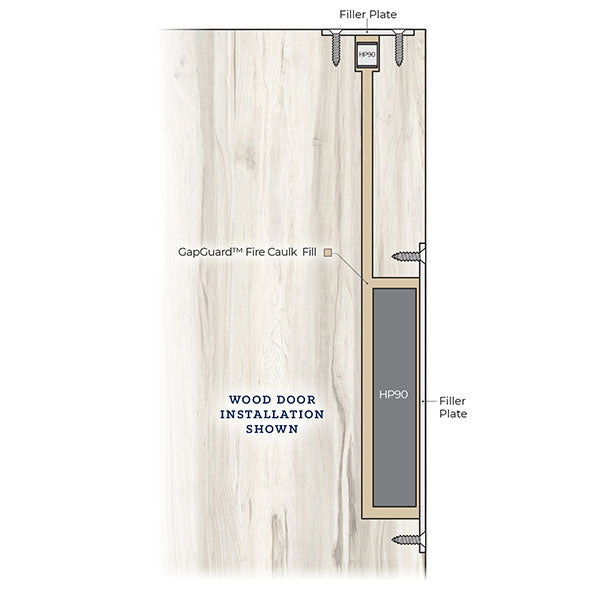

  • GapGuard™ Fire Caulk (see installation instructions)

SPECIAL NOTES: 90-minute rated UL Certified Miscellaneous Fire Door Accessory on UL10B and UL10C wood or hollow metal fire doors. To retain UL Certification, the HP90-FB must be installed using GapGuard™ Fire Caulk.

Brand

NGP (National Guard)
Finish

Gray Primed
Part Type

Filler Plate
