Product Overview
National Guard Products L-FRA100-SP Low Profile Lite Kit for 1-3/4" Thick Doors with 1″ Clear Insulated Safety Glass and Glazing Tape

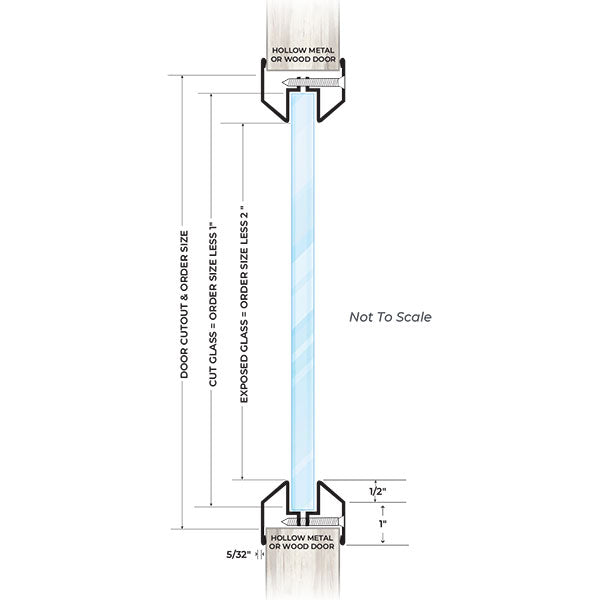

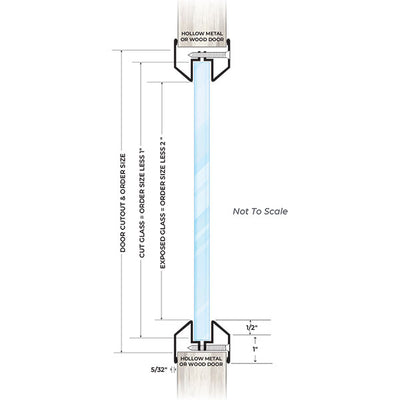

- Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
- Mitered and welded corners with countersunk mounting holes

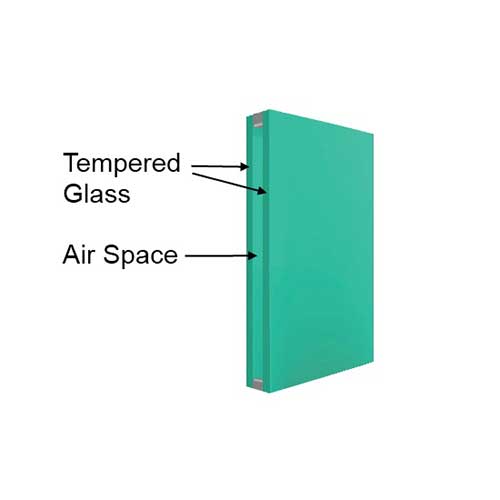

- Includes 1″ Insulated Glass – Two Panes of tempered glass with a metal spacer in a sealed insulated glass unit – Each Pane: 3/16″ – Clear, colorless, intumescent inter-layer
- Glass Approvals: ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II
- Includes glazing tape
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
| Brand |
NGP (National Guard) |
|---|---|
| Finishes |
BPR - Beige Primer, DKB - Dark Bronze, GPZ - Gray Primer, MBL - Matte Black, W - White |
| Order Size |
18" x 24", 18" x 30", 18" x 32", 18" x 60", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 56", 24" x 60", 24" x 64", 5" x 35", 6" x 27", 7" x 22", 8" x 32" |
| Fire Rating |
None |
| Glass Type |
Clear Insulated Glass |
| Glass Appearance |
Clear |
| Glass Thickness |
1" |
| Frame Profile |
Low |
| Frame Construction |
18 Gauge Cold Rolled Steel |
| Frame Fasteners |
#8 x 1" Flathead Phillips SMS - Included |
| Glass Impact Safety Rating |
ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II |
| Door Thickness |
1-3/4" |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
