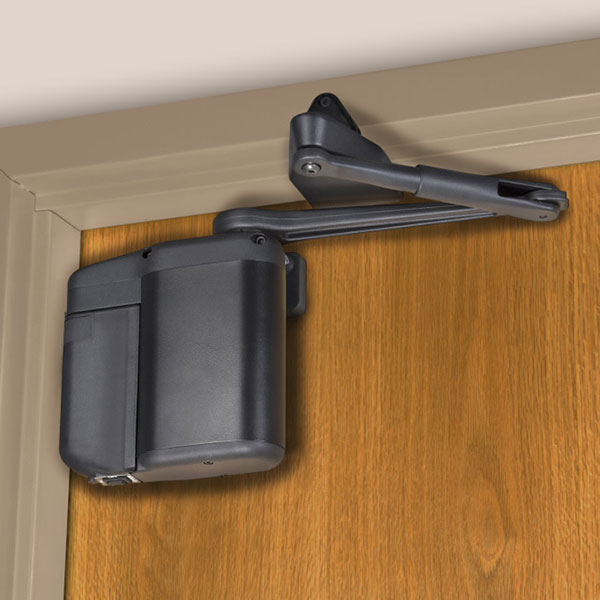

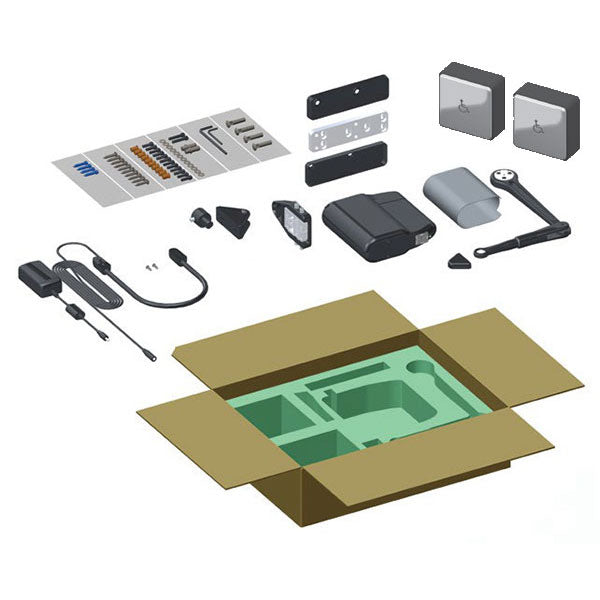

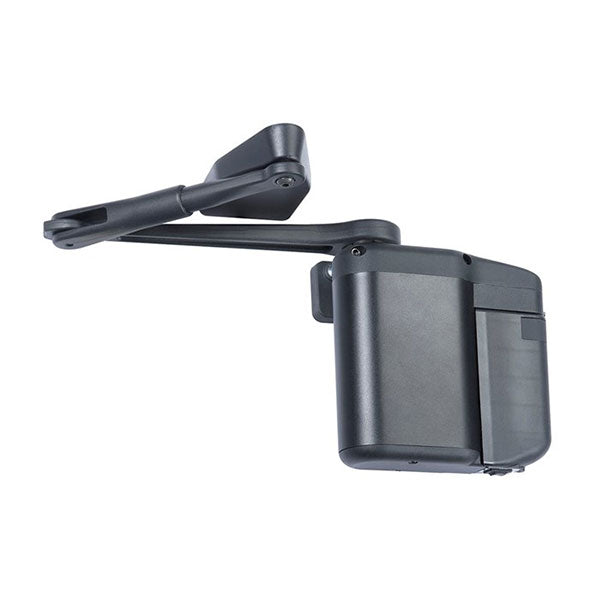

Norton 5845 x SQPB (Push & Pull) ADAEZ PRO COMPLETE Low Energy Door Operator Kit

As one of the world’s only regenerative power door operators, Norton’s 5800 Series is certified by GreenCircle to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 is simple to install and use.

The 5800 Series ADAEZ PRO is an extreme duty, low energy door opener designed for moderate to high traffic manual opening applications that occasionally requires powered operation. A regenerative drive system charges an onboard battery pack eliminating the need for electrical power.

FEATURES

  • Non-handed

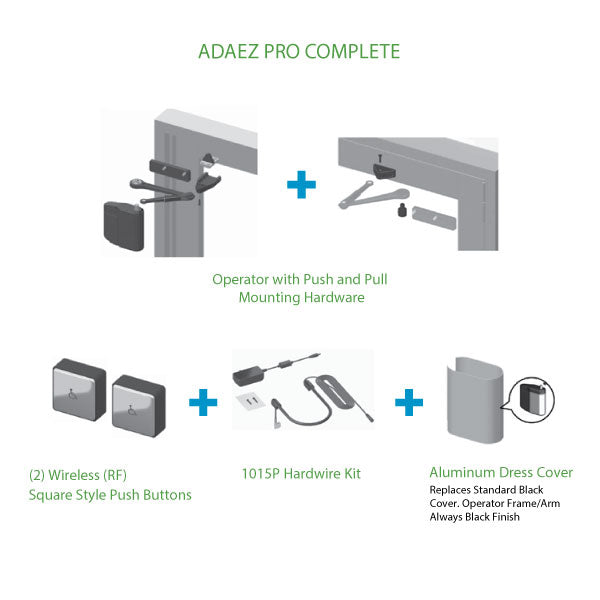

  • Push and pull side mounting hardware
  • Radio Frequency stainless steel push buttons
  • Integral RF receiver
  • Shock absorbing arm
  • Includes both 693T (black) and 689 (aluminum) finish covers
  • Mounting hardware for virtually any door and frame
  • 24VDC plug-in transformer kit for continuous automatic use applications
  • Functions like ordinary door closer when used manually
  • Grade 1 - heavy-duty, commercial design
  • Protection from high-wind & abusive environments
  • Maximum Door Width: 48"
  • Door Weight: 250 lbs.

CERTIFICATIONS

  • ANSI/BHMA A156.19 certified
  • ETL tested to UL/cUL standard for automatic doors on fire & smoke barrier doors
  • Complies with requirements for Americans with Disabilities Act (ADA)
  • UL10c 90-minute positive pressure fire rating
  • Manufactured in an ISO 9001 and ISO 14001 certified facility
ANSI/BHMA Standard

ANSI/BHMA A156.19 certified

Brand

Norton

Finish

AluminumBlack

Finishes

689 Aluminum693 Black

Handing

Non-Handed

Mounting

Surface Mount

Usage

Heavy Duty
