PDQ XGT116 Entrance Lever Lock

$248.49
Usually Ships:  2-3 Business Days
  • Extra Heavy-Duty, ANSI/BHMA A156.2 Grade 1 certified
  • ANSI function: F109, entrance
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

PDQ XGT116 Lever Lockset,  Entrance Function, Extra Heavy-Duty, Grade-1, 2-3/4" Backset, ASA Strike, Schlage C Keyway


The XGT Series Extra Heavy Duty Cylindrical Lock offers premium quality and durability. Cycle tested to over 3 times the BHMA standards, the XGT lock is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock. This makes it a great choice for high-traffic areas where durability is most important. The XGT series is backed by a lifetime warranty and is assembled in Lancaster, PA.
ANSI Function F109 – Latchbolt operated by lever from either side or key in outside lever. Outside lever locked by push/turn button on inside. When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever. When outside lever is locked by pushing and turning button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever.
  • Built with a heavy-duty diecast chassis and a cast stainless steel lever spindle
  • 13-gauge steel anti-rotation plate enhances stability
  • Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard)
  • Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard)

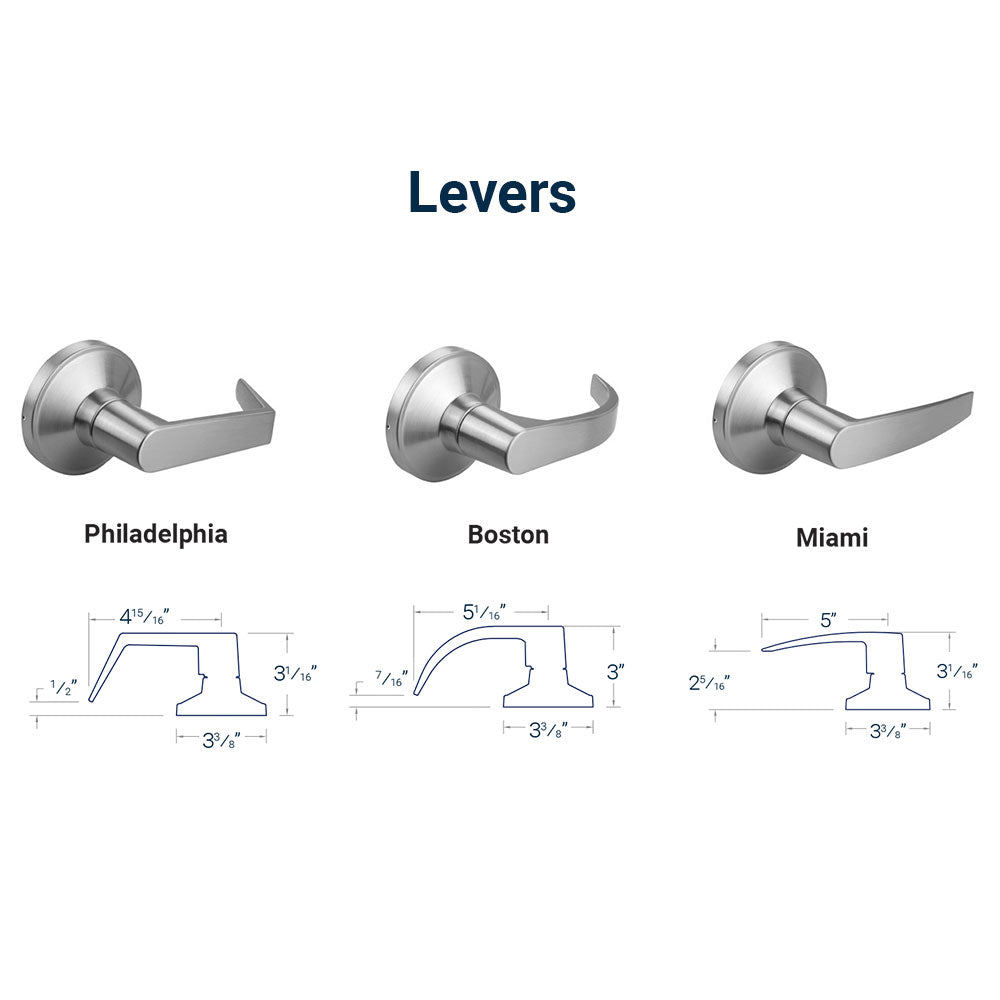

  • *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 1 standards
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

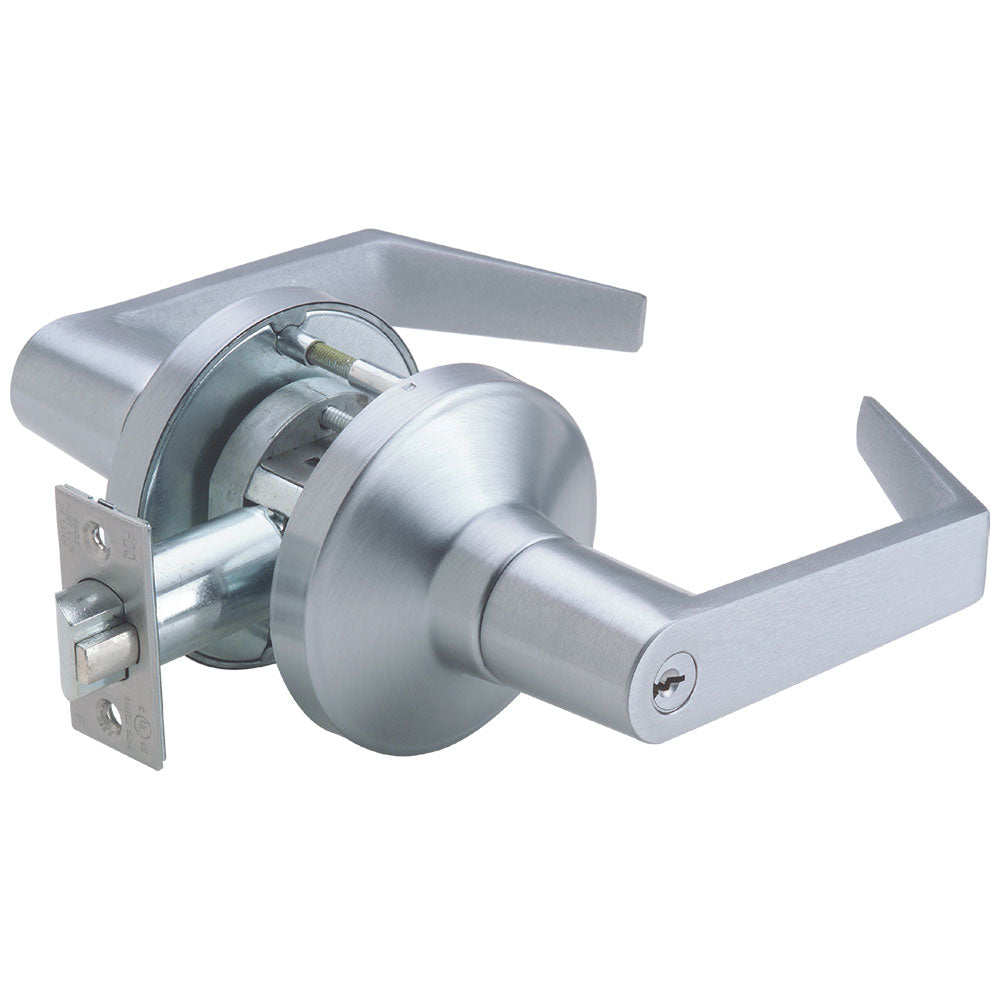

* PHL (Philadelphia) Lever Design Shown
