PDQ XGT176 Privacy Lever Lock

$215.33
Usually Ships:  2-3 Business Days
  • Extra Heavy-Duty, ANSI/BHMA A156.2 Grade 1 certified
  • ANSI function: F76, privacy
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

PDQ XGT176 Lever Lockset,  Privacy Bedroom / Bathroom Function, Extra Heavy-Duty, Grade-1, 2-3/4" Backset, ASA Strike


The XGT Series Extra Heavy Duty Cylindrical Lock offers premium quality and durability. Cycle tested to over 3 times the BHMA standards, the XGT lock is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock. This makes it a great choice for high-traffic areas where durability is most important. The XGT series is backed by a lifetime warranty and is assembled in Lancaster, PA.
ANSI Function F76 – Latchbolt operated by lever from either side or emergency release in outside lever. Outside lever locked by push button on inside. Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door.
  • Built with a heavy-duty diecast chassis and a cast stainless steel lever spindle
  • 13-gauge steel anti-rotation plate enhances stability
  • Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard)
  • Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard)

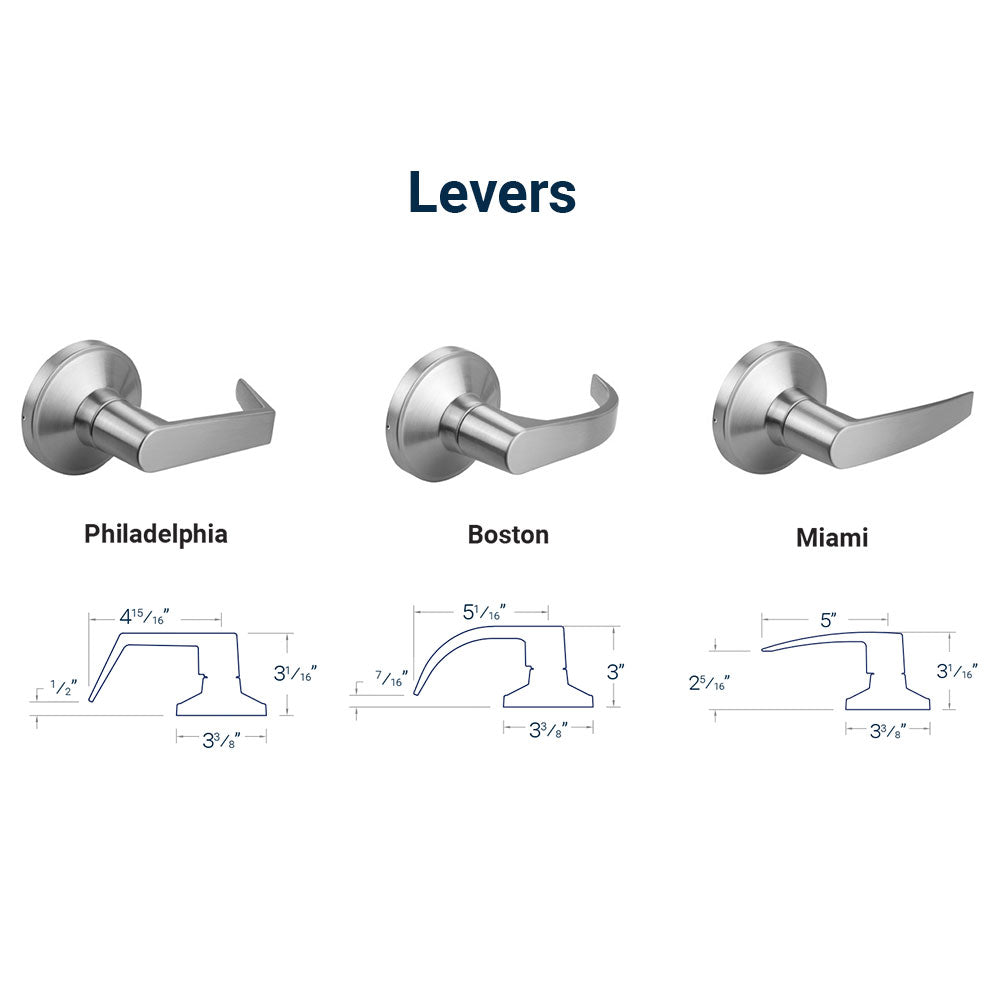

  • *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 1 standards
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

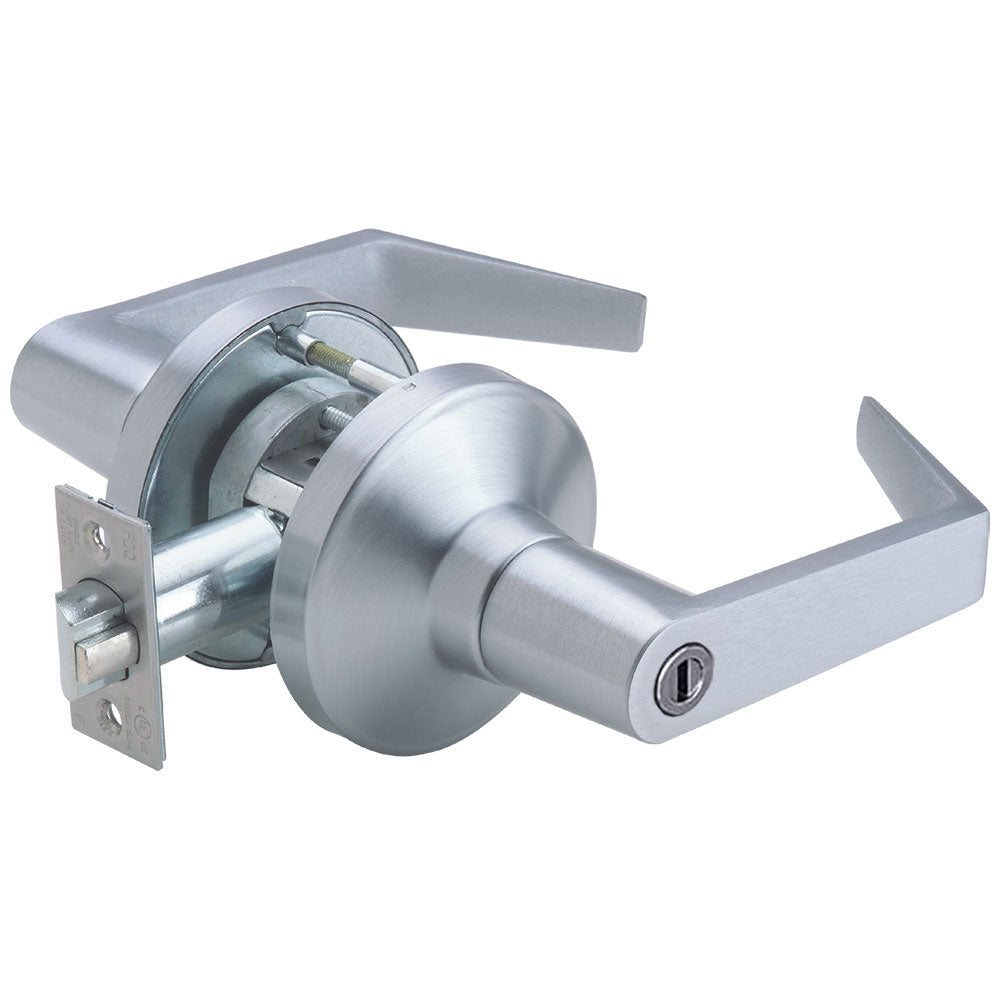

* PHL (Philadelphia) Lever Design Shown
