Schlage

Schlage ND40S RHO (Rhodes) Privacy Lever Lock with OS-LOC (LOCKED/UNLOCKED) Outside Indicator Escutcheon Trim

$558.18
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Ideal for high-use commercial restroom doors
  • Includes outside indicator (LOCKED/UNLOCKED)

Available Options:

Clear

Product Overview

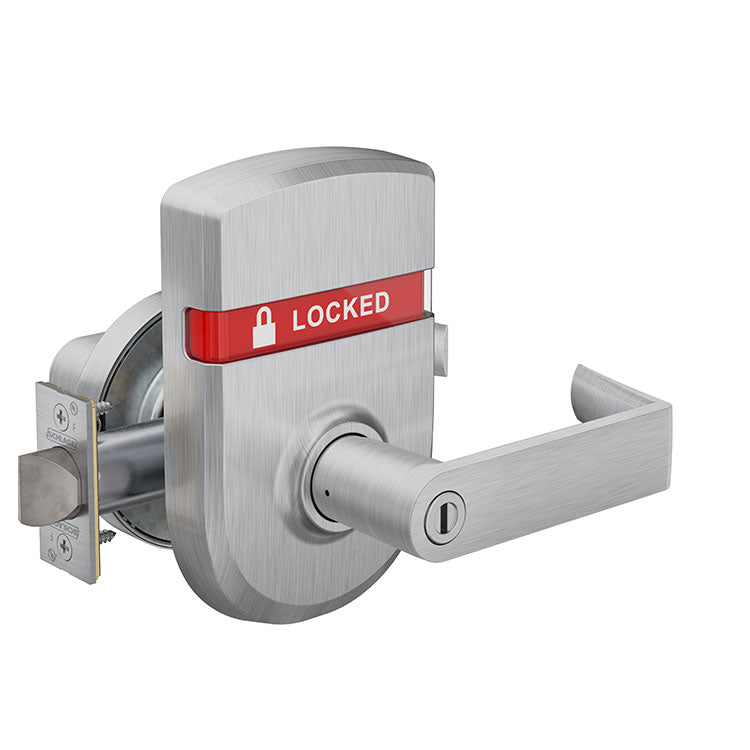

Schlage ND40S RHO Grade-1 Cylindrical Lever Lock, Bath/Bedroom Privacy Function, Rhodes Lever, OS-LOC (LOCKED/UNLOCKED) Outside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

ANSI Function F76 - Lever with emergency release recessed slot outside; push button in lever inside; springlatch. In unlocked state latch is retracted by either lever. Outside lever is made inoperative by pushing button on inside lever. Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout. Emergency unlock: an emergency key (sold separate) or small, flat screwdriver inserted in outside lever and turned releases button to unlock. Inside lever always free for immediate egress

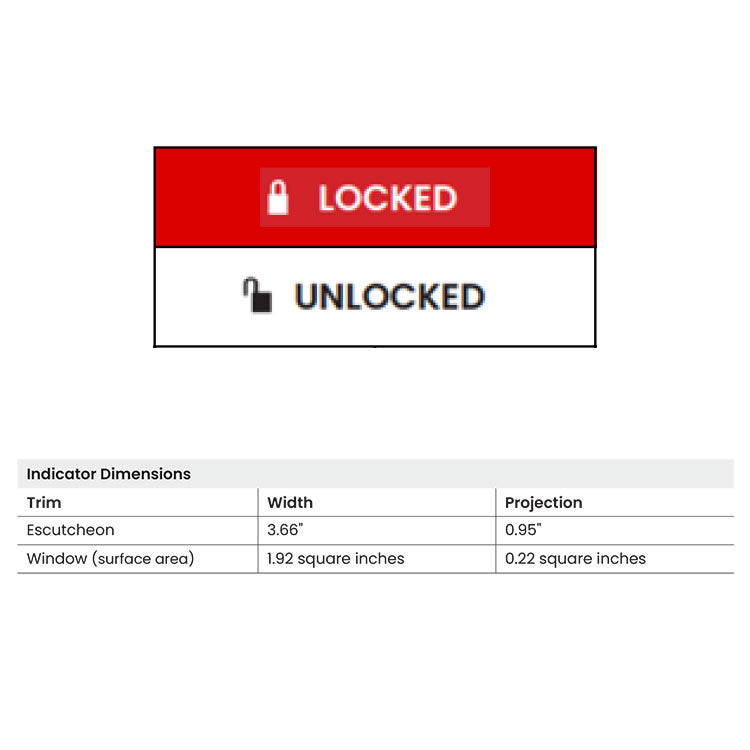

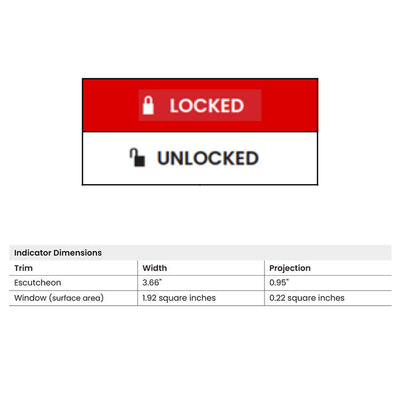

  • Indicator window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .6” for maximum visibility
  • Can be installed using the same standard door prep as any ND Series lock
  • Fits 1-3/4" thick doors
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque
  • Shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built
  • ADA compliant lever handles

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Door Thickness

1-3/4"
Finish

Satin NickelBlackSatin ChromeSatin Chrome AM (Antimicrobial)Aged BronzeDark Bronze
Finishes

626AM Satin Chrome Antimicrobial619 Satin Nickel643e Aged Bronze626 Satin Chrome613 Oil Rubbed Bronze622 Matte Black
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Hand

RH (Right Hand)LH (Left Hand)
Handing

Handed – LH RH
Latch

1/2" throw - 1-1/8" x 2-1/4" face
Lever Design

RHO (Rhodes)
Lock Function

Privacy w/ Indicator
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

10 Years
