Trudoor

Trudoor CL1-76 Heavy-Duty Privacy Lever Lock

$124.19
Usually Ships:  Same Day
  • Meets ANSI Grade 1 standards
  • Bath/privacy function, push button locking
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

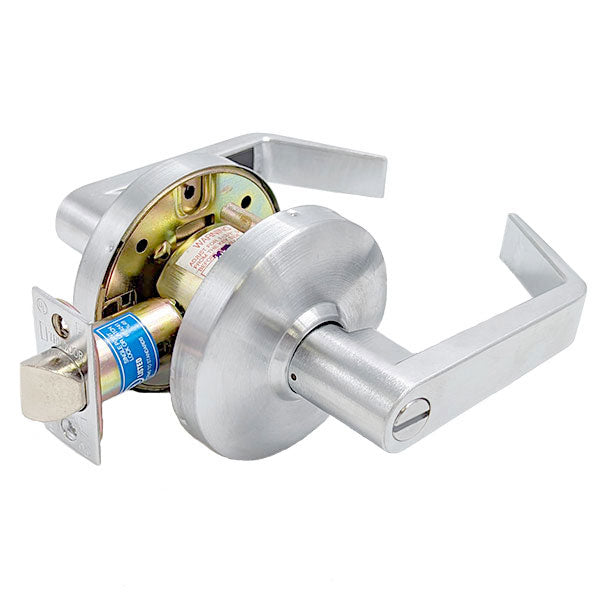

Trudoor CL1-76, CL1 Series Grade-1 Cylindrical Lever Lock, Privacy Function, Heavy-Duty


Trudoor® CL1 Series cylindrical locks are an ideal choice for a wide variety of heavy-duty applications where consistent reliability and easy installation are required at an economical price. CL1 locks are for use on exterior or interior doors in office buildings, schools, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial, institutional, or industrial buildings.
  • Quality construction and reliability at an affordable price
  • Steel, zinc dichromated chassis for corrosion resistance with precision cast steel retractor
  • Clutch mechanism on locking functions, free turning lever in locked position without retracting latch for vandal resistance
  • Non-handed and reversible for easy installation
  • Fixed thru-bolts for added strength
  • 2-3/4" backset latch and ASA strike standard (t-strike and full lip strike available in lock parts and accessories)

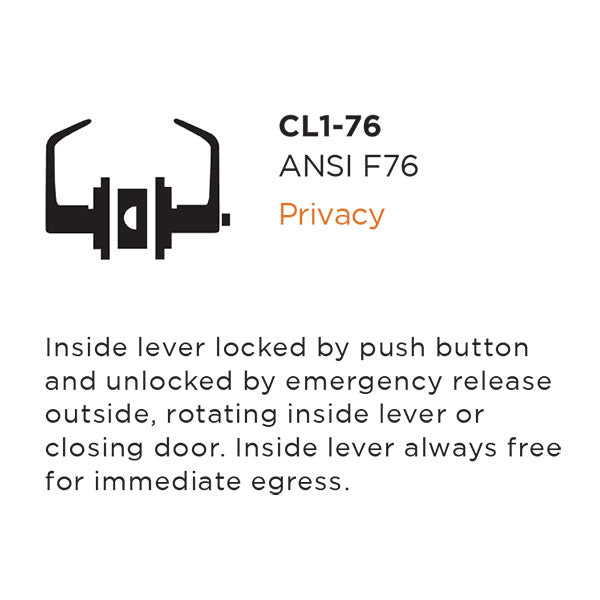

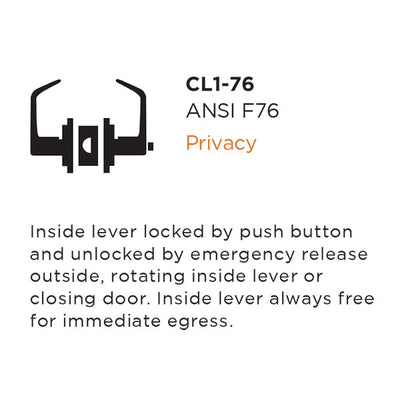

Privacy Function, ANSI F76 – Inside lever locked by pushbutton and unlocked by emergency release outside, rotating inside lever or closing door. Inside lever always free for immediate egress.

Code Compliance

  • Meets ANSI/BHMA A156.2, Series 4000, Grade 1 standards, exceeds 1,000,000 cycles
  • UL listed for “A” label 3 hour fire-rated doors
  • Meets ADA and ANSI A117.1 accessibility codes
  • Meets California code for 1/2" lever return to door face
trudoor-certs

Cross Reference


The CL1-75 can be specified as a substitute for: Accentra/Yale 5402LN / 4702LN, Arrow QL02 / GL02, Cal-Royal CGN20 / CAL20, Corbin Russwin CL3320, Design Hardware Z-76-F, Dorma C140 / C840, Falcon K301 / T301, Hager 3440, Marks 195L, PDQ GT176, Sargent 10U65 / 10XU65, Schlage ND40,  Stanley QCL140
