Schlage

Schlage B571 One-Sided Deadbolt with Occupancy Indicator

$0.00
Usually Ships:  1-2 Business Days
  • Discontinued June 2024 - available while supplies last
  • Replaced by Schlage B572
  • See the Trudoor DL2-IND model for a similar design

Available Options:

Clear

Product Overview

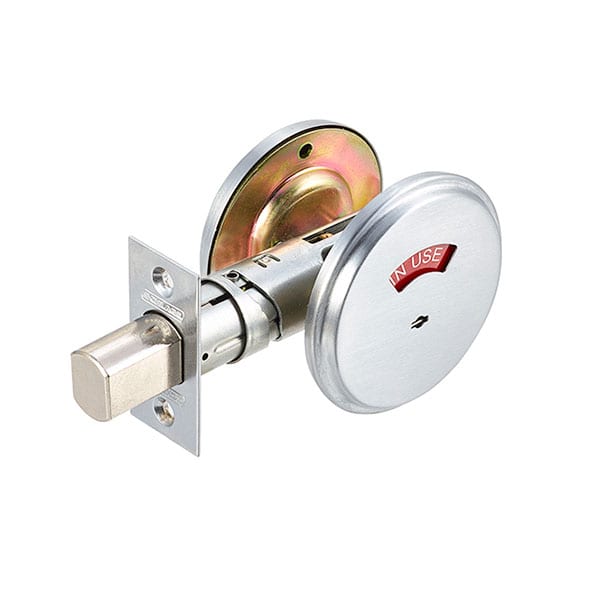

Schlage B571 Door Bolt Occupancy Indicator, Adjustable 2-3/8" and 2-3/4" Backset

The Schlage B571 is perfect for commercial restroom doors.

  • Deadbolt thrown or retracted by thumbturn inside

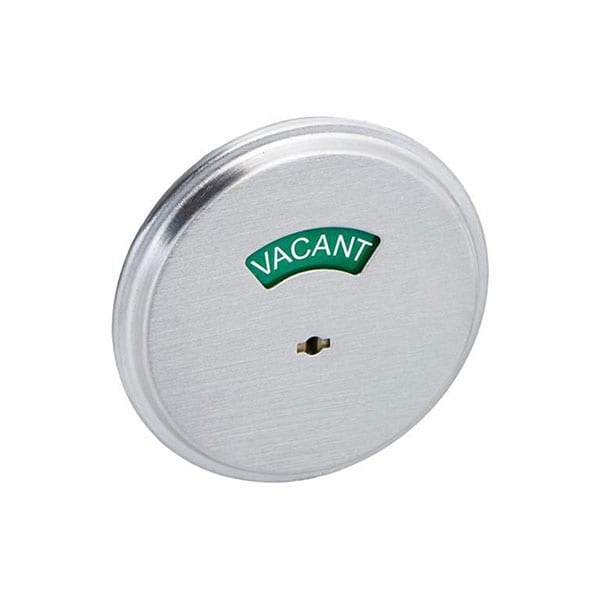

  • Outside indicator displays “In use” or “Vacant”
  • Not UL rated
  • ADA compliant thumbturn
  • 61-509 Emergency key included
ANSI Grade

ANSI Grade 2
ANSI/BHMA Standard

ANSI A156.36 Grade 2
Backset

2-3/8" to 2-3/4" Adjustable
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Schlage
Deadbolt Type

Indicator
Door Thickness

1-3/8" to 1-3/4"
Finish

Aged BronzeSatin BrassSatin ChromeSatin BronzeBlackOil Rubbed BronzeSatin NickelBright ChromeBright BrassAntique Brass
Finishes

609 Antique Brass625 Bright Chrome622 Matte Black626 Satin Chrome619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass643e Aged Bronze612 Satin Bronze605 Bright Brass
Strike

1-1/8” x 2-3/4“ square corner
Usage

Medium Duty
