Schlage

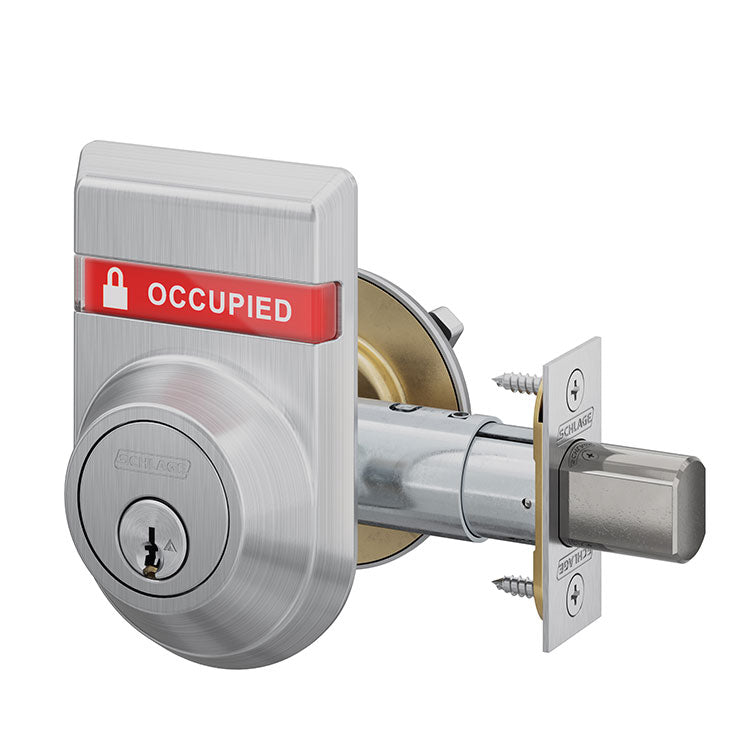

Schlage B560P Single Cylinder Deadbolt with OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator

$117.91
Usually Ships:  1-2 Business Days
  • Key cylinder and occupancy indicator outside x inside turn
  • Outside indicator displays “Occupied” or “Vacant”
  • ADA compliant thumbturn

Available Options:

Clear

Product Overview

Schlage B560P Grade-2 Single Cylinder Deadbolt OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim, Adjustable 2-3/8" and 2-3/4" Backset, C Keyway

Top-selling Schlage Grade 2 B Series deadbolts rival many competitive Grade 1 products for strength, durability, and versatility. These mid-price point deadbolts are offered in 10 finishes. Their design includes anti-saw, anti-pry, anti-wrench, and other security features not common to Grade 2 deadbolts. They are easy to install and can meet any security need.

ANSI E0152 - Key cylinder outside; thumbturn inside • Deadbolt thrown or retracted by key outside or thumbturn inside • When installed with lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

  • Outside indicator displays “Occupied” or “Vacant”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • 2-3/8″ to 2-3/4″ Adjustable Backset (1-1/8″ x 2-1/4″ latch face)
  • Quick, easy installation – Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Primary or auxiliary locking for commercial buildings
  • High security locking for residential buildings
  • Can be suited with virtually all Schlage levers and knobs
  • Can be installed using the same standard door prep as any B Series lock
  • 3-year limited mechanical warranty
ANSI Function

E0152
ANSI/BHMA Standard

ANSI A156.36 Grade 2
Backset

2-3/8" to 2-3/4" Adjustable
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

5-pin or 6-pin conventional keyed different with 2 keys
Deadbolt Type

Single CylinderIndicator
Door Thickness

1-3/4" to 1-7/8”
Finish

Satin NickelBlackOil Rubbed BronzeAged BronzeBright ChromeBright BrassSatin Chrome AM (Antimicrobial)Satin BronzeSatin BrassSatin Chrome
Finishes

626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome609 Antique Brass619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass
Fire Rating

None
Keyway

Schlage C Keyway
Strike

1-1/8” x 2-3/4“ square corner
Usage

Medium Duty
