Product Overview

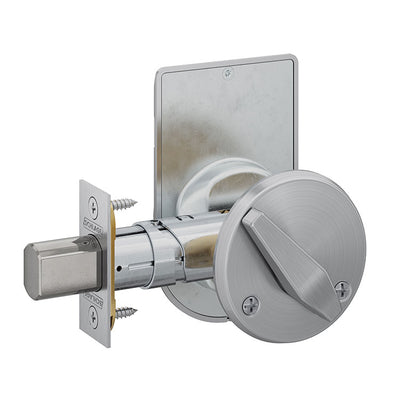

Schlage B572 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim, Adjustable 2-3/8" and 2-3/4" Backset

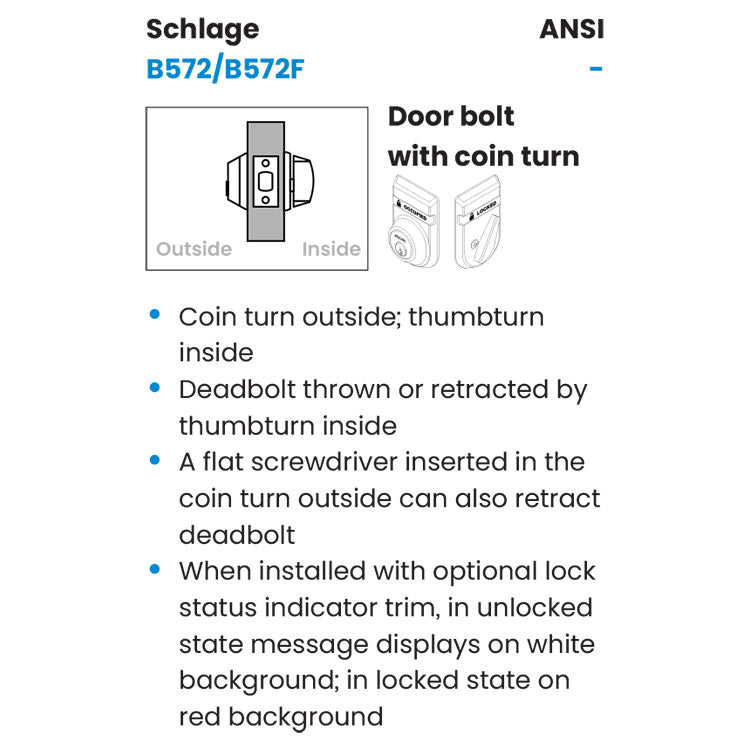

Coin turn outside; thumbturn inside • Deadbolt thrown or retracted by thumbturn inside • A flat screwdriver inserted in the coin turn outside can also retract deadbolt • When installed with lock status indicator trim, in unlocked state message displays on white background; in locked state on red background
- Perfect for commercial restroom doors

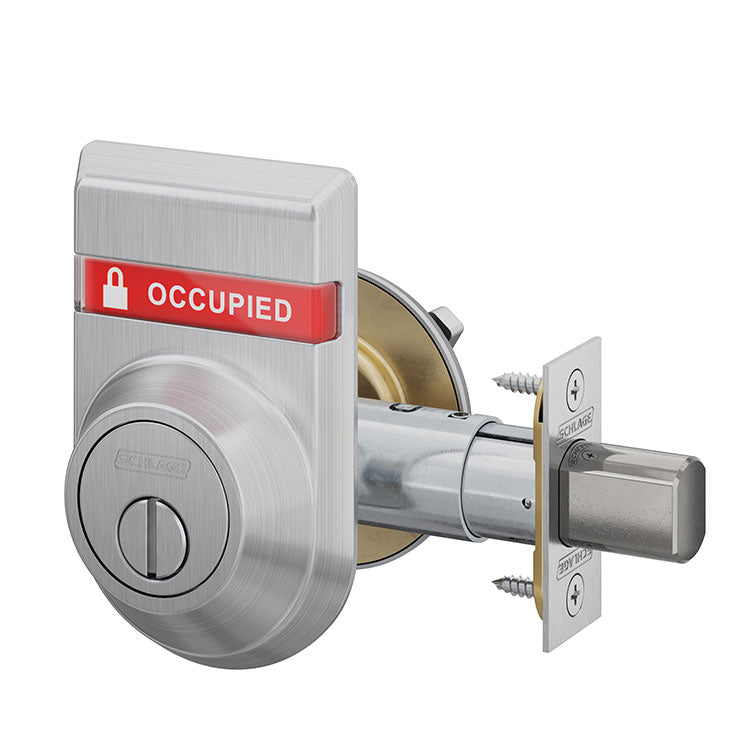

- Outside indicator displays “Occupied” or “Vacant”
- Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
- ADA compliant thumbturn
- Adjustable for 2-3/8" or 2-3/4" backset
- Can be installed using the same standard door prep as any B Series lock
- 3-year limited mechanical warranty
| ANSI Grade |
ANSI Grade 2 |
|---|---|
| ANSI/BHMA Standard |
ANSI A156.36 Grade 2 |
| Backset |
2-3/8" to 2-3/4" Adjustable |
| Bolt |
1" throw bolt 1-1/8" x 2-1/4" square corner face plate |
| Brand |
Schlage |
| Deadbolt Type |
Indicator |
| Door Thickness |
1-3/4" to 1-7/8” |
| Finish |
Aged BronzeSatin BrassSatin ChromeOil Rubbed BronzeSatin Chrome AM (Antimicrobial)Satin BronzeBlackSatin NickelBright ChromeBright Brass |
| Finishes |
625 Bright Chrome622 Matte Black626 Satin Chrome609 Antique Brass619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass |
| Fire Rating |
None |
| Strike |
1-1/8” x 2-3/4“ square corner |
| Usage |
Medium Duty |
