Schlage

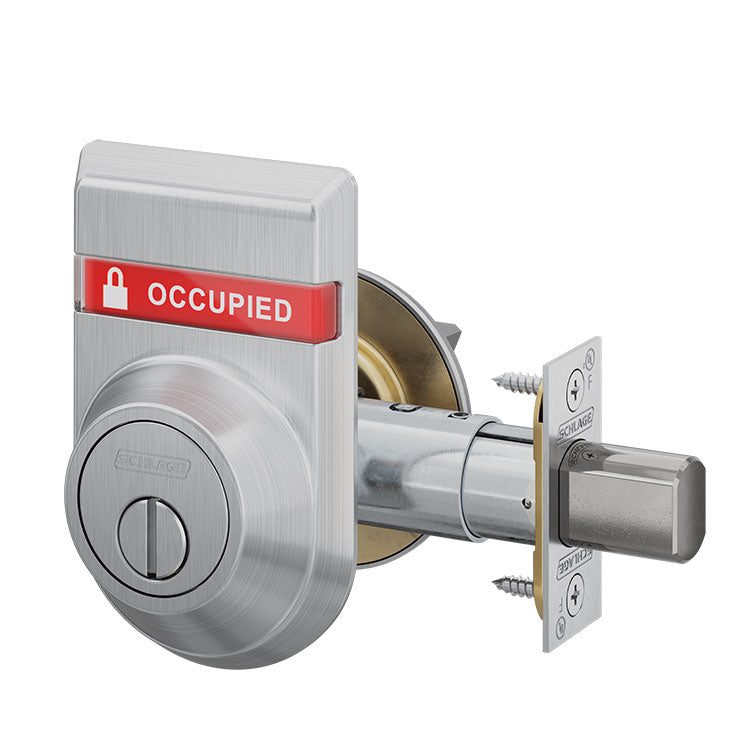

Schlage B672 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator

$210.97
Usually Ships:  1-2 Business Days
  • Ideal for commercial restroom doors
  • Door bolt occupancy indicator x inside turn
  • ADA compliant thumbturn

Available Options:

Clear

Product Overview

Schlage B672 Grade-1 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim, 2-3/4" Backset

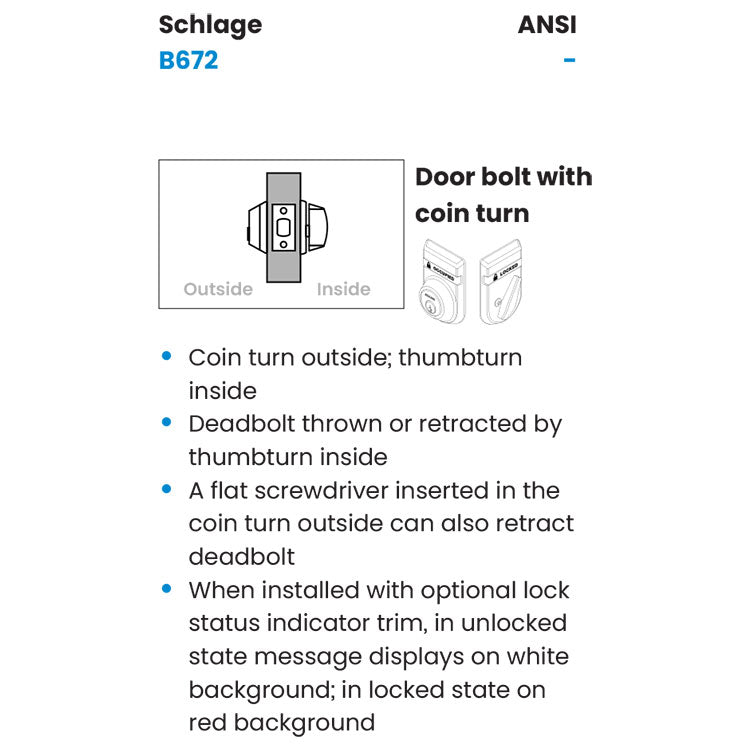

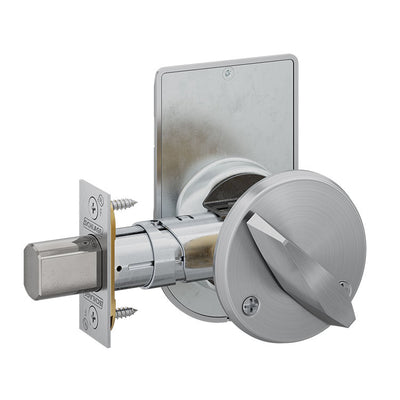

Coin turn outside; thumbturn inside • Deadbolt thrown or retracted by thumbturn inside • A flat screwdriver inserted in the coin turn outside can also retract deadbolt • When installed with optional lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

  • The only OEM Grade 1, keyed deadbolt indication option
  • Outside indicator displays “Occupied” or “Vacant”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • Can be suited with virtually all Schlage levers and knobs
  • ANSI/BHMA A156.36-2020, Grade 1
  • UL listed, fire-rated up to 3 hours
  • 3-year limited mechanical warranty
ANSI/BHMA Standard

ANSI/BHMA A156.36-2020 Grade 1
Backset

2-3/4"
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Schlage
Buy American Act Compliance

Meets BAA - Buy American Act
Deadbolt Type

Indicator
Door Thickness

1-3/4" to 1-7/8”
Finish

Aged BronzeSatin BrassSatin ChromeSatin Chrome AM (Antimicrobial)Satin BronzeBlackSatin NickelBright ChromeBright BrassOil Rubbed Bronze
Finishes

625 Bright Chrome622 Matte Black626 Satin Chrome609 Antique Brass619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass
Fire Rating

UL 10C listed for 3-hour fire door
Strike

1-1/8” x 2-3/4“ square corner
Usage

Heavy Duty
