Pemko

Pemko 2005_T Latching Panic Saddle Threshold with ThermoSeal Insert - 5" Wide x 1/2" High

$45.96
Usually Ships:  1-2 Business Days
  • 5"Wide x 1/2"High
  • ADA compliant and fire-rated
  • ThermoSeal insert helps with acoustic performance

Available Options:

Clear

Product Overview

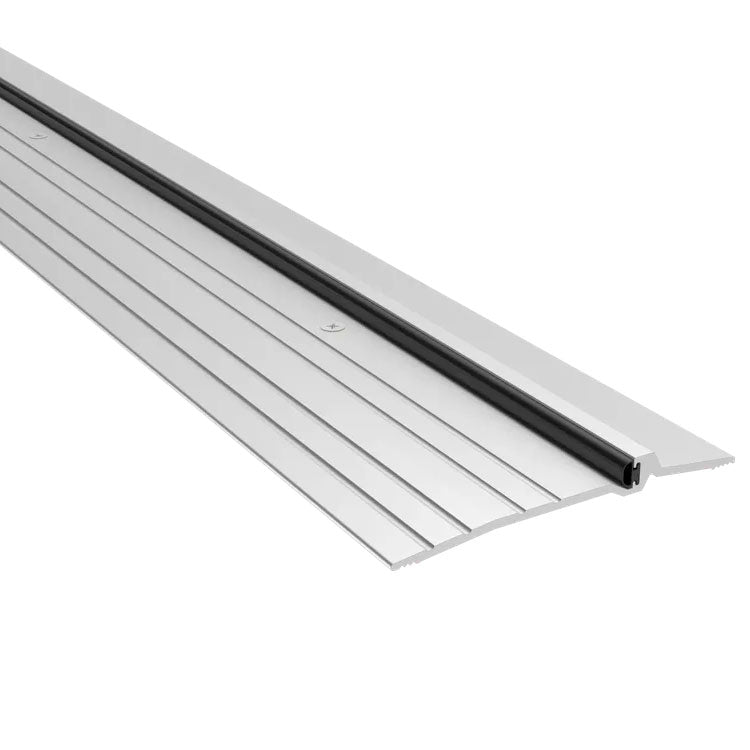

Pemko 2005_T Latching Panic Saddle Threshold with ThermoSeal Insert

The 2005 Series Latching Panic Saddle Threshold has a 5" width and allows for a 3/8" door clearance. It's designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket ThermoSeal (T). This threshold is sound air infiltration tested, fire rated, and BHMA certified.

  • ThermoSeal insert helps with acoustic performance
  • Allow 3/8" Door Clearance
  • Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
  • TYPE: Latching Panic Exit Threshold
  • MATERIAL:6063-T6 Aluminum Alloy and Temper Retainer

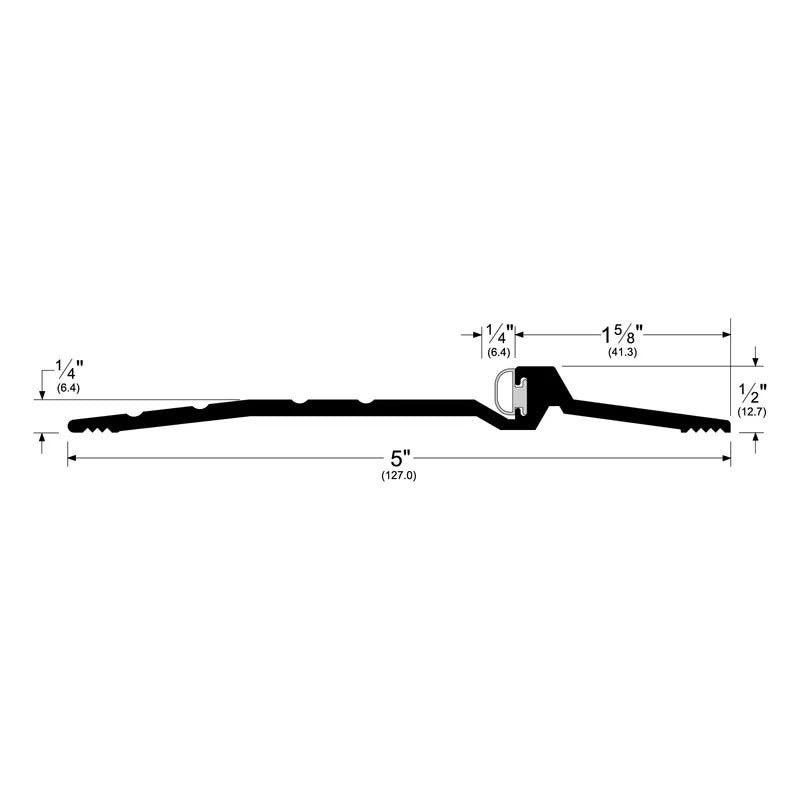

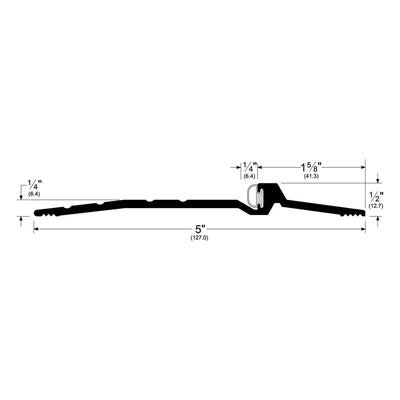

  • WIDTH: 5” (127.0 mm)
  • HEIGHT: 1/2” (12.7 mm)
  • LENGTHS: 36", 48", 72" and 96"

Finishes

  • 2005AT: A - Mill Finish Aluminum Aluminum with Black Thermo Seal insert
  • 2005BSPT: BSP - Black Suede Powder Coat with Black Thermo Seal insert
  • 2005DT: D - Dark Bronze Anodized Aluminum with Black Thermo Seal insert

Ratings

  •  Air Infiltration Tested
  •  Sound Tested - ASTM E90
  •  Barrier-Free
  •  BHMA Certified
  •  Fire Rated - UL10C - Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

ANSI/BHMA Standard

ANSI/BHMA A156.2
Brand

Pemko
Finish

Dark BronzeBlackAluminum
Finishes

A - Mill Finish AluminumD - Dark Bronze Anodized AluminumBSP Black Suede Powder Coat
Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
Height

1/2"
Length

72"96"48"36"
Width

5"
