Pemko

Pemko 271 Saddle Threshold - 5" Wide x 1/4" High

$37.26
Usually Ships:  1-2 Business Days
  • 5″ Wide x 1/4″ High
  • Barrier-Free, ADA Compliant
  • Fire-Rated up to 3 Hours

Available Options:

Clear

Product Overview

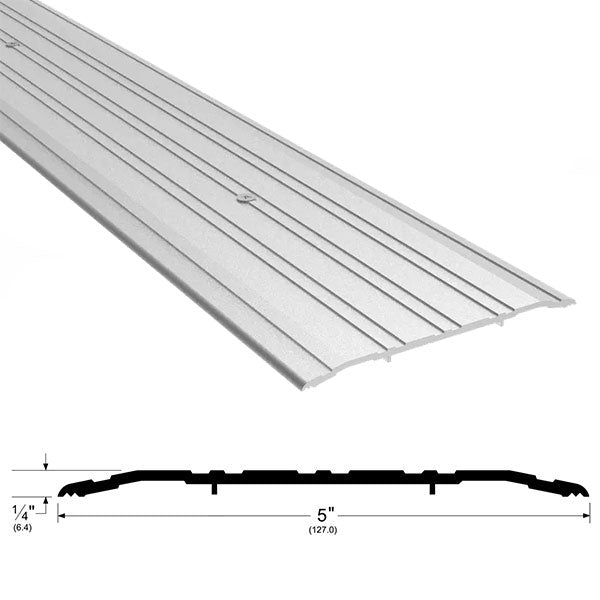

Pemko 271 Flat Saddle Threshold

The 271 Flat Saddle Threshold measuring 1/4" high x 5" high that designed to span a given area, usually under a door. The threshold is barrier-free, BHMA certified, fire rated, and has been tested by Underwriters Laboratory.

Saddle thresholds are symmetrically shaped and designed to seal the area under a door while creating a more finished look for commercial applications.

  • WIDTH: 5” (127.0 mm)
  • HEIGHT: 1/4” (6.4 mm)
  • LENGTHS: 36", 48", 72" and *96"

*excessive length shipping fee applies

Finishes

  • 271A: A - Mill Finish Aluminum
  • 271B: B - Mill Finish Extruded Bronze (Brass)
  • 271BSP: BSP - Black Suede Powder Coat
  • 271D: D - Dark Bronze Anodized Aluminum
  • 271G: G - Gold Anodized Aluminum

Ratings

  • Barrier-Free (ADA): Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 - Overall height is no greater than 1/2"
  • BHMA Certified: Tested for performance with regards to the requirements in ANSI/BHMA A156.21 – Thresholds
  • Fire Rated: Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies

pemko-ratings-threshold

ANSI/BHMA Standard

ANSI/BHMA A156.21
Brand

Pemko
Finish

Dark BronzeBlackAluminumMill Finish Extruded Bronze (Brass)Gold
Finishes

D – Dark Bronze Anodized AluminumB - Mill Finish Extruded Bronze (Brass)G - Gold Anodized AluminumBSP Black Suede Powder CoatA - Mill Finish Aluminum
Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
Height

1/4"
Length

72"96"48"36"
Width

5"
