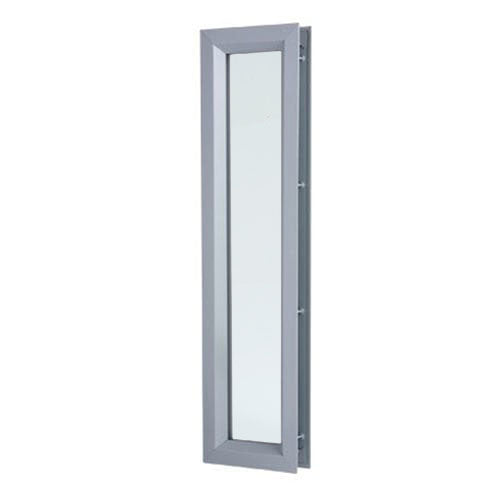

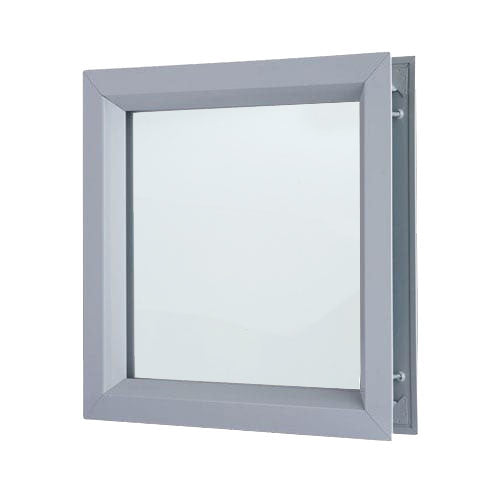

Rockwood LT-B1 Vision Lite Kit Pack with 1/4″ Clear Tempered Safety Glass

$131.63
Usually Ships:  3-5 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes clear impact-rated safety glass
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

LT-B1 TEMP Complete Lite Kit Pack - Beveled Lite Frame, 1/4" Clear Tempered Glass, and Glazing Tape - for 1-3/4" thick doors, galvannealed steel frame

The lite kits install without drilling holes through the door for quick installation. The hemmed design is a flush-mounted assembly and is ideal for clean environments.

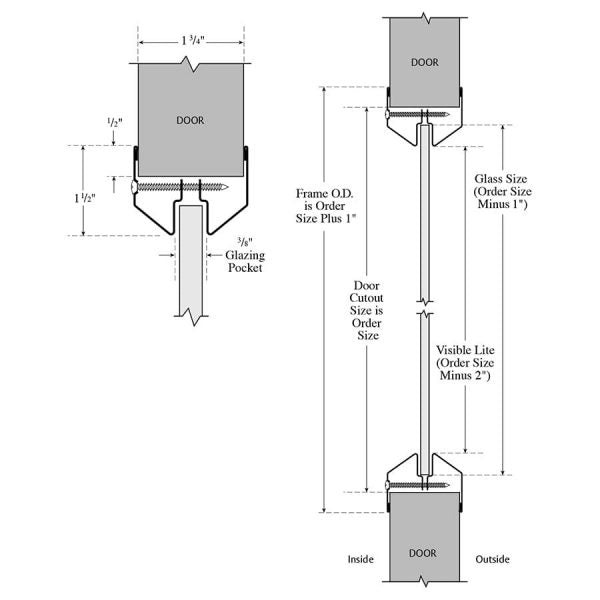

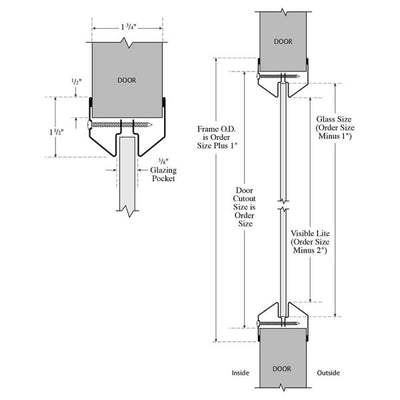

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Includes 1/4″ thick clear tempered CAT II impact-rated glass (heat-treated safety glass that breaks into small particles)
  • Includes glazing tape
  • 20 gauge galvannealed steel frame

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Rockwood
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

BlackDark BronzeGrayWhiteBeige
Finishes

Gray Primer Powder CoatWSP White Suede Powder CoatBeige Powder CoatBSP Black Suede Powder CoatDark Bronze Duranodic Powder Coat
Fire Rating

None
Frame Construction

20 Gauge Galvannealed Steel
Frame Fasteners

#8 x 1-3/4" Phillips head SMS
Frame Material

Galvannealed Steel
Glass Appearance

Clear
Glass Approvals

ANSI Z97.1 Class A; and CPSC 16 CFR 1201 Category II
Glass Light Transmission

Approx. 86%
Glass Thickness

1/4"
Glass Type

Clear Tempered Glass
Order Size

5" x 35"24" x 34"24" x 60"24" x 30"7" x 22"24" x 36"24" x 24"6" x 27"12" x 12"24" x 32"8" x 32"
Classification (Fire-Rating)

None
