Product Overview

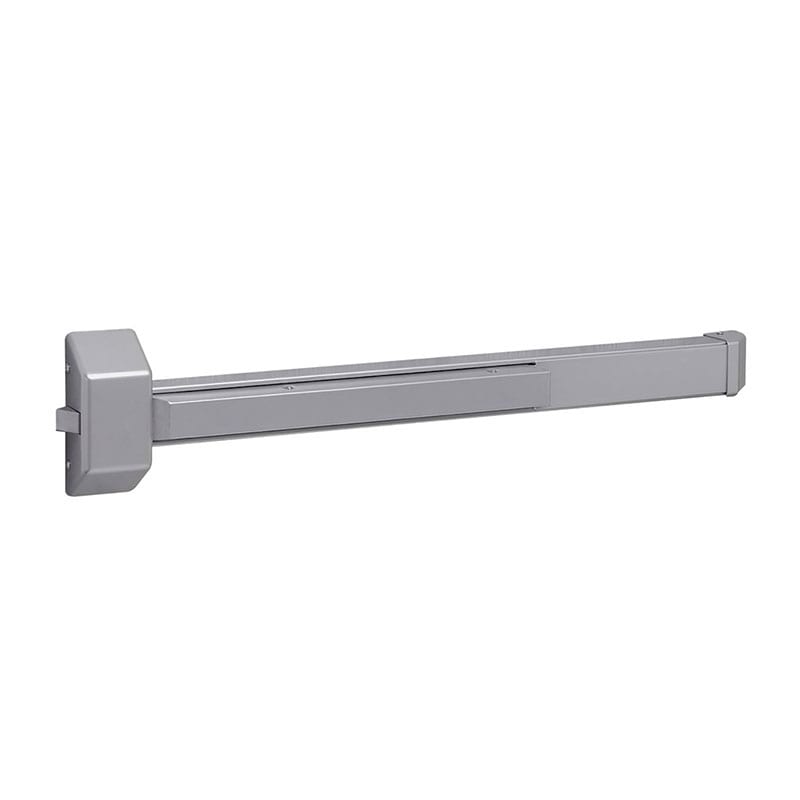

Sargent 3828 Grade-1 Panic Rim Exit Device
The 3828 Series supports both single and double door applications and is ideal for warehouses.
- Exit Only (outside trim sold separately)
- Steel end caps and covers provided added durability
- 7 functions determined by trim selected
- Device & trim sold separately; easy to mix and match
- Meets ANSI A156.3 Grade 1
- UL panic listed
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 - Grade 1 |
|---|---|
| Brand |
Sargent |
| Dogging Feature |
Half turn hex dogging standard |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Finish |
AluminumDark Bronze |
| Finishes |
EN/689 Sprayed Aluminum EnamelEB/690 Sprayed Bronze Enamel |
| Fire Rating |
Non-Fire-Rated |
| Handing |
Non Handed – Completely Reversible |
| Latchbolt |
Stainless steel 3/4” throw |
| Length |
F - 36" (for 33" to 36" Doors)E - 32" (24" to 32" Doors)G - 48" (for 43" to 48" Doors) |
| Stile Type |
Wide (Standard) |
| Strike |
649 Strike supplied standard |
| Usage |
Medium Duty |
