Product Overview

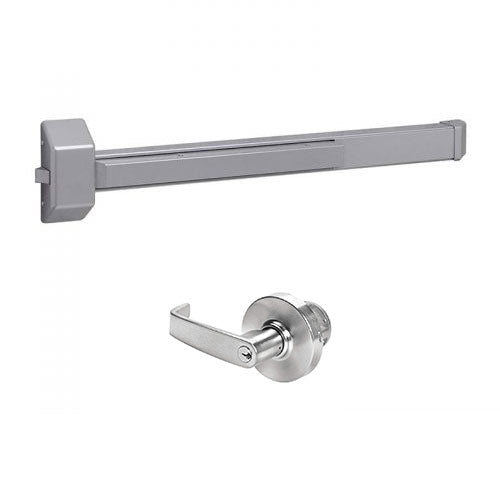

Sargent 3828/12-3828 Grade-1 Panic Rim Exit Device, 28-C-LL Lever Trim, Entrance/Classroom Function
The 3828 Series supports both single and double door applications and is ideal for warehouses.
- Includes 28-C-LL lever trim
- Sargent function 13: Key in lever locks or unlocks lever
- Lever trim gets through-bolted to the exit device
- Steel end caps and covers provided added durability
- Meets ANSI A156.3 Grade 1
- UL panic listed
- 12- Option = Fire-rated

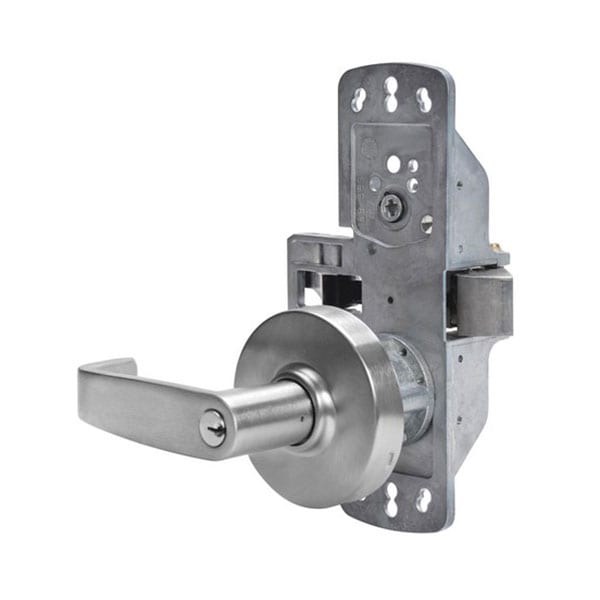

28-C-LL Trim
- ANSI Function: 08 – Entrance by lever. Key locks or unlocks lever.
- L lever design
- L rose design
- LA Keyway
- Architectural finishes (26D with EN device, 10B with EB device)
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 - Grade 1 |
|---|---|
| Brand |
Sargent |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Finish |
Dark BronzeAluminum |
| Finishes |
EB/690 Sprayed Bronze EnamelEN/689 Sprayed Aluminum Enamel |
| Fire-Rated |
Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging) |
| Fire Rating |
Fire-Rated up to 3 Hours |
| Handing |
Non Handed – Completely Reversible |
| Keyway |
Sargent LA Keyway |
| Latchbolt |
Stainless steel 3/4” throw |
| Length |
F - 36" (for 33" to 36" Doors)E - 32" (24" to 32" Doors)G - 48" (for 43" to 48" Doors) |
| Lever Design |
L |
| Stile Type |
Wide (Standard) |
| Strike |
649 Strike supplied standard |
| Usage |
Medium Duty |
