Accentra (Formerly Yale)

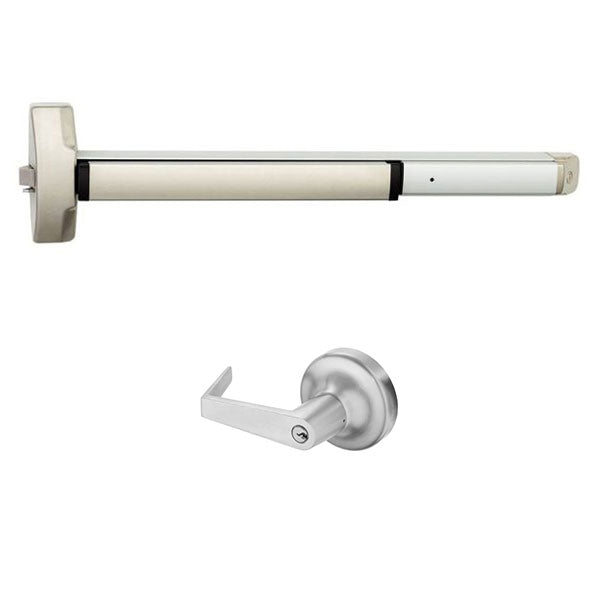

Accentra (Formerly Yale) 6100 x AU446F Panic Rim Exit Device with Classroom Lever Trim

$657.29
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function 08 (classroom)
  • Includes AU-446F lever trim

Available Options:

Clear

Product Overview

Accentra (formerly Yale) 6100/6100F Rim Exit Device, AU-446F Classroom Lever Trim

With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

The 6100ED(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood, or composite materials. Designed for application in high-use areas.

  • ANSI Function 08 (Classroom): Key locks or unlocks lever
  • Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
  • Stylish: Attractive, modern design blends aluminum rail with architectural finishes
  • Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
  • Secure: Multiple security features provide added resistance against vandalism and authorized entry

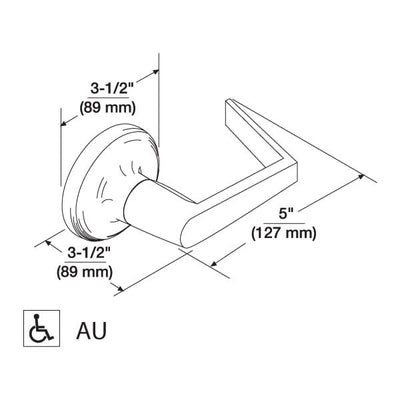

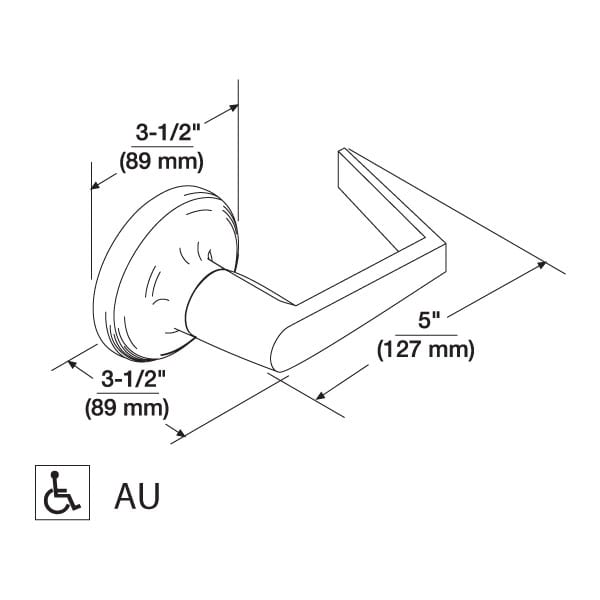

AU-446F Lever Trim

  • ANSI Function: 08
  • 08 Function: Entrance by lever. Key locks or unlocks lever.
  • AU (Augusta) lever design
  • ADA compliant lever
  • Rose trim for stock doors
  • 626 Satin Chrome finish (with 630 Device) or BSP Black Suede Powder Coat
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4" Metal wood or composite doors
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Finish

Stainless SteelBlack
Finishes

BSP Black Suede Powder Coat630 Satin Stainless Steel
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating

UL/cUL Listed for use on fire doors up to 3 hours
Handing

Completely Reversible
Keyway

Schlage C KeywayAccentra/Yale E1R (Para) Keyway
Latchbolt

3/4" deadlocking stainless steel pullman-type
Length

48" (for 42" to 48" Doors)36" (for 30" to 36" Doors)
Lever Design

AU (Augusta)
Minimum Stile Width

4-1/2"
Projections

3-1/4" active 2-1/2" dogged
Stile Type

Wide (Standard)
Strike

757F 793 optional (double door application panic only)
Usage

Heavy Duty
Warranty

10 Years
ACCENTRA-6000-Series-6100F-6150F-6200-6250-Narrow-and-Wide-Stile-Rim-SquareBolt-Installation-Instructions ACCENTRA-440F-Trim-for-1800-2100-and-6000-Series-Wood-and-Metal-Doors-Installation-Instructions How to Install Von Duprin 98/99 Rim Exit Device
