Schlage

Schlage ALX44 SAT (Saturn) Hospital Privacy Lever Lock

$161.12
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • Hosptial Privacy function – push-button locking
  • Outside turn button provides emergency access

Available Options:

Clear

Product Overview

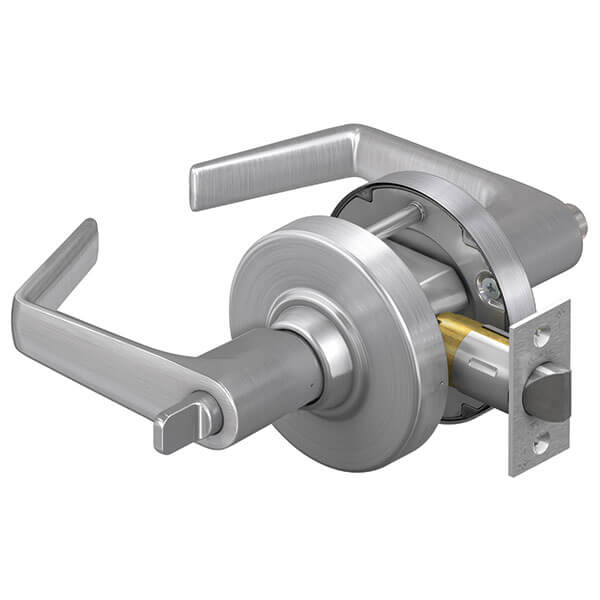

Schlage ALX44 SAT Grade-2 Cylindrical Lever Lock, Hospital Privacy Function, Saturn Lever

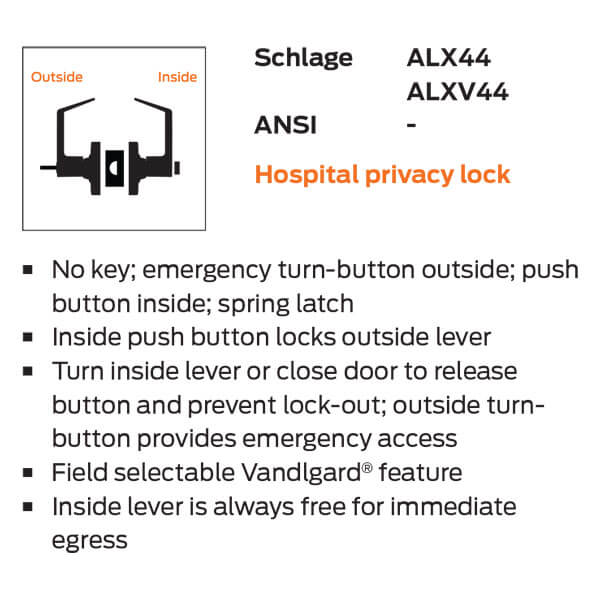

No key; emergency turn-button outside; push-button inside; spring latch. Inside push button locks outside lever. Turn inside lever or close door to release button and prevent lock-out; outside turnbutton provides emergency access. Inside lever is always free for immediate egress.

  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature - Converts to ALXV44
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/4"
Brand

Schlage
Door Thickness

1-3/8" to 1-3/4"
Finish

BlackDark BronzeSatin BronzeBright ChromeBright BrassSatin Chrome AM (Antimicrobial)Satin NickelSatin BrassSatin ChromeAged Bronze
Finishes

626AM Satin Chrome Antimicrobial619 Satin Nickel625 Bright Chrome622 Matte Black626 Satin Chrome643e Aged Bronze613 Oil Rubbed Bronze606 Satin Brass612 Satin Bronze605 Bright Brass
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Latch

1/2" throw - 1-1/8" x 2-1/4" face
Lever Design

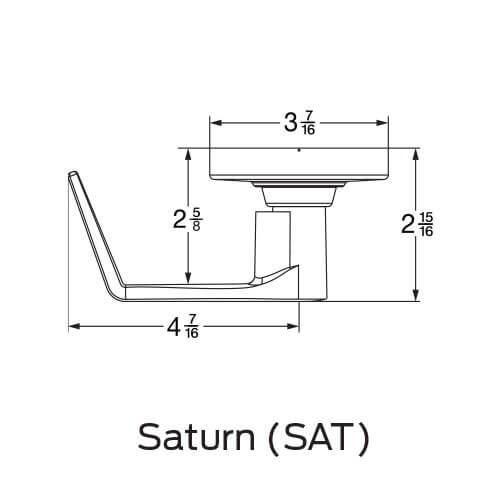

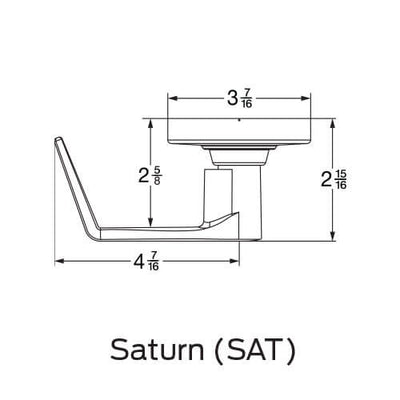

SAT (Saturn)
Lock Function

Hospital Privacy
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
