Schlage

Schlage ALX53P SPA (Sparta) Entrance Lever Lock

$207.54
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ANSI Function F109 – Entrance
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

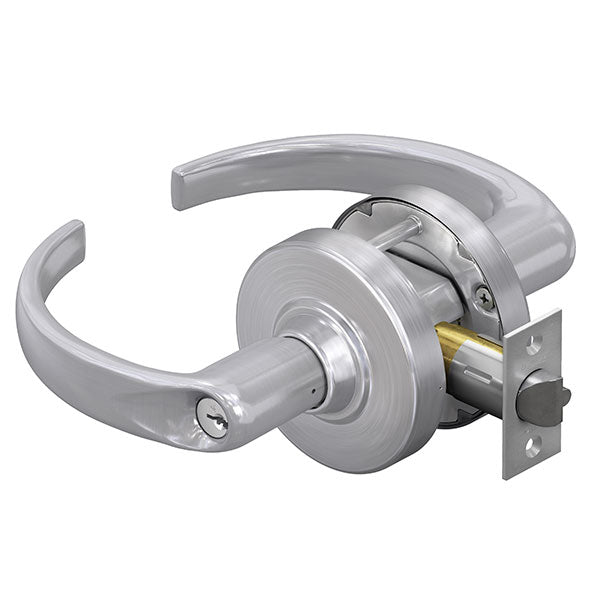

Schlage ALX53P SPA Grade-2 Cylindrical Lever Lock, Entrance Function, Sparta Lever

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

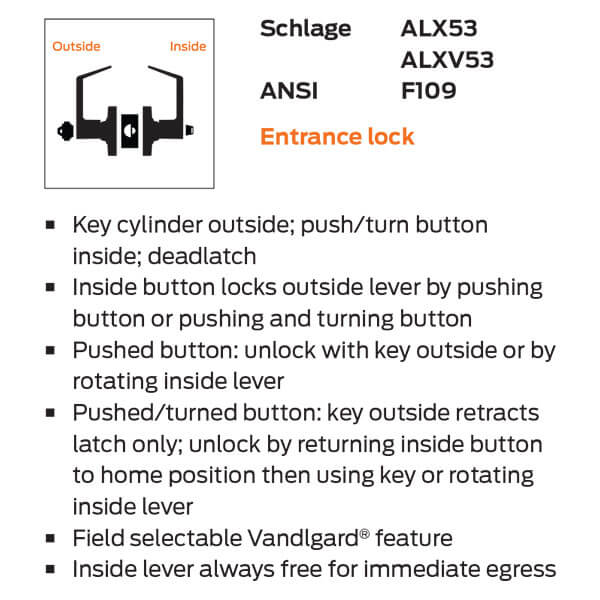

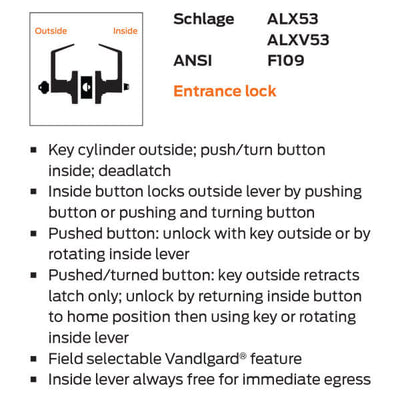

ANSI Function F109 – Key cylinder outside; push/turn button inside; deadlatch. Inside button locks outside lever by pushing button or pushing and turning button. Pushed button: unlock with key outside or by rotating inside lever. Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever. Inside lever always free for immediate egress.

  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature - Converts to ALXV53
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

5-pin or 6-pin conventional keyed different with 2 keys
Door Thickness

1-3/8" to 1-3/4"
Finish

BlackDark BronzeSatin NickelBright ChromeBright BrassAged BronzeSatin BrassSatin ChromeSatin Chrome AM (Antimicrobial)Satin Bronze
Finishes

619 Satin Nickel625 Bright Chrome622 Matte Black626 Satin Chrome626AM Satin Chrome Antimicrobial613 Oil Rubbed Bronze606 Satin Brass643e Aged Bronze612 Satin Bronze605 Bright Brass
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage C KeywaySchlage S123 Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

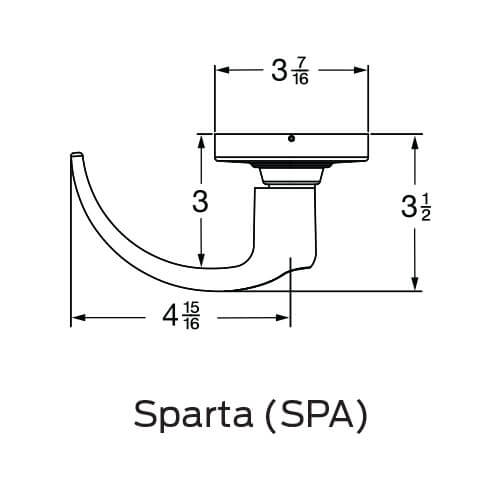

Lever Design

SPA (Sparta)
Lock Function

Entry (Entrance)
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
