Schlage

Schlage ALX40 SPA (Sparta) Privacy Lever Lock

$168.82
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • Bath/Privacy function – push-button locking
  • Ideal for commercial restroom doors

Available Options:

Clear

Product Overview

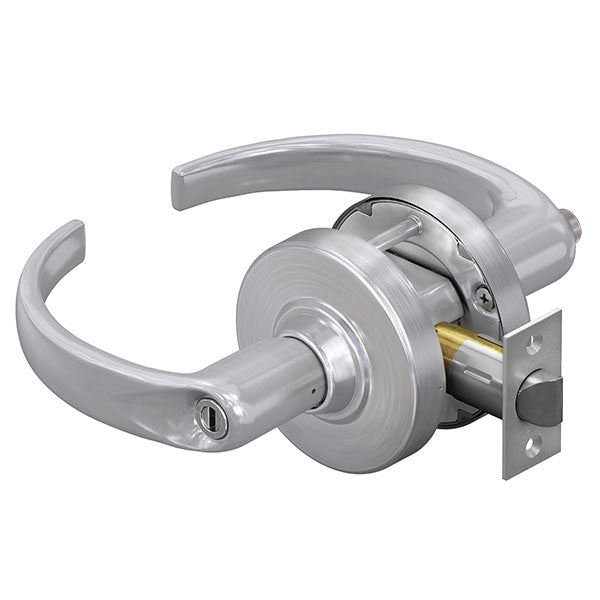

Schlage ALX40 SPA Grade-2 Cylindrical Lever Lock, Bath/Bedroom Privacy Function, Sparta Lever

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

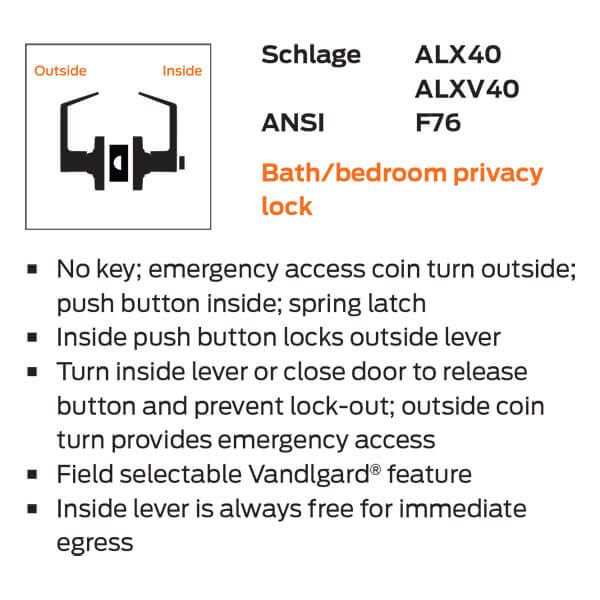

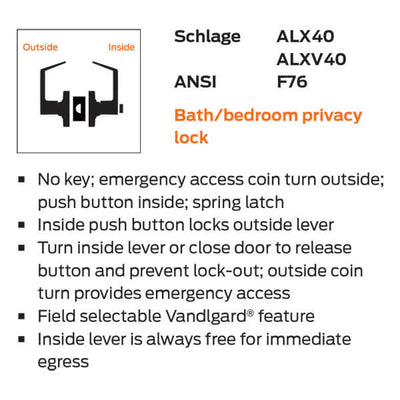

ANSI Function F76 – No key; emergency access coin turn outside; push-button inside; spring latch. Inside push button locks outside lever. Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access. Inside lever is always free for immediate egress.

  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature - Converts to ALXV40
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/4"
Brand

Schlage
Door Thickness

1-3/8" to 1-3/4"
Finish

Bright ChromeBright BrassSatin NickelSatin BrassSatin ChromeSatin Chrome AM (Antimicrobial)Aged BronzeBlackDark BronzeSatin Bronze
Finishes

626AM Satin Chrome Antimicrobial619 Satin Nickel625 Bright Chrome622 Matte Black626 Satin Chrome613 Oil Rubbed Bronze606 Satin Brass643e Aged Bronze612 Satin Bronze605 Bright Brass
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Latch

1/2" throw - 1-1/8" x 2-1/4" face
Lever Design

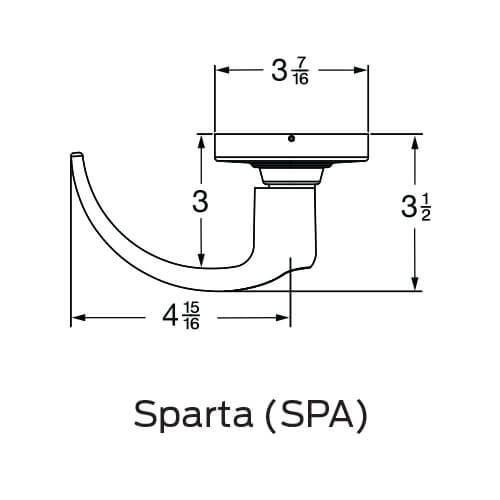

SPA (Sparta)
Lock Function

Privacy
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
