Schlage

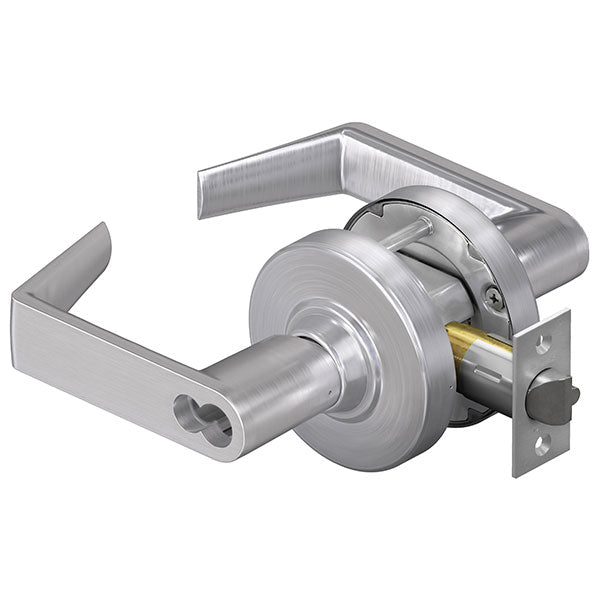

Schlage ALX80B RHO (Rhodes) SFIC Small Format Interchangeable Core Storeroom Lever Lock

$180.67
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • Interchangeable Core (SFIC Core Sold Separately)
  • ANSI Function F86 - Storeroom

Available Options:

Clear

Product Overview

Schlage ALX80B RHO Grade-2 Cylindrical Lever Lock, Storeroom Function, Rhodes Lever, Less Small Format Interchangeable Core

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

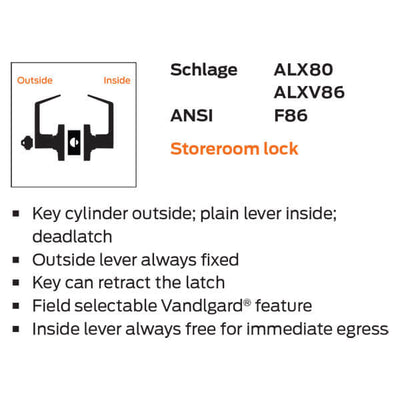

ANSI Function F86 – Key cylinder outside; plain lever inside; deadlatch. Outside lever always fixed. Key can retract the latch. Inside lever always free for immediate egress.

  • SFIC = Small Format Interchangeable Core (Core Sold Separately)
  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature - Converts to ALXV80
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Small Format Interchangeable Core (SFIC)
Door Thickness

1-3/8" to 1-3/4"
Finish

Satin BrassSatin ChromeSatin BronzeBlackDark BronzeSatin Chrome AM (Antimicrobial)Satin NickelBright ChromeBright BrassAged Bronze
Finishes

626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

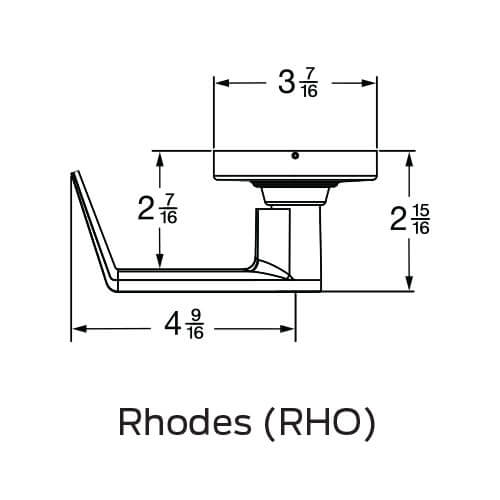

Lever Design

RHO (Rhodes)
Lock Function

Storeroom
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
