Schlage

Schlage ALX50B RHO (Rhodes) SFIC Small Format Interchangeable Core Entrance/Office Lever Lock

$180.67
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • Interchangeable Core (SFIC Core Sold Separately)
  • ANSI Function F82 – Entrance/Office

Available Options:

Clear

Product Overview

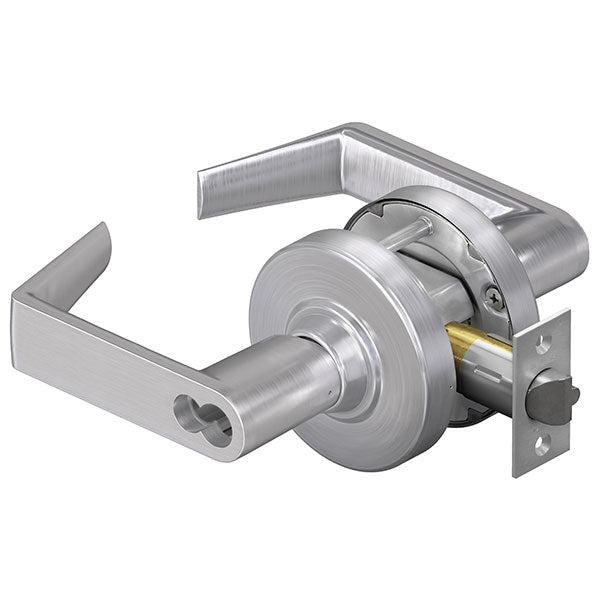

Schlage ALX50B RHO Grade-2 Cylindrical Lever Lock, Entrance/Office Function, Rhodes Lever, Less Small Format Interchangeable Core

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

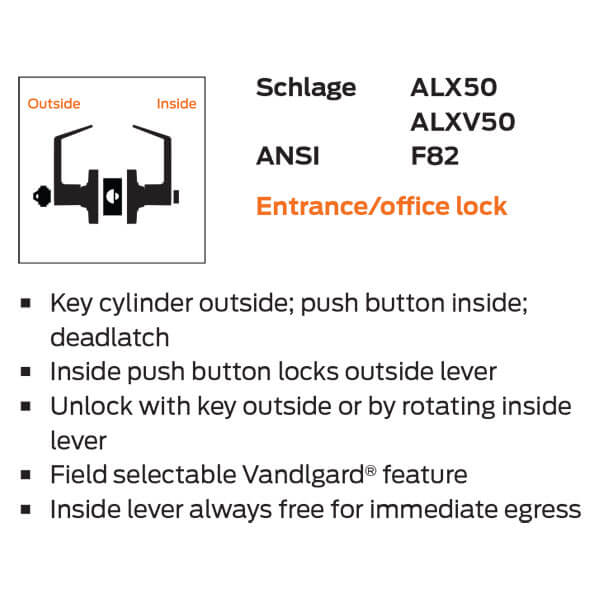

ANSI Function F82 – Key cylinder outside; push-button inside; deadlatch. Inside push button locks outside lever. Unlock with key outside or by rotating inside lever. Inside lever always free for immediate egress.

  • SFIC = Small Format Interchangeable Core (Core Sold Separately)
  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature - Converts to ALXV50
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Small Format Interchangeable Core (SFIC)
Door Thickness

1-3/8" to 1-3/4"
Finish

BlackDark BronzeSatin Chrome AM (Antimicrobial)Satin NickelBright ChromeBright BrassAged BronzeSatin BrassSatin ChromeSatin Bronze
Finishes

625 Bright Chrome622 Matte Black626 Satin Chrome619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

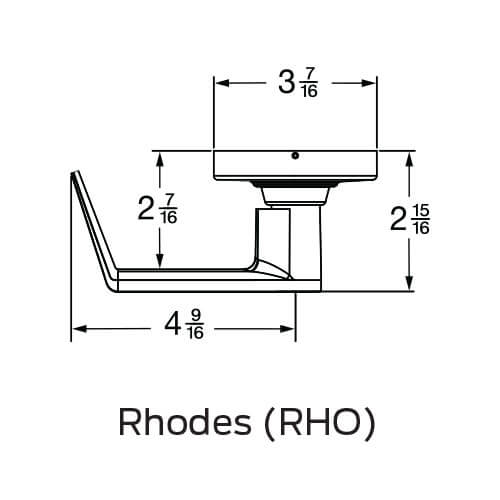

Lever Design

RHO (Rhodes)
Lock Function

OfficeEntry (Entrance)
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
