Schlage

Schlage ND50BD RHO (Rhodes) SFIC Interchangeable Core Entrance/Office Lever Lock

$526.68
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Interchangeable Core (SFIC Core Sold Separately)
  • ANSI Function F82 – Entrance/Office

Available Options:

Clear

Product Overview

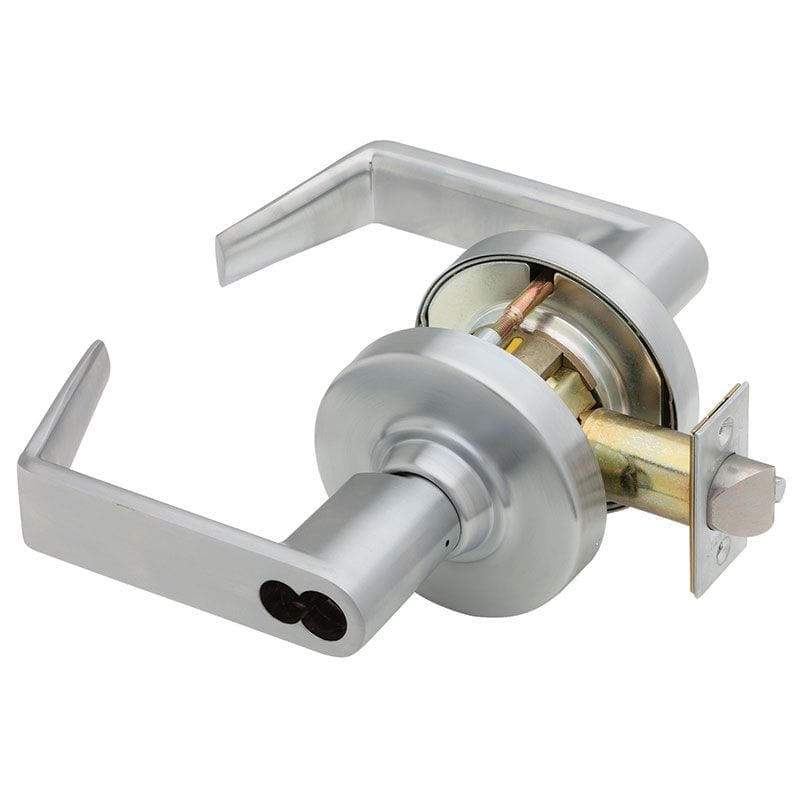

Schlage ND50BD RHO Grade-1 Cylindrical Lever Lock, Entrance/Office Function, Rhodes Lever, Less Small Format Interchangeable Core

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

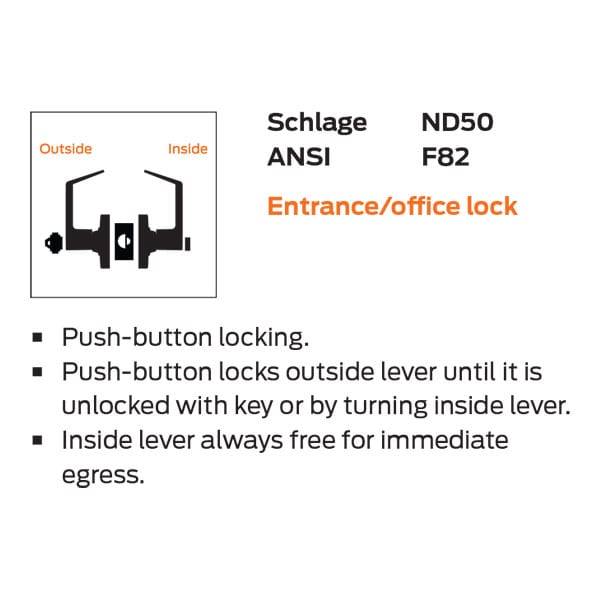

ANSI Function F82 – Push-button locking. Push-button locks outside lever until it is unlocked with key or by turning inside lever. Inside lever always free for immediate egress.

  • SFIC = Small Size Interchangeable Core (sold separately)
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder

Less Interchangeable Core
Cylinder Format

Small Format Interchangeable Core (SFIC)
Door Thickness

1-3/4"
Finish

Satin ChromeSatin BronzeBlackDark BronzeSatin Chrome AM (Antimicrobial)Satin NickelBright ChromeBright BrassAged BronzeSatin Brass
Finishes

626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

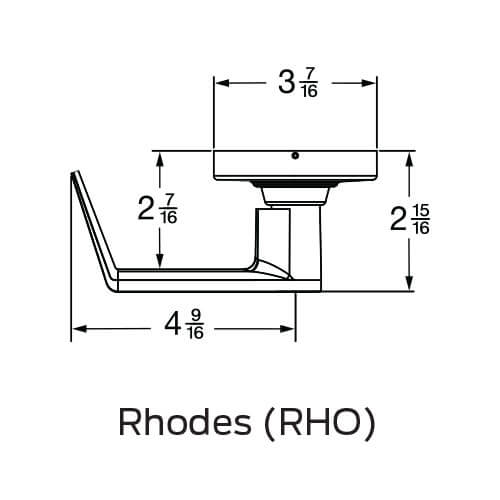

Lever Design

RHO (Rhodes)
Lock Function

Entry (Entrance)Office
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
