Schlage

Schlage ND53BD RHO (Rhodes) SFIC Interchangeable Core Entrance Lever Lock

$526.68
This item ships FREE! Usually Ships:  1-2 Business Days
  • Extra Heavy Duty, ANSI Grade 1 Certified
  • Interchangeable Core (SFIC Core Sold Separately)
  • Entry Function, ANSI Function F109

Available Options:

Clear

Product Overview

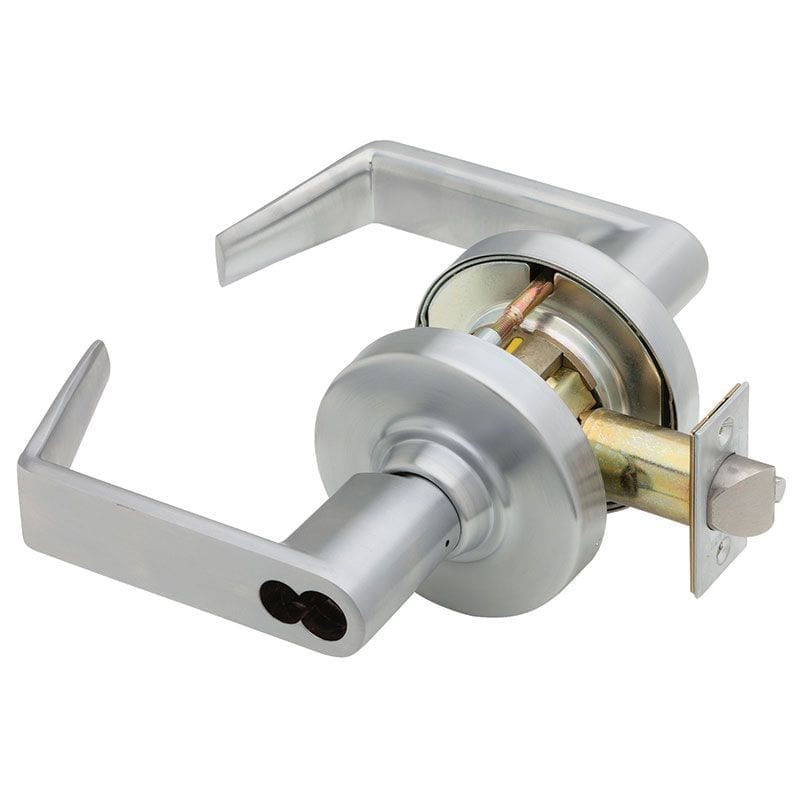

Schlage ND53BD RHO Grade-1 Cylindrical Lever Lock, Entrance Function, Rhodes Lever, Less Small Format Interchangeable Core

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

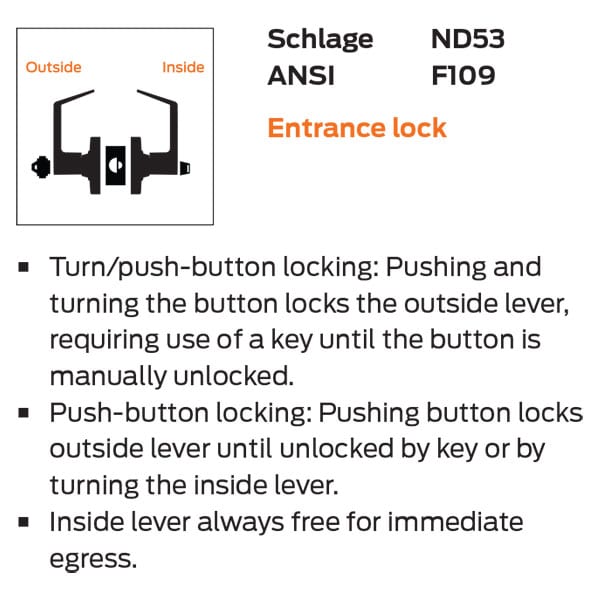

ANSI Function F109 - Turn/push-button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push-button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

  • SFIC = Small Size Interchangeable Core (sold separately)
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever buil

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder

Less Interchangeable Core
Cylinder Format

Small Format Interchangeable Core (SFIC)
Door Thickness

1-3/4"
Finish

Bright BrassAged BronzeSatin BrassSatin ChromeSatin BronzeBlackDark BronzeSatin Chrome AM (Antimicrobial)Satin NickelBright Chrome
Finishes

619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

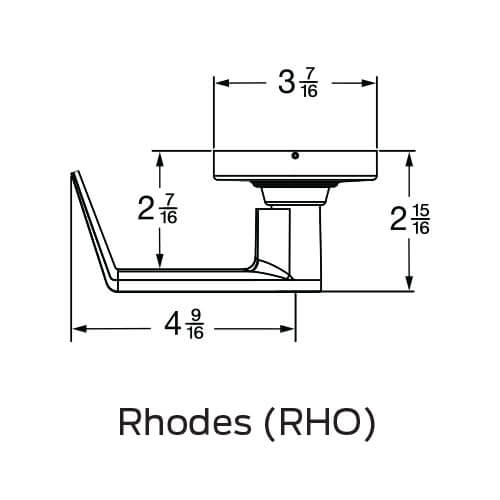

Lever Design

RHO (Rhodes)
Lock Function

Entry (Entrance)
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Schlage_ND_Series_Standard_Installation_Instructions_111531_manf_after_1-31-2017 How to Install Von Duprin 98/99 Rim Exit Device
