Schlage ND53JD RHO (Rhodes) FSIC Interchangeable Core Entrance Lever Lock

$526.68
This item ships FREE! Usually Ships:  1-2 Business Days
  • Extra Heavy Duty - ANSI Grade 1 Certified
  • Prepped for Interchangeable Core (FSIC Core Sold Separately)
  • ANSI Function F109, Entry

Available Options:

Clear

Product Overview

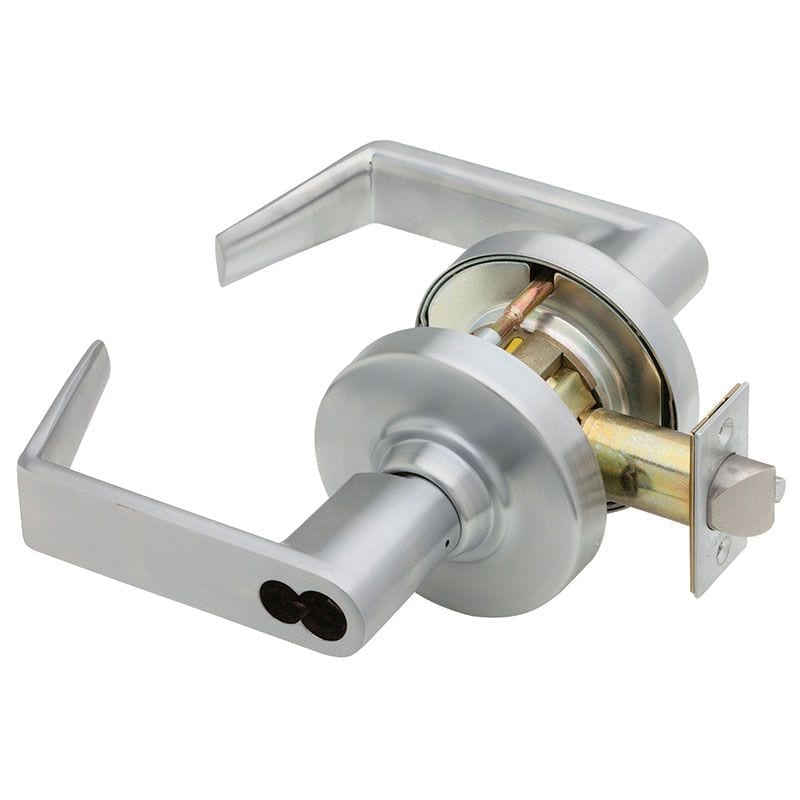

Schlage ND53JD RHO Grade-1 Cylindrical Lever Lock, Entrance Function, Rhodes Lever, Less Full Size Interchangeable Core

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

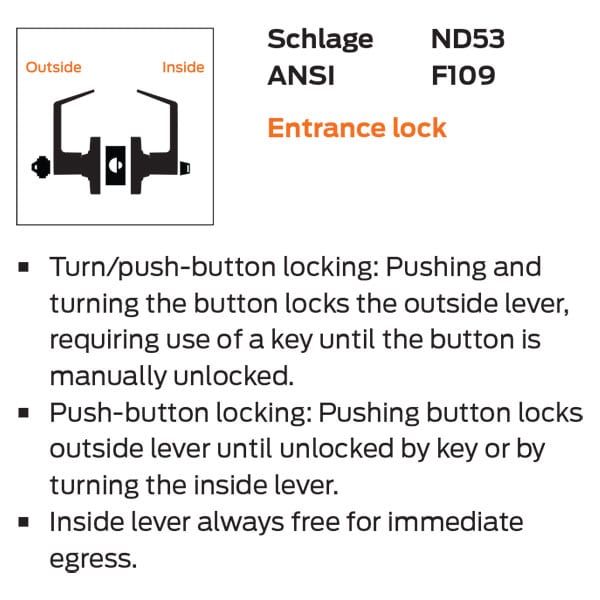

ANSI Function F109 - Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

23-030 Full Size Interchangeable Core Sold Separately

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder

Less Interchangeable Core
Cylinder Format

Full Size Interchangeable Core (FSIC)
Door Thickness

1-3/4"
Finish

Bright BrassAged BronzeSatin BrassSatin ChromeSatin BronzeBlackDark BronzeSatin Chrome AM (Antimicrobial)Satin NickelBright Chrome
Finishes

619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design

RHO (Rhodes)
Lock Function

Entry (Entrance)
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
