Schlage

Schlage B660J Single Cylinder Deadbolt, Less Full Size Interchangeable Core

$138.19
Usually Ships:  1-2 Business Days
  • ANSI Function E0151
  • Single Cylinder x Inside Turn
  • For Full Size Interchangeable Core Cylinder (Less Core)

Available Options:

Clear

Product Overview

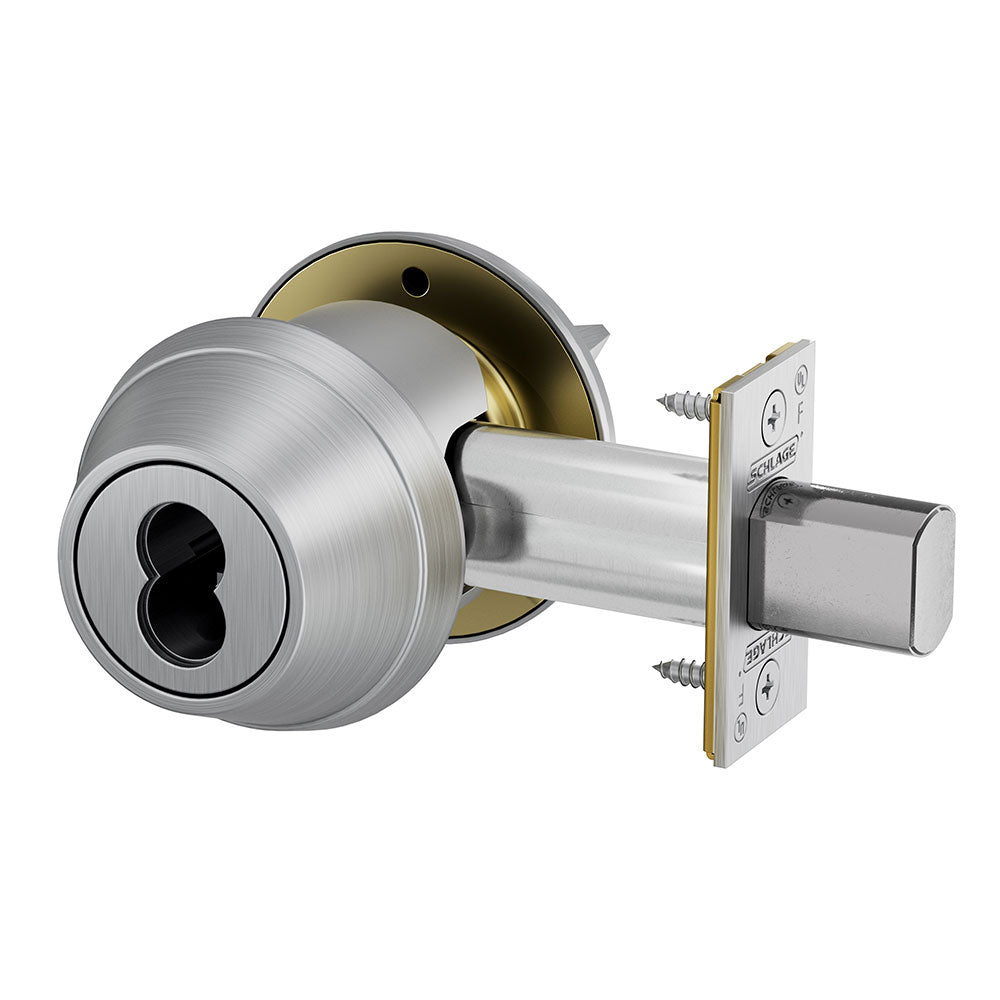

Schlage B660J Single Cylinder Deadbolt, 2-3/4" Backset, FSIC Prep, Less Core

Schlage’s toughest and highest grade heavy-duty Grade 1 commercial deadbolt. Choose the B660 for Grade 1 security in high-traffic commercial applications.

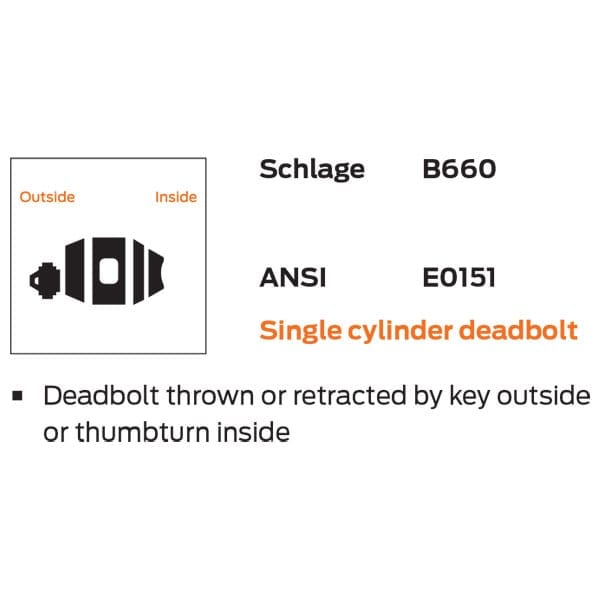

ANSI Function E0151: Deadbolt thrown or retracted by key outside or thumbturn inside

  • 1" throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
  • Metal shield protects bolt from ice-pick attack through the door
  • Hardened steel ball-bearings protect mounting bolts from drill attack

23-030 Full Size Interchangeable Core Sold Separately

ANSI Function

E0151
ANSI/BHMA Standard

ANSI A156.36 Grade 1. When installed with FSIC cylinder Grade 2; SFIC cylinder Grade 3.
Backset

2-3/4"
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Schlage
Cylinder

Less Interchangeable Core
Cylinder Format

Full Size Interchangeable Core (FSIC)
Deadbolt Type

Single Cylinder
Door Thickness

1-3/4" to 2"
Finish

Satin BrassSatin ChromeSatin BronzeBlackOil Rubbed BronzeSatin NickelBright ChromeBright BrassAntique BrassAged Bronze
Finishes

609 Antique Brass625 Bright Chrome622 Matte Black626 Satin Chrome619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass643e Aged Bronze612 Satin Bronze605 Bright Brass
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Strike

1-1/8” x 2-3/4“ square corner
Usage

Heavy Duty
Warranty

3 Year
