Schlage

Schlage ND70JD RHO (Rhodes) FSIC Interchangeable Core Classroom Lever Lock

$526.68
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Prepped for Interchangeable Core (FSIC Core Sold Separately)
  • ANSI Function F84, Classroom

Available Options:

Clear

Product Overview

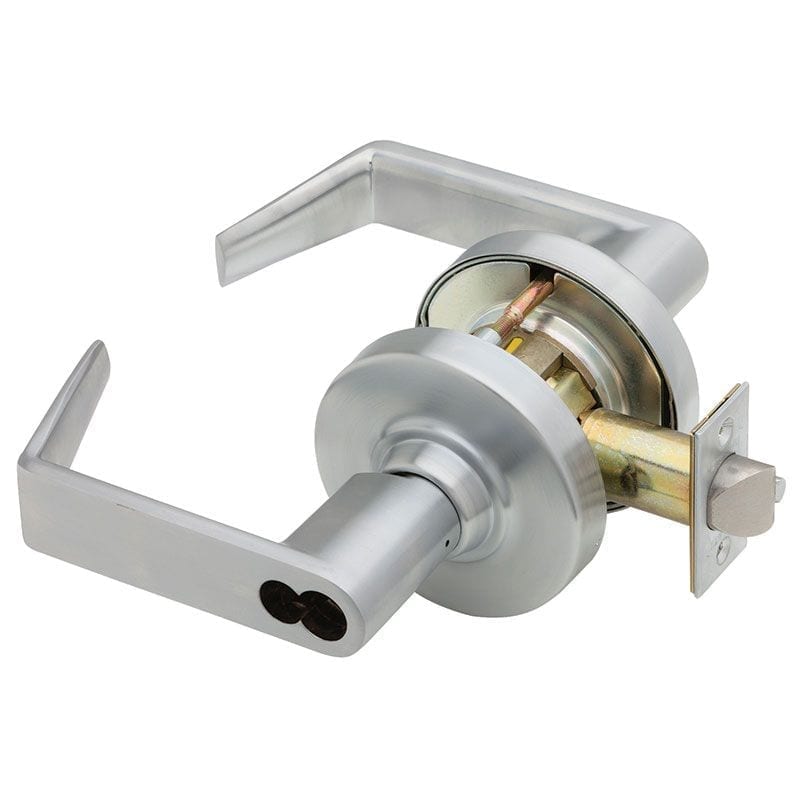

Schlage ND70JD RHO Grade-1 Cylindrical Lever Lock, Classroom Function, Rhodes Lever, Less Full Size Interchangeable Core

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

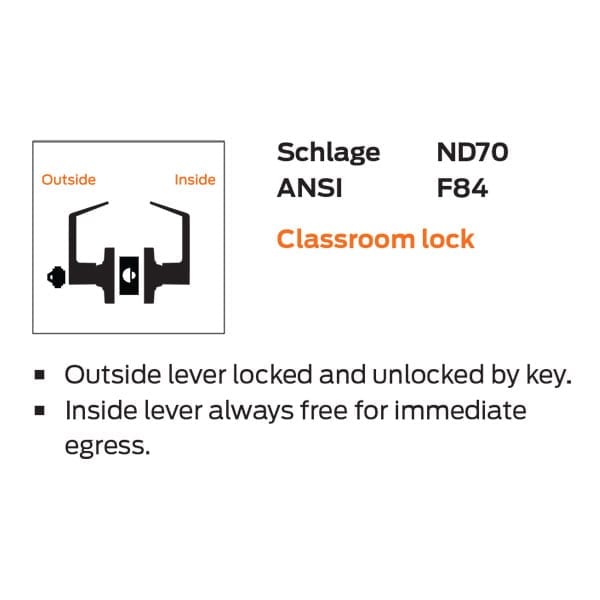

ANSI Function F84 – Outside lever is locked and unlocked by key; inside lever is always unlocked; inside lever always free for immediate egress.

  • 23-030 Full Size Interchangeable Core Sold Separately
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder

Less Interchangeable Core
Cylinder Format

Full Size Interchangeable Core (FSIC)
Door Thickness

1-3/4"
Finish

Bright BrassAged BronzeSatin BrassSatin ChromeSatin BronzeBlackDark BronzeSatin Chrome AM (Antimicrobial)Satin NickelBright Chrome
Finishes

619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design

RHO (Rhodes)
Lock Function

Classroom
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Schlage_ND_Series_Standard_Installation_Instructions_111531_manf_after_1-31-2017 Schlage_ND_Series_Timing_Guide How to Install Von Duprin 98/99 Rim Exit Device
