Schlage

Schlage B660P Single Cylinder Deadbolt with OS-OCC/IS-LOC Dual-Sided Occupancy Indicators

$265.30
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1 Certified
  • Outside indicator displays “Occupied” or “Vacant”
  • Inside indicator displays “Locked” or “Unlocked”

Available Options:

Clear

Product Overview

Schlage B660P Grade-1 Single Cylinder Deadbolt with Dual-Sided Messaging – OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim and IS-LOC (LOCKED/UNLOCKED) Inside Occupancy Indicator Trim,  2-3/4" Backset

Schlage® commercial grade 1 deadbolts are designed for security, durability and beauty. They feature a thick, anti-saw hardened steel bolt with anti-pry, anti-wrench and other protections to make it one tough lock. Lock status indicator trim features Schlage’s patented 180-degree visibility. The large window size and red/white background messaging assures easy readability for even the color blind.

ANSI E0151 - Key cylinder outside; thumbturn inside • Deadbolt thrown or retracted by key outside or thumbturn inside • When installed with lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

  • The only OEM Grade 1, keyed deadbolt indication option

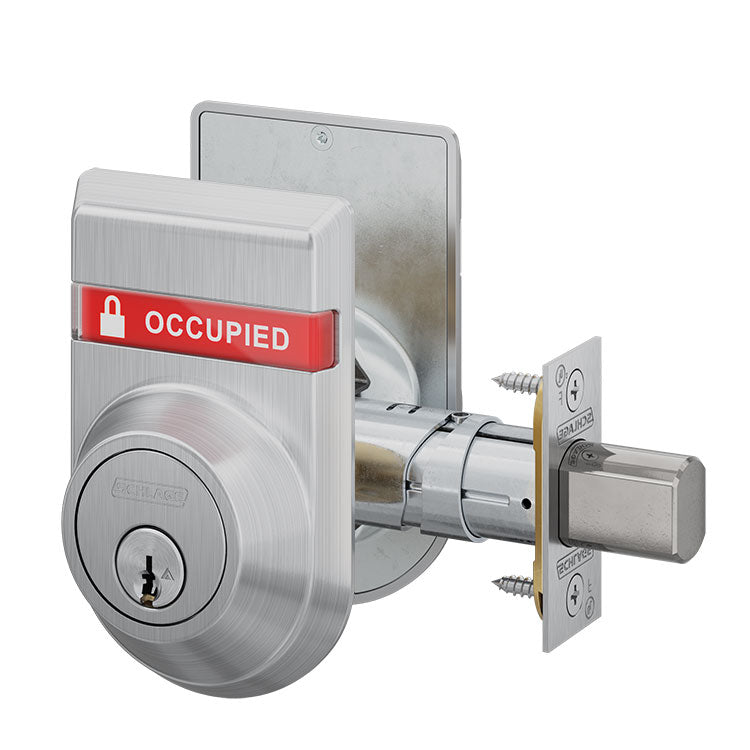

  • Outside indicator displays “Occupied” or “Vacant”

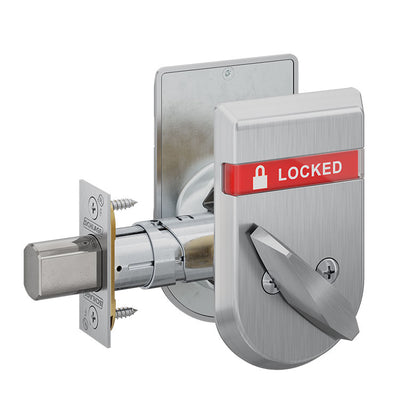

  • Inside indicator displays “Locked” or “Unlocked”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • Can be suited with virtually all Schlage levers and knobs
  • ANSI/BHMA A156.36-2020, Grade 1
  • UL listed, fire-rated up to 3 hours
  • 3-year limited mechanical warranty
ANSI Function

E0151
ANSI/BHMA Standard

ANSI/BHMA A156.36-2020 Grade 1
Backset

2-3/4"
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Schlage
Buy American Act Compliance

Meets BAA - Buy American Act
Cylinder Format

Conventional
Cylinder & Keys

5-pin or 6-pin conventional keyed different with 2 keys
Deadbolt Type

IndicatorSingle Cylinder
Door Thickness

1-3/4" to 2"
Finish

Satin BrassSatin ChromeOil Rubbed BronzeAged BronzeBlackSatin Chrome AM (Antimicrobial)Satin BronzeBright ChromeBright BrassSatin Nickel
Finishes

626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome609 Antique Brass619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass
Fire Rating

UL 10C listed for 3-hour fire door
Keyway

Schlage C KeywaySchlage S123 Keyway
Strike

1-1/8” x 2-3/4“ square corner
Usage

Heavy Duty
Warranty

3 Year
