Schlage

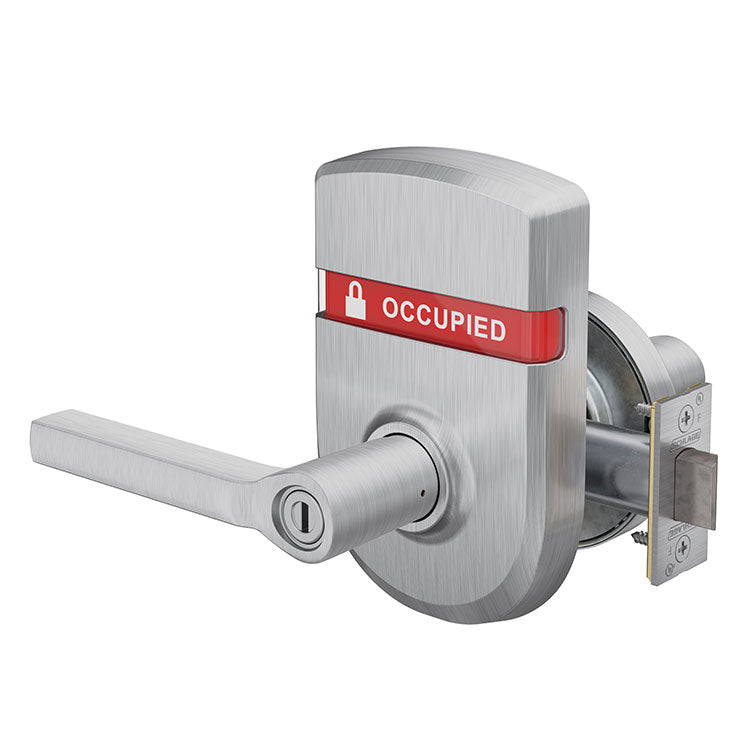

Schlage ND40S LAT (Latitude) Privacy Lever Lock with OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

$585.90
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Ideal for high-use commercial restroom doors
  • Includes outside indicator (OCCUPIED/VACANT)

Available Options:

Clear

Product Overview

Schlage ND40S LAT Grade-1 Cylindrical Lever Lock, Bath/Bedroom Privacy Function, Latitude Lever, OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

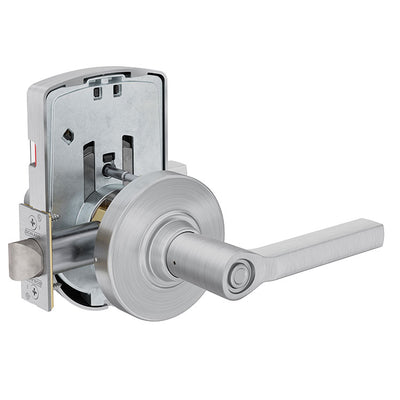

ANSI Function F76 - Lever with emergency release recessed slot outside; push button in lever inside; springlatch. In unlocked state latch is retracted by either lever. Outside lever is made inoperative by pushing button on inside lever. Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout. Emergency unlock: an emergency key (sold separate) or small, flat screwdriver inserted in outside lever and turned releases button to unlock. Inside lever always free for immediate egress

  • Indicator window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .6” for maximum visibility
  • Can be installed using the same standard door prep as any ND Series lock
  • Fits 1-3/4" thick doors
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque
  • Shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built
  • ADA compliant lever handles

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Door Thickness

1-3/4"
Finish

Satin NickelBlackSatin Chrome AM (Antimicrobial)Satin ChromeAged BronzeSatin BrassDark Bronze
Finishes

613 Oil Rubbed Bronze626 Satin Chrome622 Matte Black626AM Satin Chrome Antimicrobial619 Satin Nickel643e Aged Bronze606 Satin Brass
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Hand

RH (Right Hand)LH (Left Hand)
Handing

Handed – LH RH
Latch

1/2" throw - 1-1/8" x 2-1/4" face
Lever Design

LAT (Latitude)
Lock Function

Privacy w/ Indicator
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions_111531_manf_after_1-31-2017 How to Install Von Duprin 98/99 Rim Exit Device
