Schlage

Schlage ND80PD TLR (Tubular) Storeroom Lever Lock

$564.48
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Outside Always Locked - Entry by Key Only
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

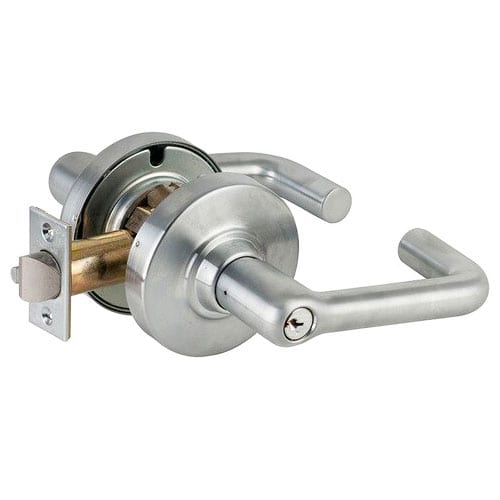

Schlage ND80PD TLR Grade-1 Cylindrical Lever Lock, Storeroom Function, Tubular Lever

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

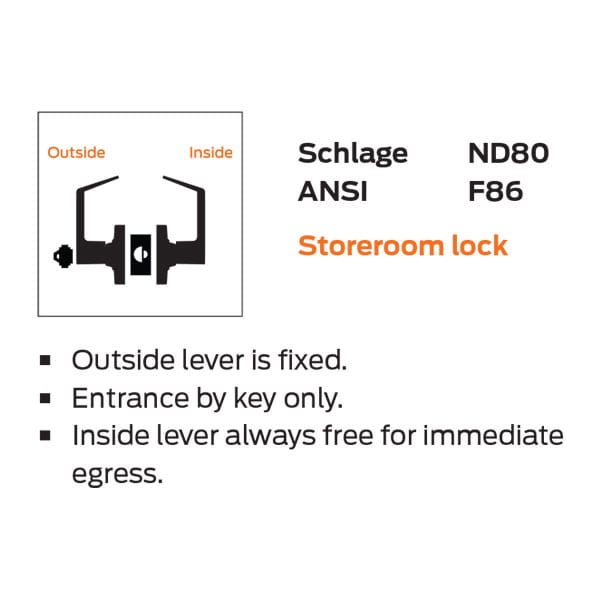

ANSI Function F86 - Outside lever is always locked; Entrance by key only - Inside lever is always unlocked

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Door Thickness

1-3/4"
Finish

Satin ChromeSatin Chrome AM (Antimicrobial)Satin BronzeBlackDark BronzeSatin NickelBright ChromeBright BrassAged BronzeSatin Brass
Finishes

643e Aged Bronze612 Satin Bronze605 Bright Brass619 Satin Nickel625 Bright Chrome622 Matte Black626 Satin Chrome626AM Satin Chrome Antimicrobial613 Oil Rubbed Bronze606 Satin Brass
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage C KeywaySchlage S123 Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

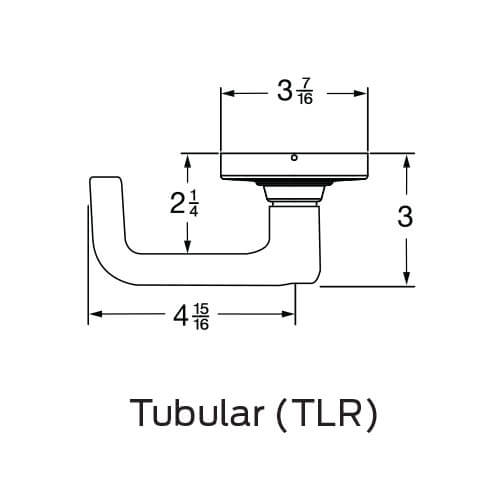

Lever Design

TLR (Tubular)
Lock Function

Storeroom
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions_111531_manf_after_1-31-2017 How to Install Von Duprin 98/99 Rim Exit Device
