Schlage

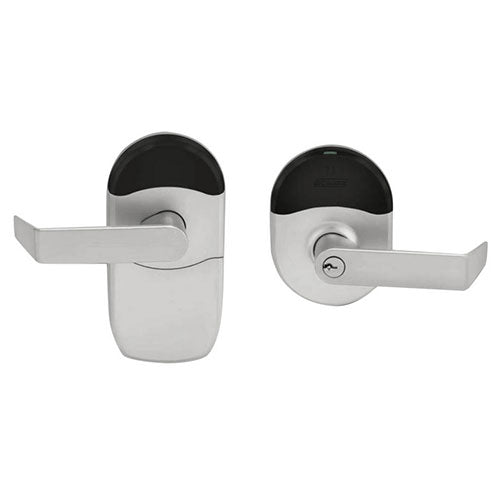

Schlage NDEBP Mobile Enabled Wireless Cylindrical Lever Lock

$781.34
This item ships FREE! Usually Ships:  1-2 Business Days
  • Multi function (storeroom, office, privacy, and apartment)
  • Fits cylindrical door prep with minor modifications
  • Weather-resistant design

Available Options:

Clear

Product Overview

Schlage Electronics NDEBP Grade 1 Schlage ENGAGE Series Wireless Cylindrical Lock, 2.4 GHz Bluetooth Low Energy Reader, Conventional Cylinder, Mobile Enabled Multi-Function

The NDE design packages the cylindrical lock, credential reader, and access control sensors together into a small footprint that is both easy to install and affordable. Ideal for office and suite entries, conference rooms, common area doors, resident units, and sensitive storage areas with a cylindrical door prep.

  • Includes an interior push button with indication for storeroom, office, privacy, and apartment applications
  • Built on proven Schlage ND Series, Grade 1 mechanical lock
  • Wireless configuration from connected smartphones and tablets
  • Fits mechanical ND door prep with minor modifications
  • Weather-resistant design
  • Lever handing is field reversible in seconds; no tools required
  • Up to 2 years of battery life

Athens Lever Models: NDEBP-ATH-619, NDEBP-ATH-622, NDEBP-ATH-626, NDEBP-ATH-643e, Latitude Lever Models: NDEBP-LAT-619, NDEBP-LAT-622, NDEBP-LAT-626, NDEBP-LAT-643e, Rhodes Lever Models: NDEBP-RHO-619, NDEBP-RHO-622, NDEBP-RHO-626, NDEBP-RHO-643e, Sparta Lever Models: NDEBP-SPA-619, NDEBP-SPA-622, NDEBP-SPA-626, NDEBP-SPA-643e

ANSI/BHMA Standard

ANSI/BHMA A156.25 (Indoor/Outdoor) ANSI/BHMA Grade 1 UL 294 UL10C
Backset

2-3/4"
Battery Life

Up to 2 yrs with 4 AA batteries
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Door Thickness

1-3/4" to 2"
Finish

BlackSatin NickelSatin ChromeAged Bronze
Finishes

622 Matte Black619 Satin Nickel626 Satin Chrome643e Aged Bronze
Handing

Right-handed from factory. Field reversible in seconds (no tools required)
Keyway

Schlage C Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

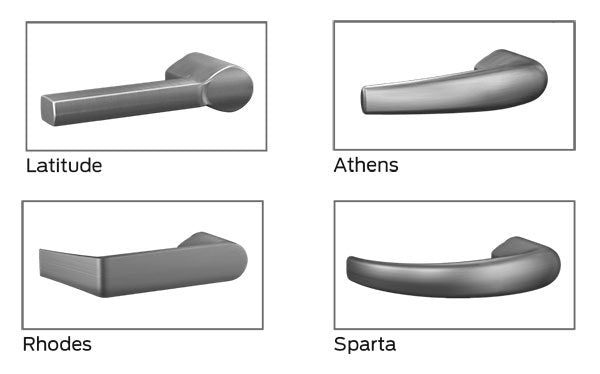

Lever Design

RHO (Rhodes)LAT (Latitude)ATH (Athens)SPA (Sparta)
Lock Function

Wireless Storeroom
Lock Type

Cylindrical Lock
Strike

1-1/4" x 4-7/8" ANSI square corner with Door Position Switch magnets
Usage

Heavy Duty
Users

Up to 5000
Schlage_NDE_NDEB_Installation_Instructions_013554 How to Install Von Duprin 98/99 Rim Exit Device
