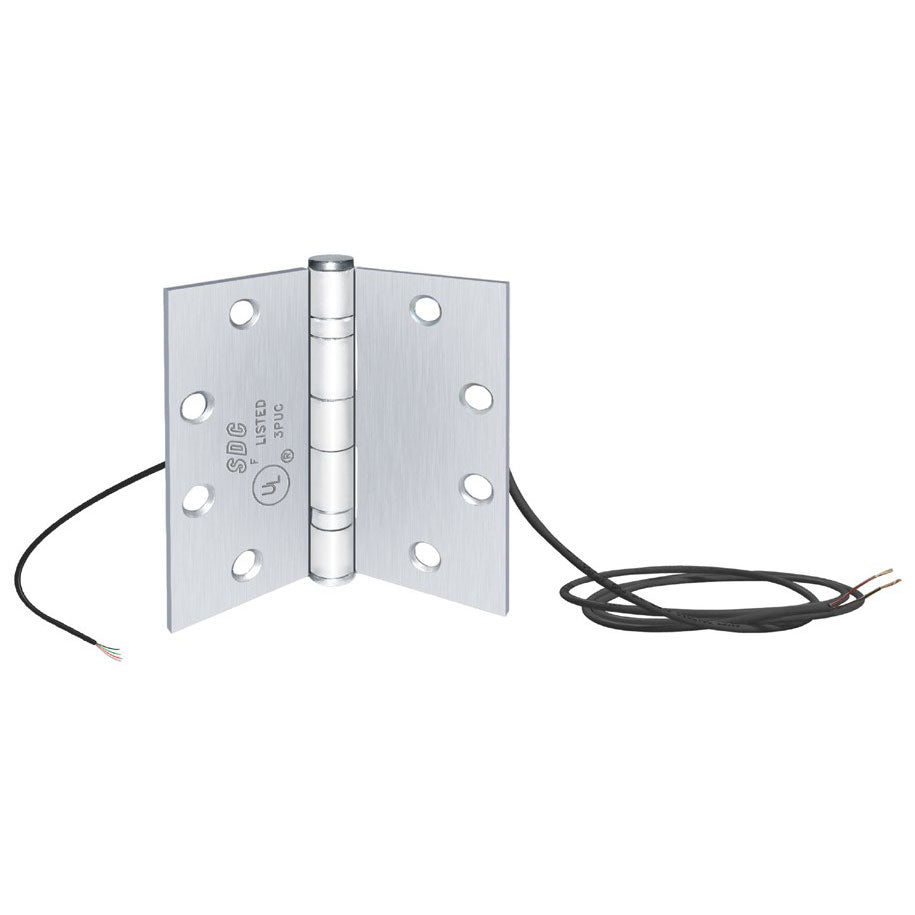

PTH-10Q 4.5" x 4.5" Electrified Power Transfer Hinge, Ten Conductors

$167.30
Usually Ships:  2-3 Business Days
  • Allows electrical currents to pass from jamb through the hinge into door
  • 10 wire, 28 AWG Guage
  • Satin chrome finish

Available Options:

Clear

Product Overview

SDC PTH-10Q 4.5" x 4.5" Power Transfer Hinge, Ten (10) Conductor at 1 Amp, Full Mortise, 5 Knuckle, Standard Weight, 626 Satin Chrome Finish


Electric power transfer hinges provide a concealed and vandal-resistant method for running wires from the frame to doors equipped with electric locks and exit devices.
Installed in the center hinge position of the door, PTH power transfer hinges provide the concealed wires required to transfer power from the frame to electric hardware in the door for control and monitoring capability.
  • Standard weight, 5 knuckle hinge
  • Wire replacement warranty
  • 5’ cable
  • Optional: Door position status (DPS)
Certifications
  • UL10C Positive Pressure Fire Tests of Door Assemblies
  • ULC-S104 Standard Method for Fire Test of Door Assemblies
  • ANSI/BHMA A156.1
Brand

SDC
Finish

Satin Chrome
Option

DPS Door Position Status, None
Hinge Type

Full Mortise
Size

4.5" x 4.5"
Knuckles

Five
Bearings

Ball Bearing
Usage

Medium Duty
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Fire Rating

UL Listed
