PTM-2 PTM Electrified Mortise Power Transfer Device, Two Conductor

$318.78
This item ships FREE! Usually Ships:  2-3 Business Days
  • Transfer electric lock and exit device power from the frame to the door
  • Completely concealed when the door is closed
  • Two 18 gauge wires

Available Options:

Clear

Product Overview

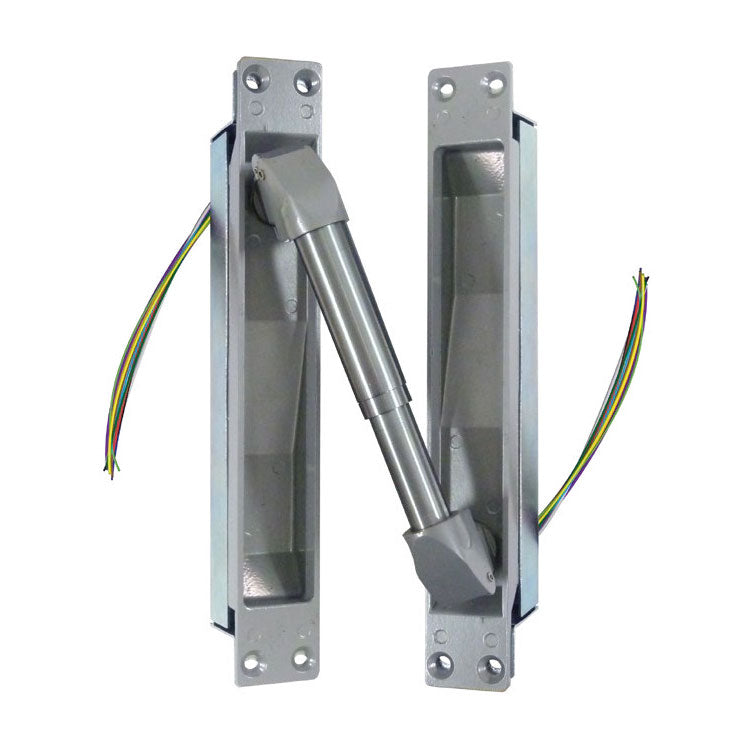

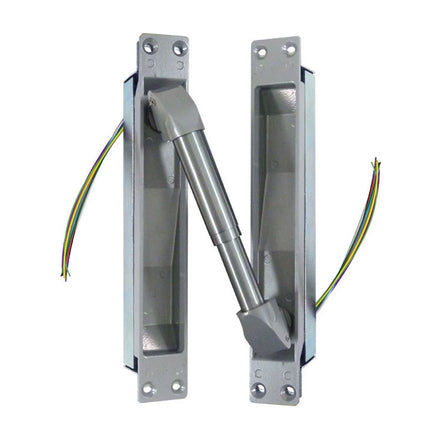

SDC PTM-2 PTM Electrified Mortise Power Transfer Device, Two Conductor


SDC’s heavy duty electrified mortise power transfer devices provide concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door.
Completely concealed when the door is closed the PTM power transfer mortise device is ideal for heavy traffic and applications requiring higher security to inhibit tampering and abuse.
  • Two Conductor Mortise Device
  • Power control
  • Mortise door and frame installation
  • Completely concealed when door closed
  • All metal design
  • Heavy cast housing & steel back box
  • Stainless steel tubular wire transfer
  • Tamper resistant
  • Weather resistant
  • Wood, steel and aluminum door and frame fasteners included
  • 10-1/2" x 4" x 2" overall size
  • Pre-wired
Brand

SDC
Finish

Aluminum, Dark Bronze
Finishes

AL Aluminum Powder Coat, BZ Dark Bronze Powder Coat
Applications

Wood, steel and aluminum doors and frames
Certifications

UL 10C Positive Pressure Fire Tests, 3hr, Uniform Building Code (UBC) Standard 7-2
Warranty

5 Year
