Trudoor TD-CHFM Heavy-Duty Full Mortise Concealed Continuous Gear Hinge

Trudoor's Choice for full mortise hinges
$88.63
Usually Ships:  Same Day
  • Typically used for new door applications
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

Clear

Product Overview

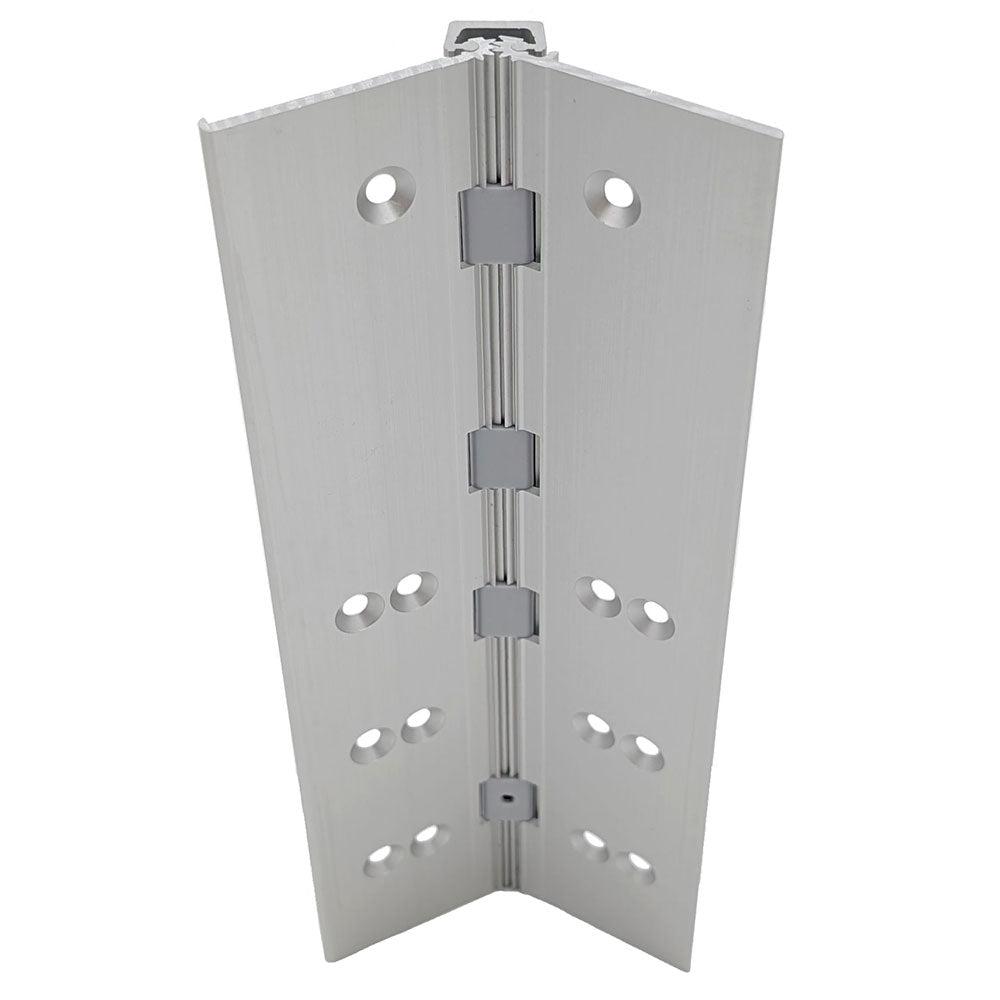

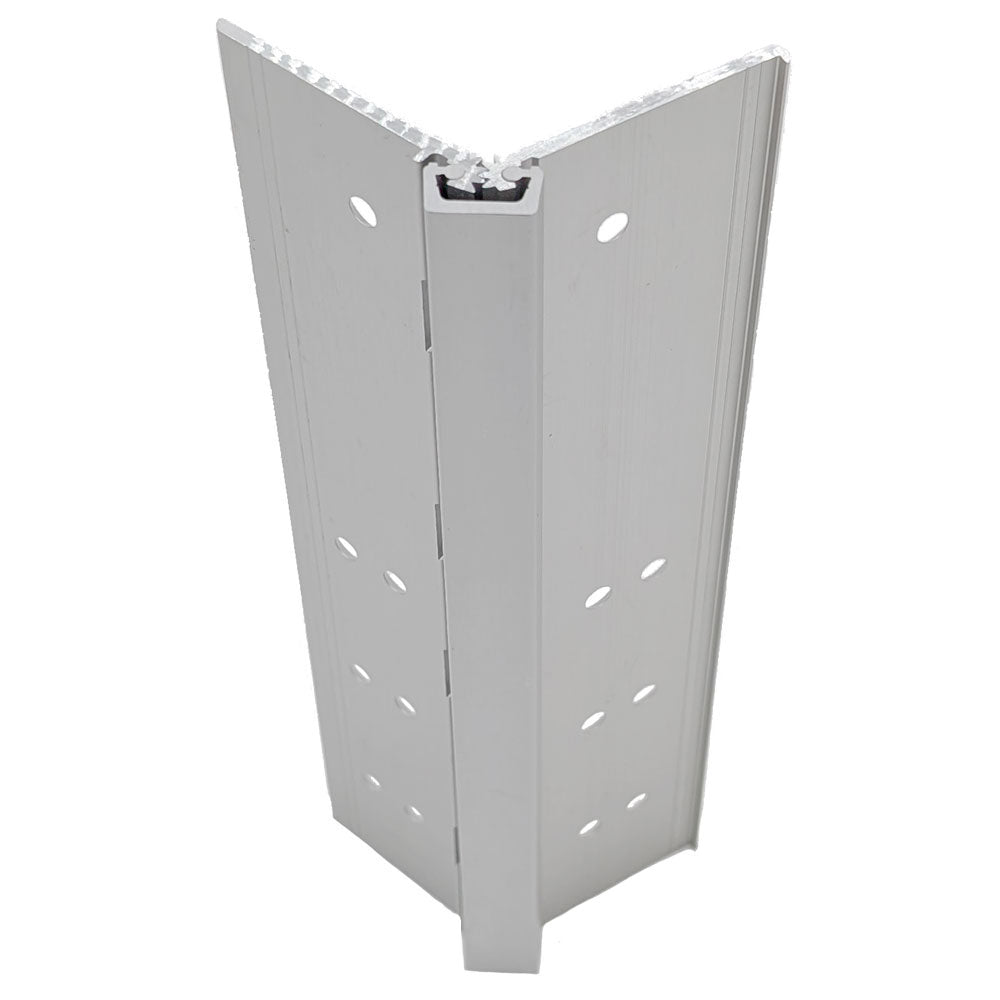

Trudoor TD-CHFM Heavy-Duty Full Mortise (Concealed Leaf) Continuous Gear Hinge, Grade-1, Fire-Rated


Heavy-duty aluminum continuous geared hinge – designed mainly for new door applications
  • Full concealed, heavy-duty grade-1

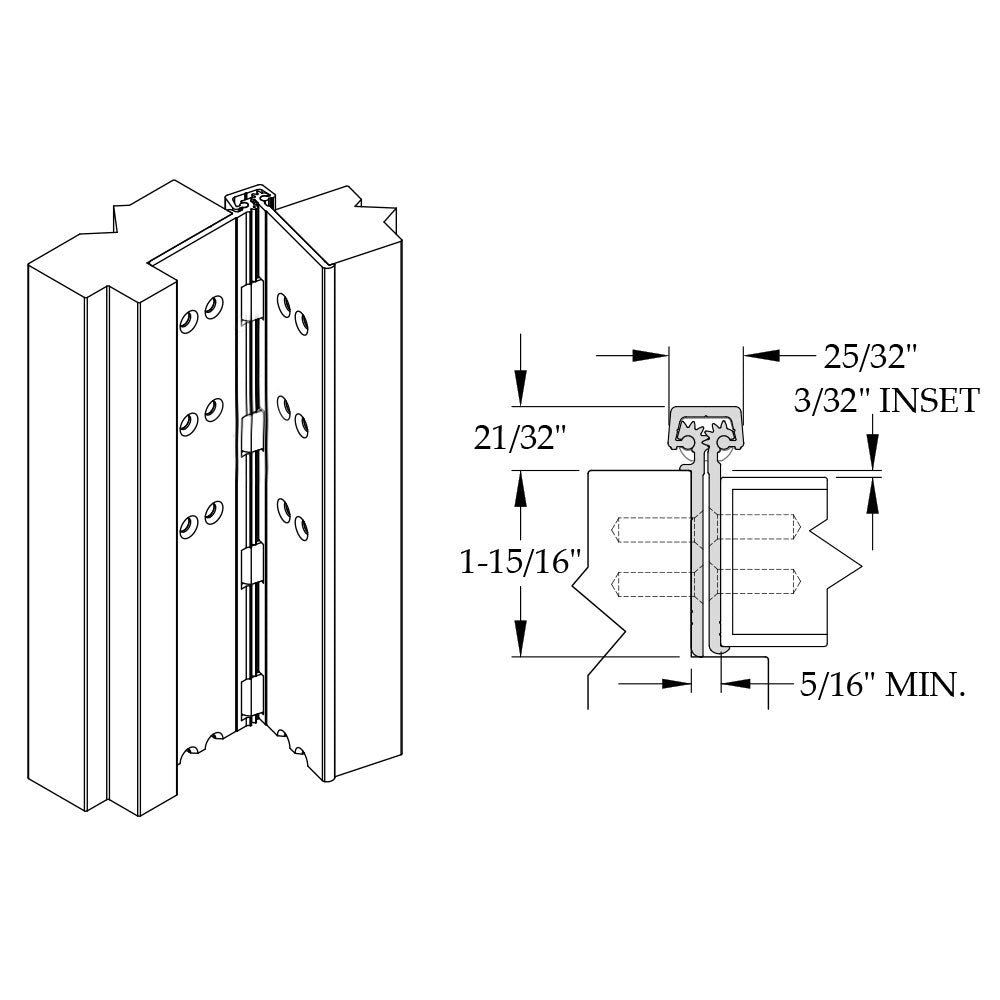

  • 3/32" door inset
  • Door edge protection lip
  • Eliminates door sag and binding
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Standard Lengths: 79", 83″, *95″
*Oversize handling fee applies (added at checkout)
Cross Reference
TD-CHFS hinges can be specified as a substitute or direct replacement for: ABH A240HD, Best/Stanley 662HD, Cal-Royal CRHD782240, Design Hardware FMHD, Hager 780-224HD, Ives 224, NGP HD2400, PBB CG31L, Pemko _FM_-HD1, Select SL24
made-in-usa
Brand

Trudoor
Length

79" (for 6'8" door), 83" (for 7'0" door), 95" (for 8'0" door)
Finishes

Black Anodized Aluminum, Clear Anodized Aluminum, Dark Bronze Anodized Aluminum
Continuous Hinge Type

Full Mortise (Concealed)
ANSI/BHMA Standard

ANSI/BHMA A156.26-2017
Usage

Heavy Duty
Material

Aluminum
Fasteners

12-24 x 3/4″ undercut self drilling, thread forming tek machine screws
Door Applications

1-3/4″ Thick Doors
Door Weight

up to 450 lbs.
Door Width

up to 48"
Fire Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Warranty

Limited Lifetime Warranty
