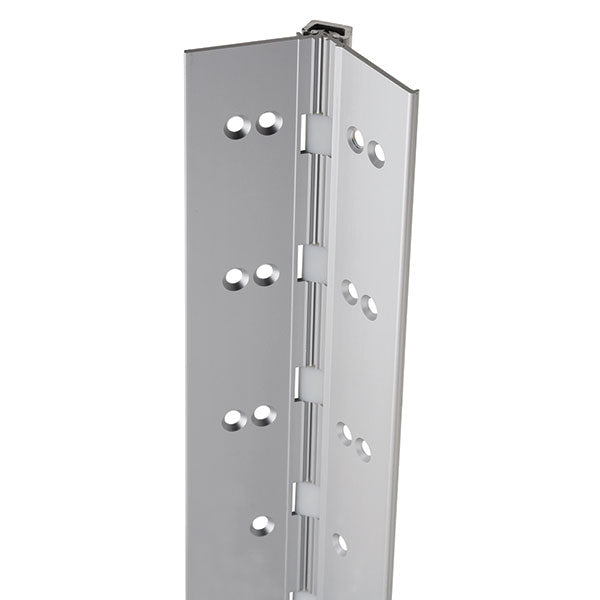

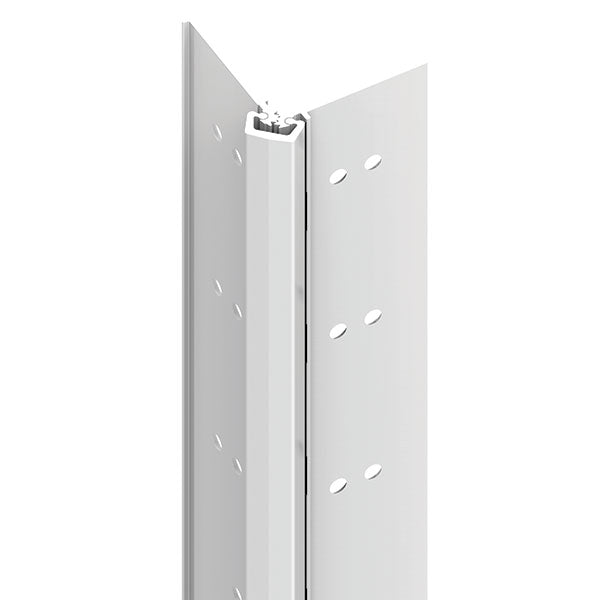

Ives 224HD Heavy Duty Full Mortise Continuous Gear Hinge

$166.41
Usually Ships:  1-2 Business Days
  • For 1-3/4" doors weighing up to 450 pounds
  • Door edge protector, 1/16" door inset
  • UL Listed - Fire-rated

Available Options:

Clear

Product Overview

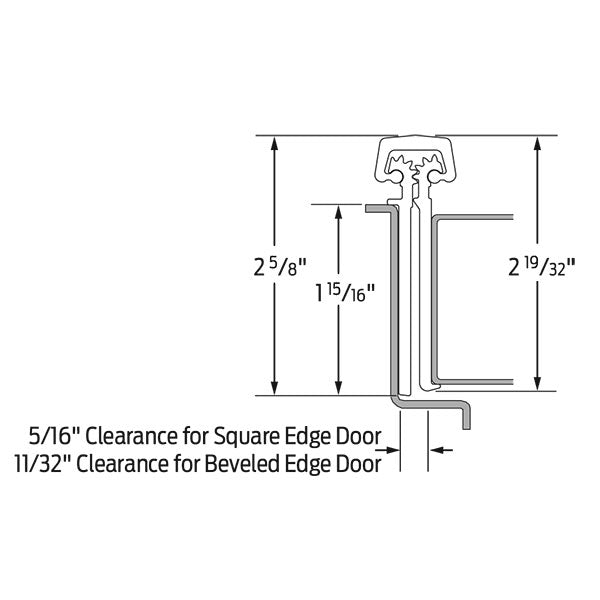

Ives 224HD Heavy-Duty Aluminum Continuous Geared Hinge, Full Mortise, 1/16" Inset

Ives Continuous Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps your door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high use/high traffic doors.

The design of a continuous hinge eliminates the gap between the door and the frame. The absence of gap also helps prevents finger from being pinched, making it a safer device than traditional hinges. These benefits result in higher efficiency and less maintenance, maximizing the value of your opening investment.

  • Door Edge Protector
  • 48" Maximum Door Width
  • 1/16" Door Inset
  • Beveled or Square Edge Doors
  • 12-24 x 3/4" Steel self-drilling / self-tapping Phillips head screws
  • For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing
ANSI/BHMA Standard

Meets ANSI 156.26
Brand

Ives
Continuous Hinge Type

Full Mortise (Concealed)
Finish

Anodized AluminumDark Bronze
Finishes

313AN Anodized Dark BronzeUS28 (628) Anodized Aluminum
Fire Rating

UL Listed - Tested and approved UL 10C
Length

83" (for 7'0" door)95" (for 8'0" door)
Usage

Heavy Duty
