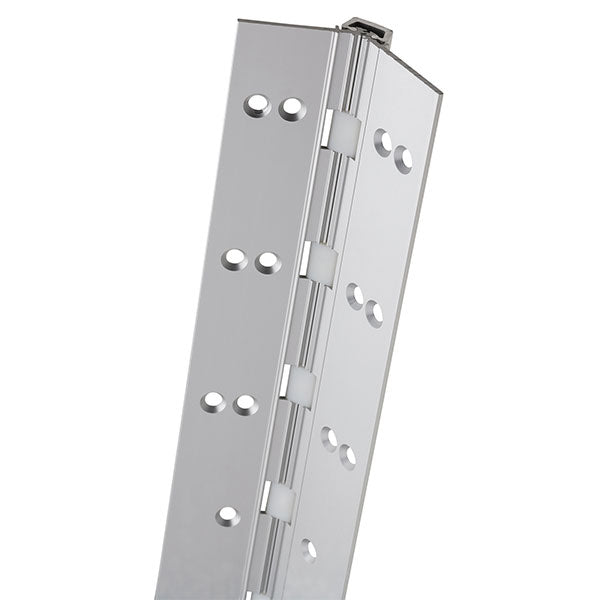

Ives 112HD Heavy Duty Full Mortise Continuous Gear Hinge

$155.96
Usually Ships:  1-2 Business Days
  • For 1-3/4" doors weighing up to 450 pounds
  • 48" maximum door width
  • UL Listed - Fire-rated

Available Options:

Clear

Product Overview

Ives Continuous Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps your door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high use/high traffic doors.

  • For 1-3/4" thick doors
  • Spread bearing design
  • Non-Handed
  • Flush mounted, no inset
  • 48" Maximum door width
  • Beveled or square edge doors
  • For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing
ANSI/BHMA Standard

Meets ANSI 156.26
Brand

Ives
Continuous Hinge Type

Full Mortise (Concealed)
Finish

Anodized AluminumDark Bronze
Finishes

313AN Anodized Dark BronzeUS28 (628) Anodized Aluminum
Fire Rating

UL Listed - Tested and approved UL 10C
Length

83" (for 7'0" door)95" (for 8'0" door)
Usage

Heavy Duty
