Trudoor TD-DRIP Overhead Rain Drip Guard, Aluminum

Trudoor's Choice
$16.33
Usually Ships:  Same Day
  • Overhead rain drip, attach to top of door frame
  • Should be ordered with a minimum of 4" longer than door width
  • #6 x 5/8" sheet metal screws provided

Available Options:

Clear

Product Overview

Trudoor TD-DRIP Overhead Rain Drip, Door Top Weatherstrip

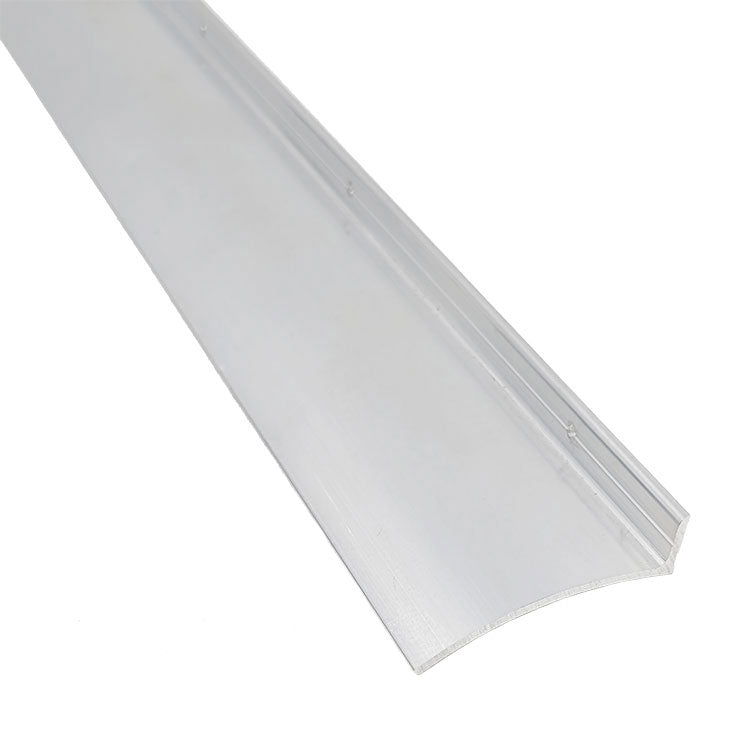

The TD-DRIP Rain Drip Projection Strip is a fire-rated weatherstrip made of heavy-duty aluminum. It deflects water from the gaps at the top of doors, preventing seepage.

Designed to be installed on the frame over the door.

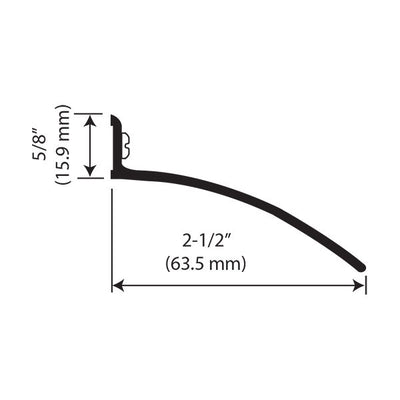

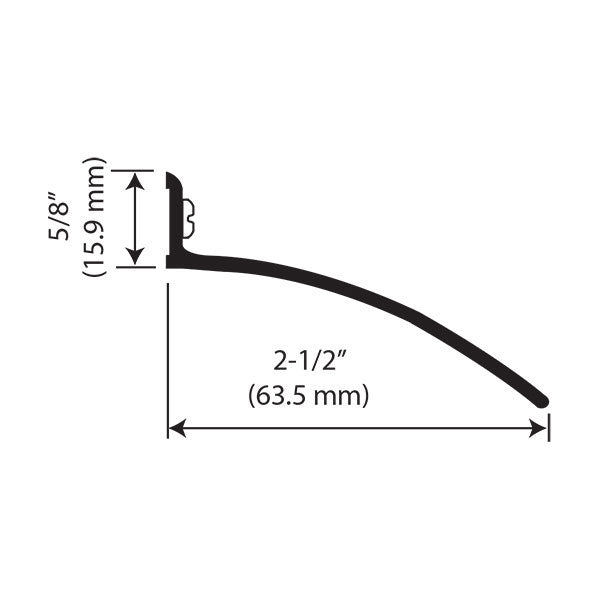

  • Width: 2-1/2"
  • Height: 5/8"
  • Length: 40", 52", or 76"

Ratings

  • Fire Rated
  • Meets UL10B, UL10C and UBC 7-2 (1997) Category J

Installation Instructions

The suggested length should be 4” longer than the width of the door.

  1. Center the entire length on the frame over the door.
  2. Fasten using the screws provided.
  3. Ensure the top of the door clears rain drip when opened or closed.

Cross-reference: Cal-Royal CR4462, Design Hardware DC-1, Hager 810S, NGP 16, Pemko 346, Reese R201, Zero 142

Brand

Trudoor
Fasteners

#6 x 5/8" Pan head sheet metal screws furnished
Finish

Aluminum
Finishes

Mill Finish Aluminum
Length

52"40"76"
