Trudoor TD-SWN Door Bottom Sweep with Neoprene Seal

Trudoor's Choice
$14.12
Usually Ships:  Same Day
  • For commercial doors of all types
  • Seals against smoke, fire, air, sound, insects, and weather
  • Air infiltration tested and fire-rated

Available Options:

Clear

Product Overview

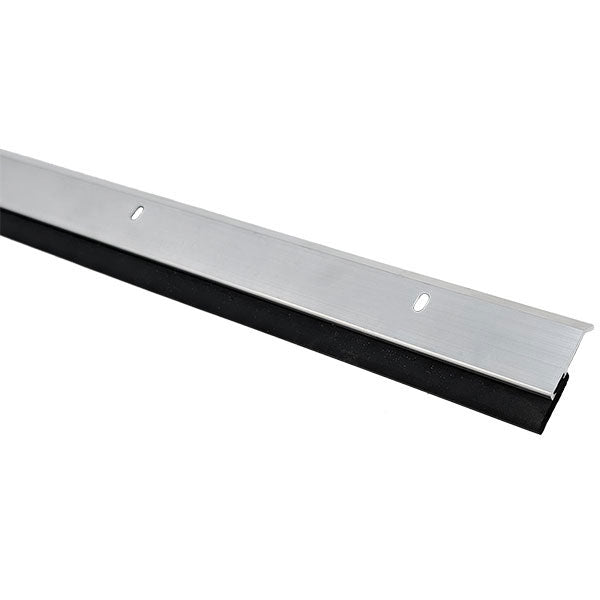

Trudoor TD-SWN Door Bottom Sweep with Extruded Aluminum Retainer and Neoprene Insert

The TD-SWN Door Sweep is designed with an aluminum casing and a neoprene extrusion. This door sweep includes fasteners and is easy to install.

  • Used to seal the gap at the bottom of the door to prevent infiltration of air, sound, light, drafts, insects, moisture, wind, water, snow, smoke, and fire
  • Surface mounts to the face of the door
  • Commonly used on the exterior outswing doors
  • Made of extruded aluminum retainer with neoprene insert
  • Use on either wood or hollow metal doors
  • Slotted holes for easy adjustment
  • Includes #6 x 5/8 PPHSMS fasteners

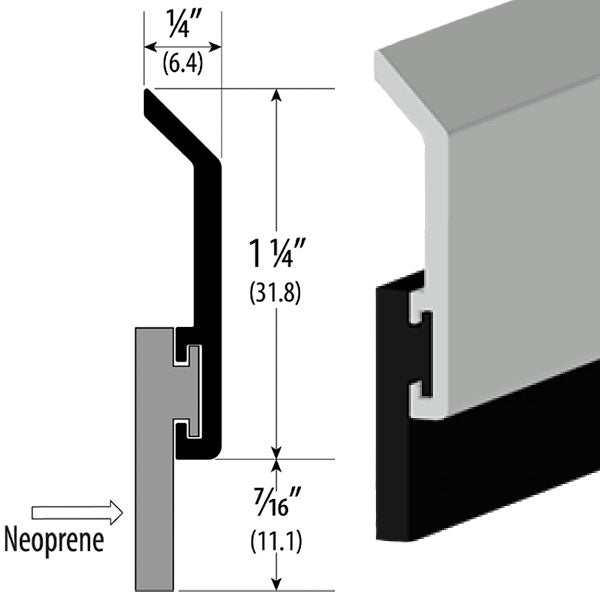

  • Width: 1/4” (6.4 mm)
  • Profile Height: 1-1/4” (31.8 mm)
  • Total Height with Insert: 1-11/16” (42.9 mm
  • Length: 36" or 48"

TD-SWN-Codes

Cross-reference: Cal-Royal BTN-133, Design Hardware SW-R, Draftseal DS138, Hager 750S, NGP 200N, Pemko 315_N, Reese 323, Zero 39

Brand

Trudoor
Fasteners

PHSMS #6 x 5/8"
Finish

Aluminum
Finishes

Mill Finish Aluminum
Fire Rating

Fire Rated – UL10C – Positive Pressure
Insert/Seal Type

Neoprene or EPDM
Length

48"36"
