Trudoor

Trudoor TD-SWB Door Bottom Sweep with Nylon Brush Seal

Trudoor's Choice
$19.56
Usually Ships:  Same Day
  • For commercial doors of all types
  • Seals against smoke, fire, air, sound, insects, and weather
  • Air infiltration tested and fire-rated

Available Options:

Clear

Product Overview

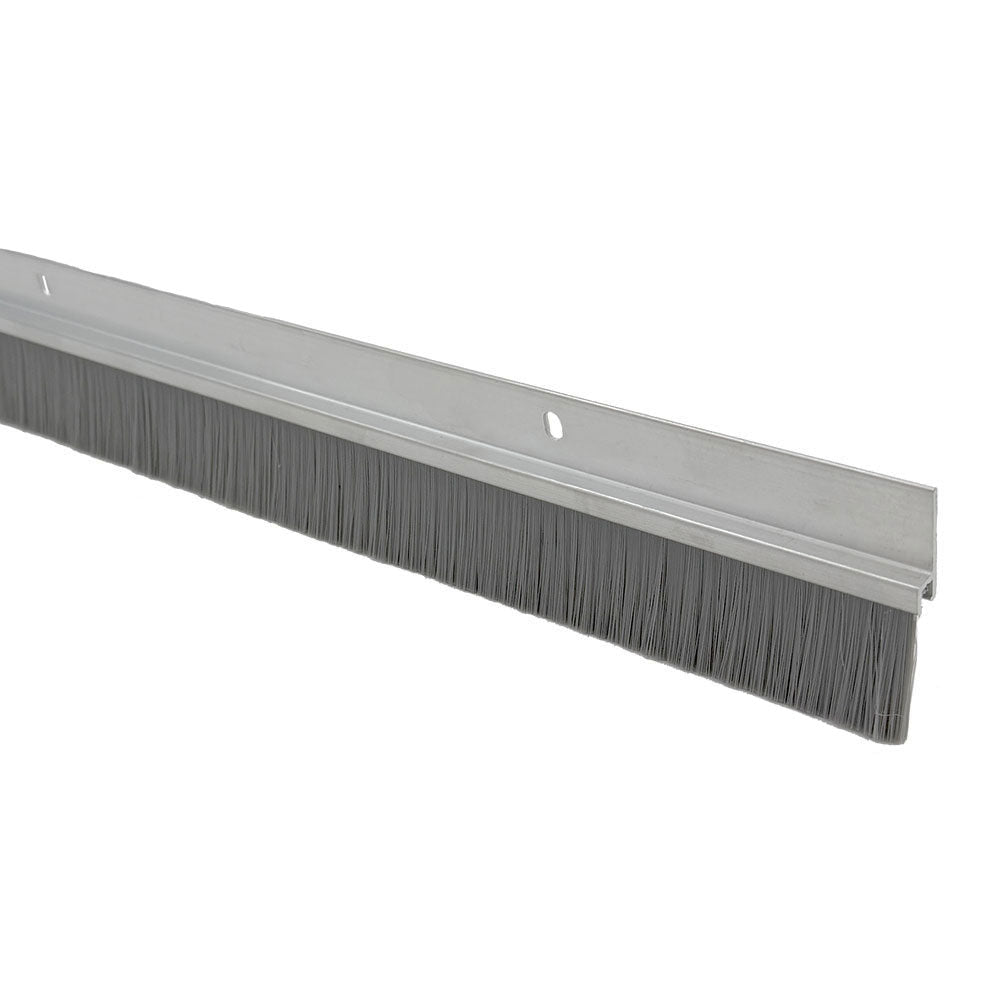

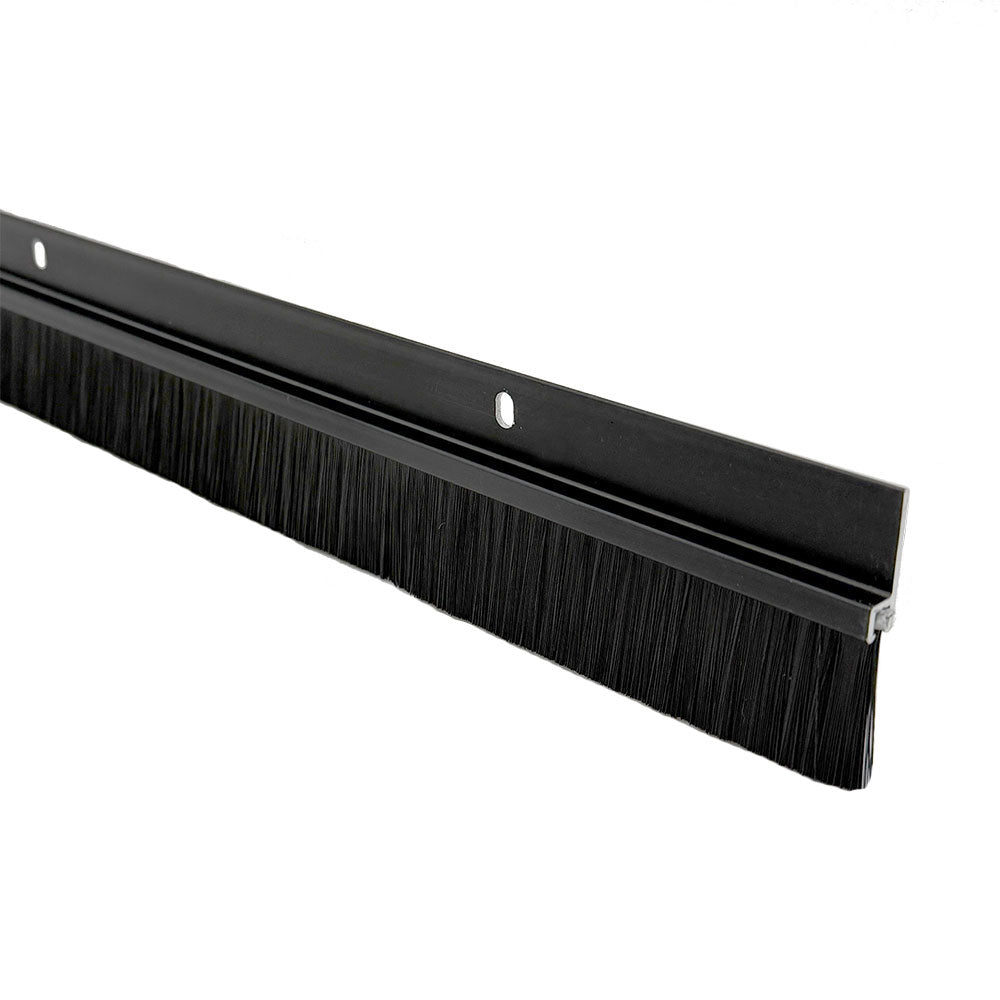

Trudoor TD-SWB Door Bottom Sweep with Extruded Aluminum Retainer and Nylon Brush Insert


The TD-SWB Door Sweep is designed with an aluminum casing and a nylon brush insert. This door sweep includes fasteners and is easy to install.
  • Used to seal the gap at the bottom of the door to prevent infiltration of air, sound, light, drafts, insects, moisture, wind, water, snow, smoke, and fire
  • Surface mounts to the face of the door
  • Commonly used on the exterior outswing doors
  • Made of extruded aluminum retainer with nylon brush insert
  • Use on either wood or hollow metal doors
  • Slotted holes for easy adjustment
  • Includes #6 x 5/8 PPHSMS fasteners

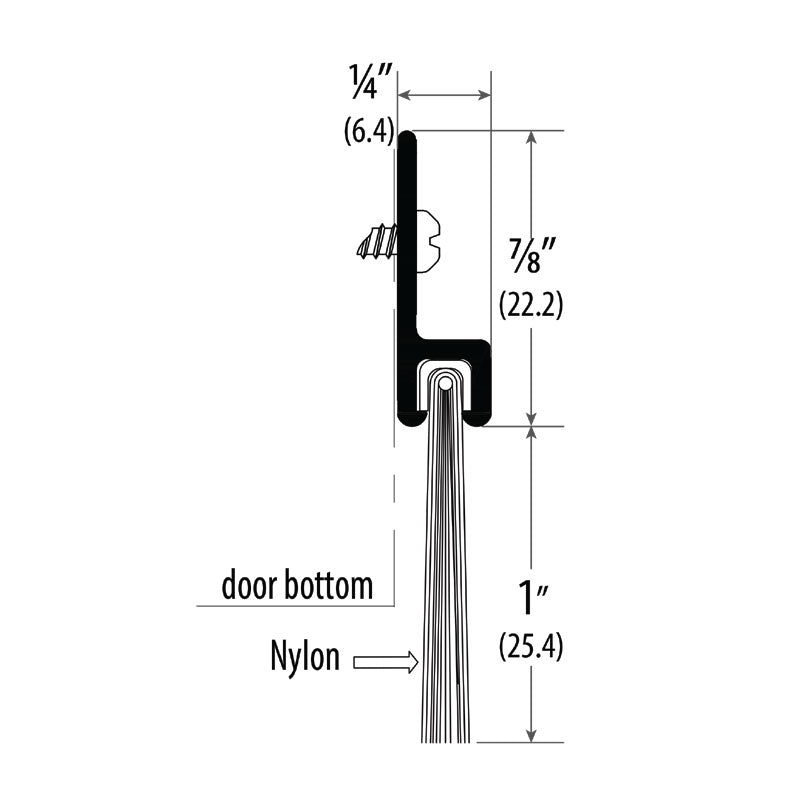

  • Width: 1/4"
  • Profile Height: 7/8"
  • Total Height with Insert: 1-7/8"
  • Length: 36" or 48"
TD-SWN-Codes
Cross-reference: Cal-Royal BW-305, Design Hardware SW-BR, Hager 801S, NGP 601, Pemko 18100, Reese 967
