Product Overview

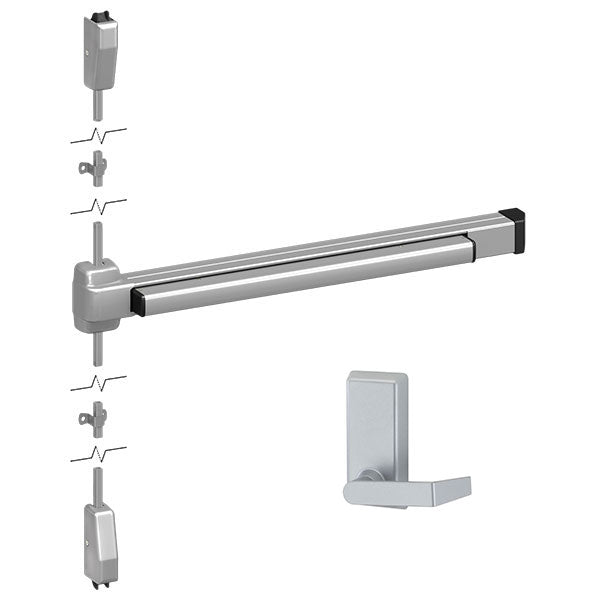

Von Duprin 2227L-BE Grade-1 Surface Vertical Rod Panic Exit Device, with 230L-BE Lever, 7ft Height
The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.
- Standard Sizes: 3' x 7', 4' x 7' (extension rod for 8' doors available)
- Finishes: SP28 (Sprayed Aluminum), SP313 (Sprayed Dark Bronze)
230L-BE Entry Lever Trim (Lever always operable)
- ANSI Function: 14
- Escutcheon plate size: 3″ x 6-3/8″ x 15/16″
- Projection: 2-5/8″
- #06 lever style furnished standard
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2008 Grade 1 certified |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Device Type |
Surface Rod Device |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Finish |
AluminumDark Bronze |
| Fire-Rated |
Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
3 Hour Fire-Rated |
| Hand |
Field Reversible (shipped RHR) |
| Latchbolt |
Deadlatching 3/4" throw |
| Length |
4'0" (3'4" to 4'0" Doors)3'0" (2'4" to 3'0" Doors) |
| Projections |
3-3/4" Maximum 3" Dogged |
| Stile Type |
Wide (Standard) |
| Strikes |
299 Top Strike 304L Bottom Strike - 248L4 Bottom strike for use with flat threshold |
| Trim |
230L-BE (Passage) |
| Usage |
Medium Duty |
| Vertical Rods |
Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for 8'0" doors) |
