Trudoor TDE-1000V-L-BE Heavy-Duty Surface Vertical Rod Exit Device with Blank Escutcheon Lever

$626.70
This item ships FREE! Usually Ships:  Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes TDE-14 blank escutcheon passage lever trim
  • ANSI Function 14, lever always free and open

Available Options:

Clear

Product Overview

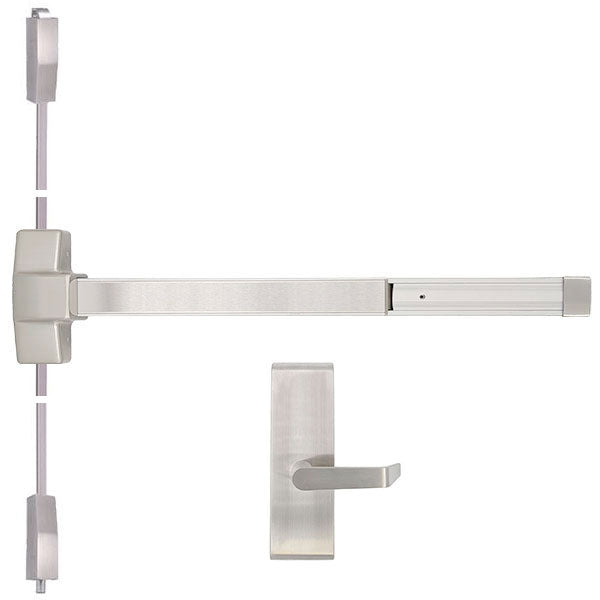

Trudoor TDE-1000V-L-BE Heavy-Duty Grade-1 Surface Vertical Rod Exit Device with Blank Escutcheon Lever Trim, Panic Rated, Satin Stainless Steel, 7ft Door Height

TDE-1000 Series surface vertical rod exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function 14 (Passage) – lever always operable
  • UL Listed for Panic Exit Hardware
  • Designed for heavy use
  • Door heights: 7′ Standard – extended top rods available for up to 8′ tall doors
  • Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
  • Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate

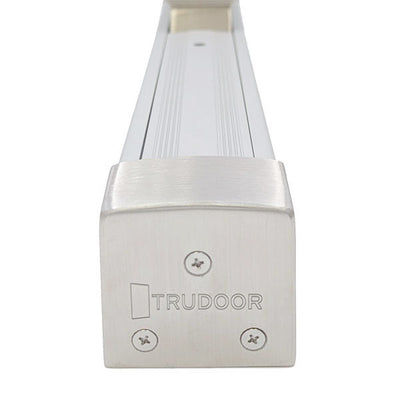

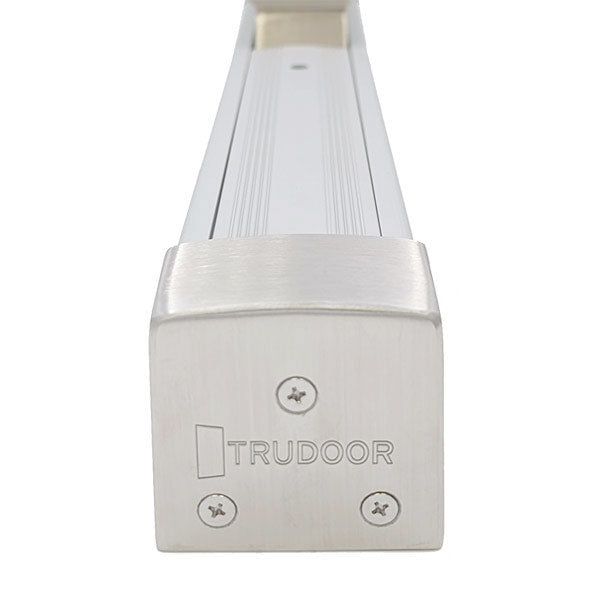

  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device

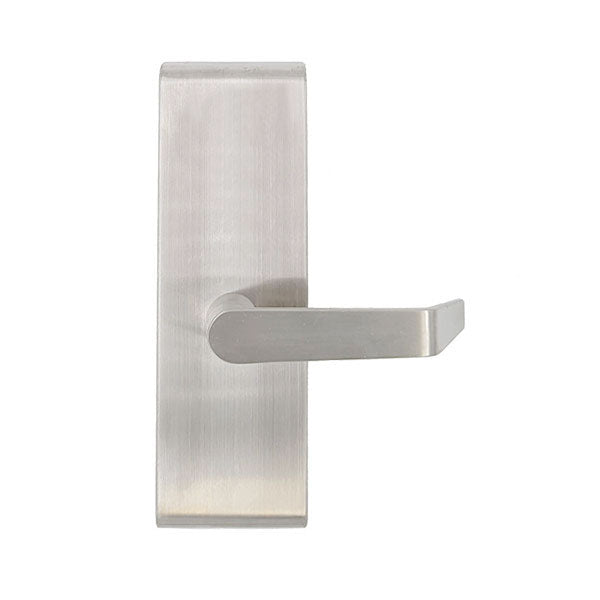

TDE-14 Blank Escutcheon Lever Trim, Keyless

  • Passage function, lever always free and open
  • Blank escutcheon, no cylinder hole
  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
  • Meets ADA requirements – A117.1 Accessibility code

ul-listed





ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Brand

Trudoor
Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick
Device Type

Surface Rod Device
Dogging Feature

Half turn hex dogging standard
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

Stainless Steel
Finishes

US32D (630) Satin Stainless Steel
Fire Rating

Non-Fire-Rated
Handing

Easily Re-handed in the field – Shipped as RHR
Length

3ft (for doors 2'4" to 3'0")
Minimum Stile Width

4-1/2"
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Stile Type

Wide (Standard)
Trim

TDE-14 Blank Escutcheon Passage Lever
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
