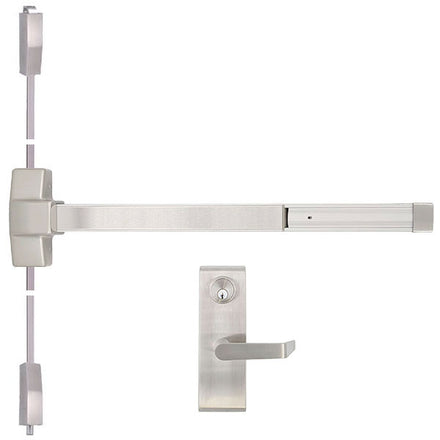

Trudoor TDE-1000V-L Heavy-Duty Surface Vertical Rod Exit Device with Escutcheon Lever

$626.70
This item ships FREE! Usually Ships:  Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes TDE-08 escutcheon lever trim (cylinder included)
  • ANSI Function 08 (classroom) or 09 (night latch)

Available Options:

Clear

Product Overview

Trudoor TDE-1000V-L Heavy-Duty Grade-1 Surface Vertical Rod Exit Device with Escutcheon Lever Trim, Panic Rated, Satin Stainless Steel, 7ft Door Height

TDE-1000 Series surface vertical rod exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function 08 (Classroom) or 09 (Night Latch / Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
  • UL Listed for Panic Exit Hardware
  • Designed for heavy use
  • Door heights: 7′ Standard – extended top rods available for up to 8′ tall doors
  • Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
  • Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate

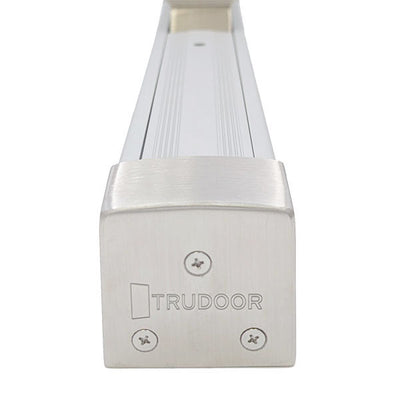

  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device

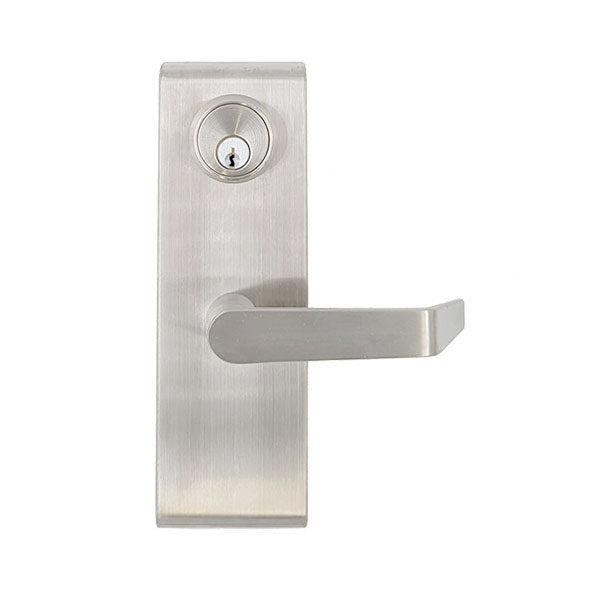

TDE-08 Escutcheon Lever Trim

  • Entry/classroom function – convertible to night latch
  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
  • Includes 1-1/8″ mortise cylinder with a straight cam, 6-pin, Schlage C keyway, with 2 keys
  • Meets ADA requirements – A117.1 Accessibility code

ul-listed





ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Brand

Trudoor
Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick
Cylinder

1-1/8" mortise cylinder with straight cam (included)
Device Type

Surface Rod Device
Dogging Feature

Half turn hex dogging standard
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

Stainless Steel
Finishes

US32D (630) Satin Stainless Steel
Fire Rating

Non-Fire-Rated
Handing

Easily Re-handed in the field – Shipped as RHR
Keyway

Schlage C Keyway
Length

3ft (for doors 2'4" to 3'0")
Minimum Stile Width

4-1/2"
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Stile Type

Wide (Standard)
Trim

TDE-08 Escutcheon Lever
Usage

Heavy Duty
Warranty

Limited Lifetime Warranty
