Von Duprin

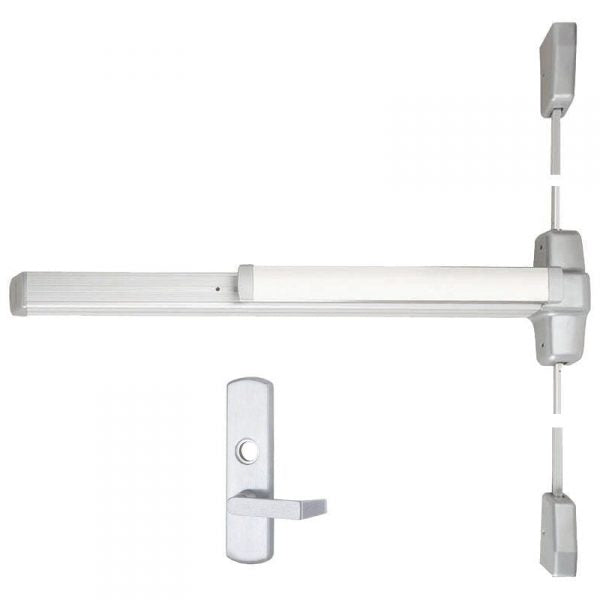

Von Duprin 9927L Surface Vertical Rod Exit Device with Lever

$2,356.86
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty - ANSI/BHMA Grade-1 -Made in USA
  • ANSI Function 08 (Key Locks & Unlocks Lever)
  • Includes 996L-RV-06 Lever (cylinder sold separately)

Available Options:

Clear

Product Overview

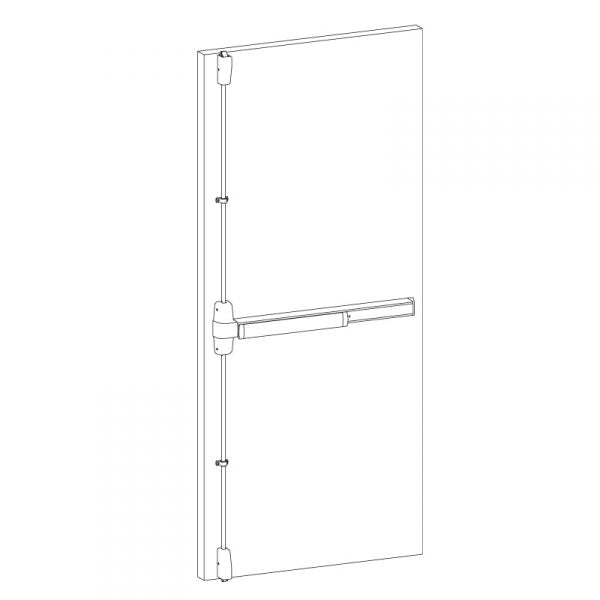

The 9927 Series has been certified to the highest industry standards and is used in schools, hospitals and, government buildings. 9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9927-F model is fire-rated for pairs of doors up to 8′ x 10′ – UL listed for fire exit hardware.

  • Standard Sizes: 3' x 7', 4' x 7' (extension rod available for door up to 10'0")
  • Designed for high use and abuse in institutional applications

996L Breakaway Lever Trim has become the standard lever trim offering on the 98L/99L Series devices. The Breakaway design is especially effective in areas where vandalism to door hardware is a problem. The design intent is to discourage costly repairs from becoming necessary.

  • ANSI Function: 08 (Key Locks & Unlocks Lever)
  • Rim cylinder required (sold separately)
  • Escutcheon plate size: 2-3/4" x 10-3/4" x 27/32"
  • Projection: 2-7/8"
  • #06 lever style furnished standard

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Center Case

8" x 2-3/4" x 2-3/8"
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Device Type

Surface Rod Device
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Doors
Fasteners

Includes screws for metal and wood doors
Finish

Anodized AluminumDark BronzeBlackSatin Chrome
Finishes

US19 (315) Flat BlackUS28 (628) Anodized Aluminum313 Duranodic Dark BronzeUS26D (626) Satin Chrome
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL Listed A or B label Fire-Rated (3 Hours)
Hand

Device Non-Handed - Lever Ships as RHR (Field Reversible)
Latchbolt

Deadlocking anti-friction top & bottom bolt 5/8" throw
Length

3'0" (2'4" to 3'0" Doors)4'0" (3'1" to 4'0" Doors)
Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Strikes

299F Top Strike 304L Bottom Strike
Trim

996L (Entry - Key Locks & Unlock Lever)
Usage

Heavy Duty
Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available)
