Falcon

Falcon 25-V-L Surface Vertical Rod Panic Bar Exit Device with Lever

$1,015.46
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI Grade-1 Certified - Made in USA
  • ANSI Function 08 (Key Locks & Unlocks Lever)
  • Includes 510L Dane Lever (cylinder sold separately)

Available Options:

Clear

Product Overview

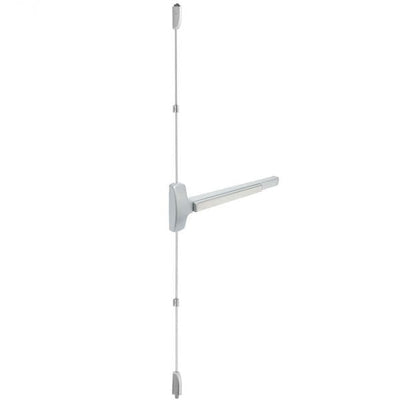

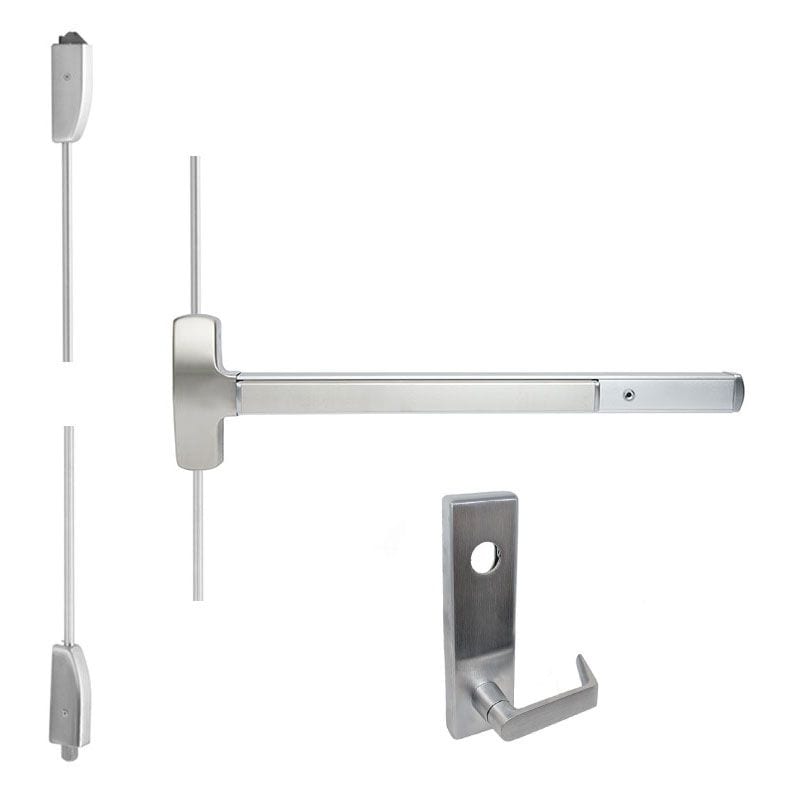

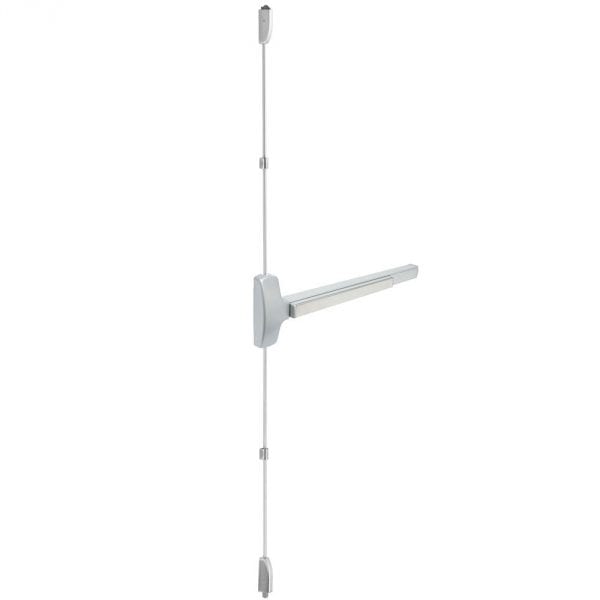

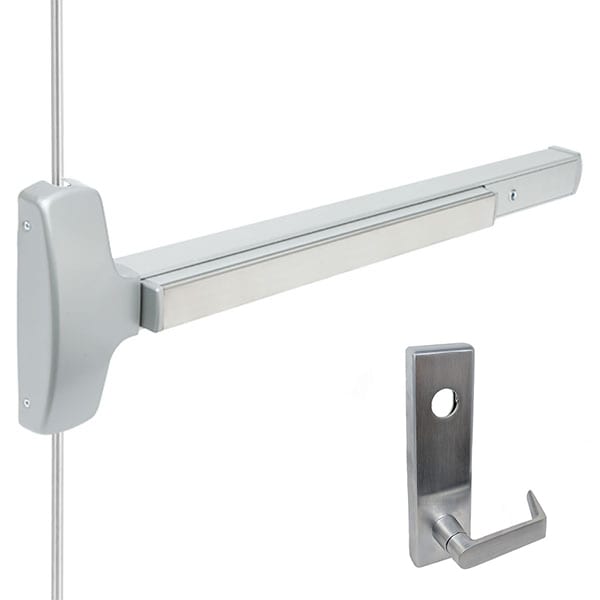

Falcon 25-V-L 25 Series Exit Device, Surface Vertical Rod with Trim, Dane Lever Design

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation. Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse. When your application requires strength and durability, plus fire-rated performance, the F-25-V Series is the total package.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines - when installed on full glass doors.

  • Deadlocking top latch standard
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • 2-3/4" maximum projection, 2" dogged
  • Stock Sizes: 3' x 7' and 4' x 7'

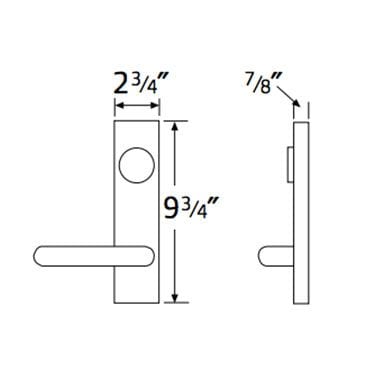

510L Lever Trim

  • ANSI Function: 08 (Key Locks & Unlocks Lever)
  • Escutcheon plate size: 2-3/4" x 9-3/4" x 7/8"
  • DANE lever style furnished standard
  • Mortise cylinder must be ordered separately

ANSI Function

F08
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Falcon
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Cylinder

1-1/4" Mortise Cylinder (sold separately)
Device Type

Surface Rod Device
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Metal or Wood Doors
Finish

BlackDark BronzeSatin ChromeAnodized AluminumStainless Steel
Finishes

313AN Anodized Dark BronzeUS32D (630) Satin Stainless SteelUS19 Flat BlackUS26D (626) Satin ChromeUS28 (628) Anodized Aluminum
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging)
Fire Rating

20 Min. 8′ x 10′; 90 Min. 8′ x 9′
Handing

Easily Re-handed in the field – Shipped as RHR
Latchbolt

Top Stainless Steel 3/4" throw. Bottom Bolt 1/2" Throw
Length

4'0" (3'4" to 4'0" Doors)3'0" (2'8" to 3'0" Doors)
Minimum Stile Width

3-1/2"
Projections

2-3/4" maximum 2" dogged
Stile Type

Wide (Standard)
Strikes

3788 Top Strike is Surface Applied - 2130 Bottom Strike is Mortised into Floor
Trim

510L
Usage

Heavy Duty
Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for doors up to 10'0")
