Product Overview

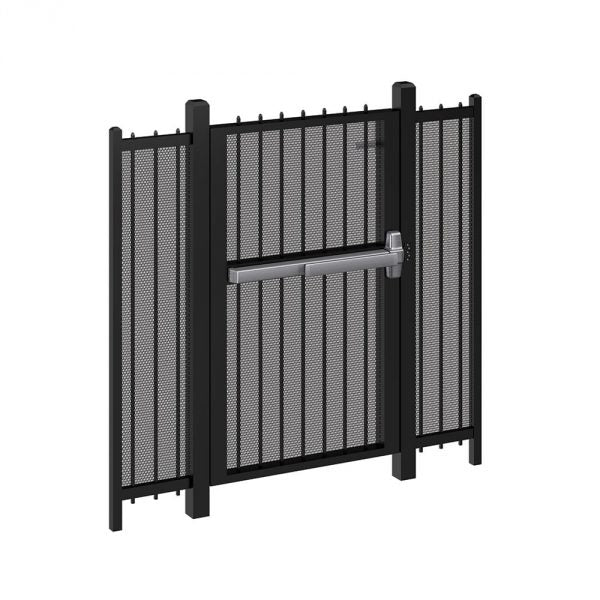

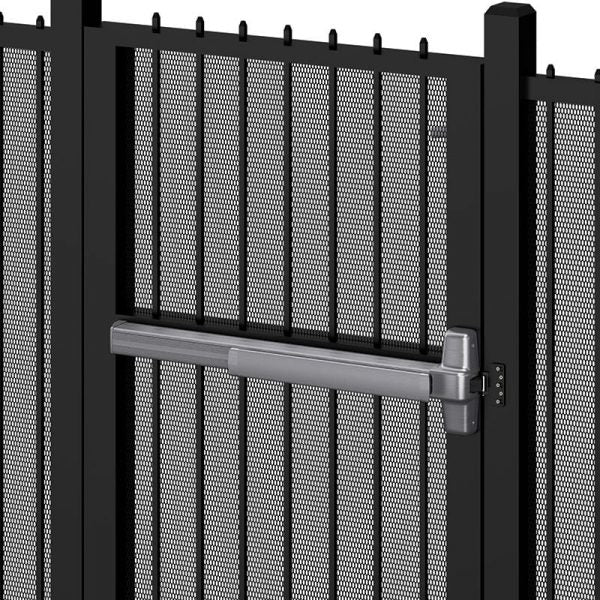

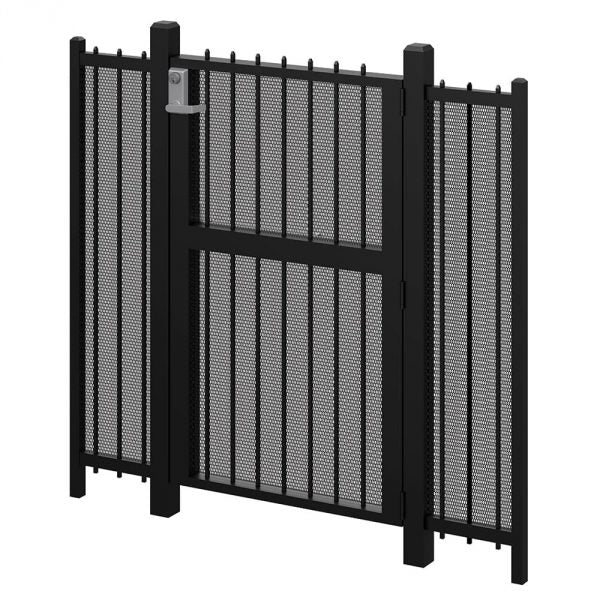

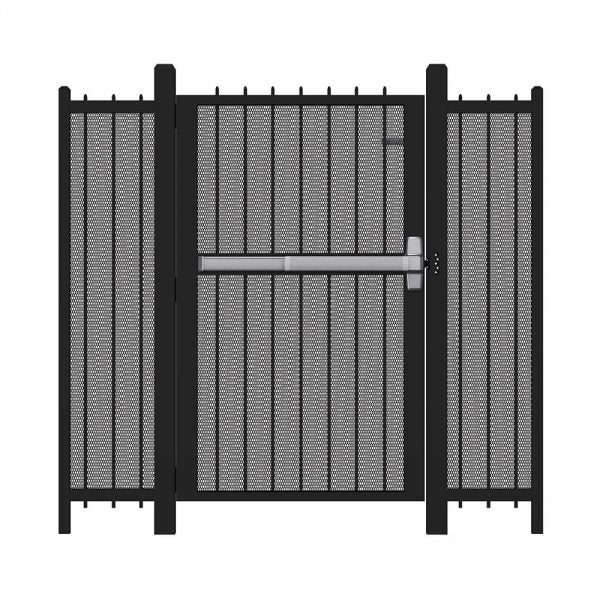

Von Duprin Grade 1 Exit Device for Pool Gate with 252L Lever, Less Cylinder, Weather Resistant
Von Duprin’s pool gate hardware is designed and built to meet the very specific needs of pool enclosures. This customized hardware solution from Von Duprin features an exit device paired with special trim to address the specific application need for pool enclosures with self-closing/self-latching gates.
- Designed to meet specific needs of pool enclosures
- Weather-resistant components ideal for outdoor applications
- Stock Sizes: 3′ and 4′ – Cut to size in field
- Gates must swing away from the pool - Outside lever must be at least 54” from finished floor or concrete
- Mounting height requirement for panic hardware - 34-48” above the floor
- Exit device and lever only (gate/fence not included)

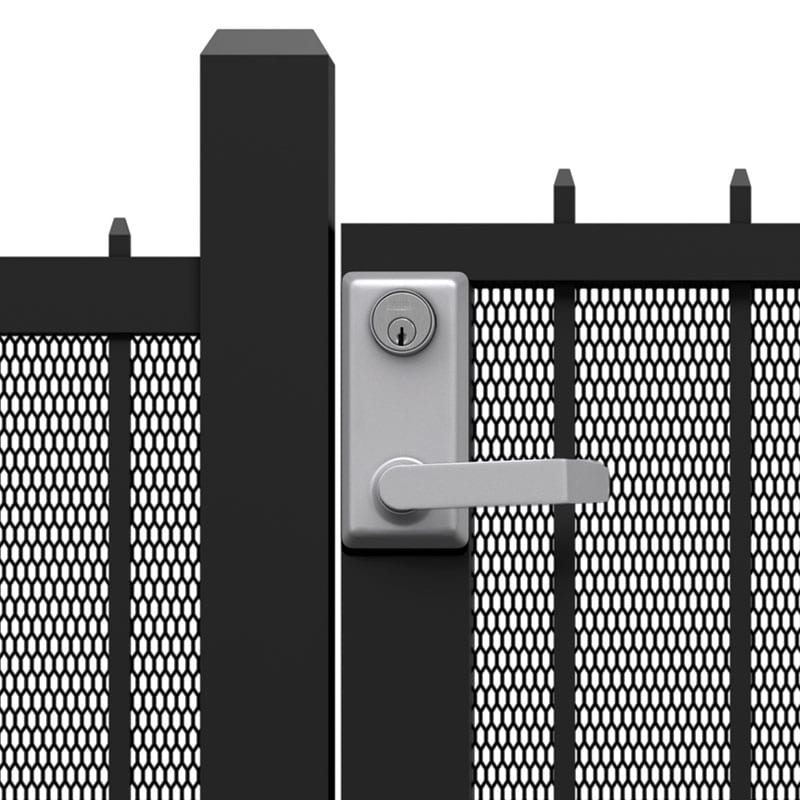

252L Lever Trim
- ANSI Function: 08
- Field reversible – ships as RHR
- Sprayed finishes: SP28 (689) Aluminum or SP313 (695) Dark Bronze
- Requires mortise cylinder (sold separately)
| ANSI Grade |
ANSI/BHMA 156.3 - 2014 Grade 1 |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Cylinder |
1-1/4" Mortise Cylinder (sold separately) |
| Dogging Feature |
None |
| Finish |
Satin ChromeDark Bronze |
| Finishes |
313 Duranodic Dark BronzeUS26D (626) Satin Chrome |
| Fire Rating |
None |
| Hand |
Device Non-Handed - Lever Ships as RHR (Field Reversible) |
| Includes Trim |
Yes |
| Latchbolt |
Deadlatching 3/4" throw |
| Length |
3'0"4'0" |
| Mechanical Options |
Weather ResistantPool Gate Hardware |
| Model |

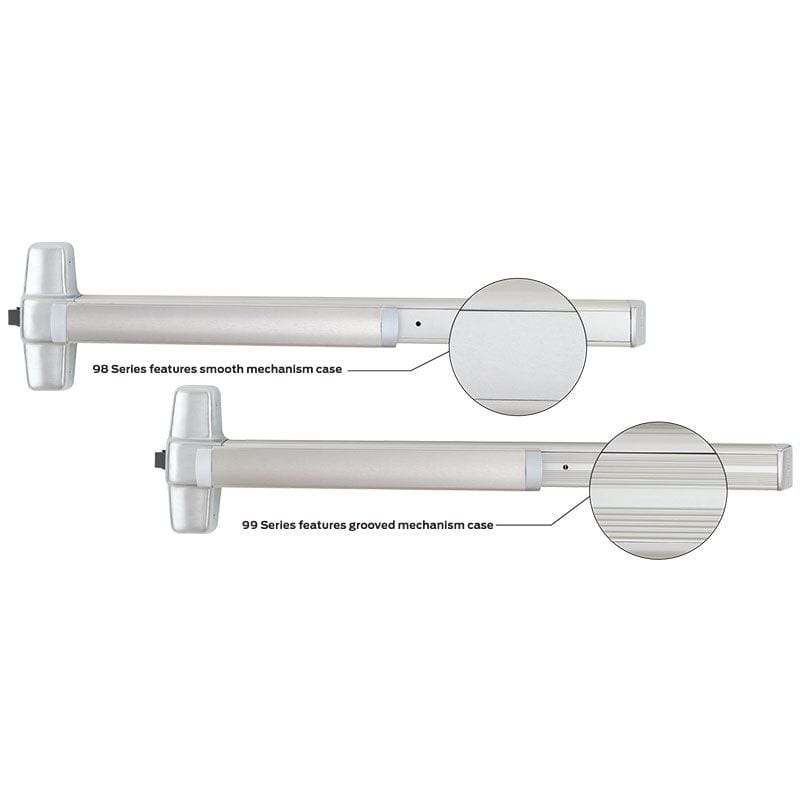

9852L (Smooth Case & Cover Plates)9952L (Grooved Case & Cover Plates) |
| Strike |
699 Roller Strike |
| Trim |
252L (Key Locks & Unlocks Lever) |
| Usage |
Heavy Duty |
