Accentra (Formerly Yale)

Accentra (Formerly Yale) YPL42 Heavy-Duty Cylindrical Indicator Lever Lock, Privacy Function, Emergency Key/Tool Override

$199.37
Usually Ships:  20-30 Business Days
  • Heavy-Duty, BHMA/ANSI Grade-1 certified
  • Ideal for high-use commercial restroom doors
  • Includes Emergency Key/Tool Override

Available Options:

Clear

Product Overview

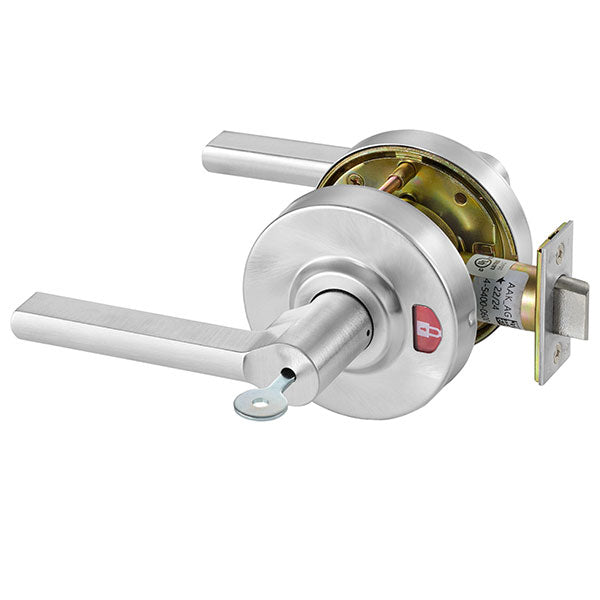

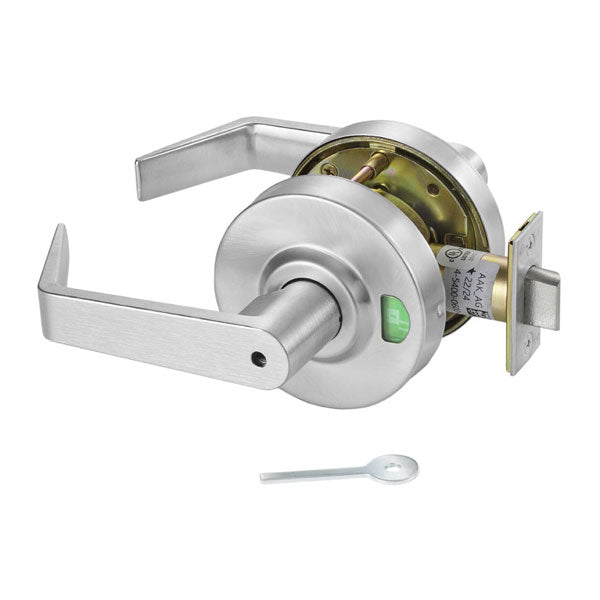

Accentra (formerly Yale) YPL Series Grade-1 Cylindrical Lock with Status Indicator, 42 Privacy Function, Emergency Key/Tool Override


The ASSA ABLOY ACCENTRA® YPL Series cylindrical lock with status indicators provides enhanced privacy at a glance with it's bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.
The cylindrical lock indicator visually displays door status; whether the door is locked or unlocked, thus eliminating potentially embarrassing situations and providing peace of mind.

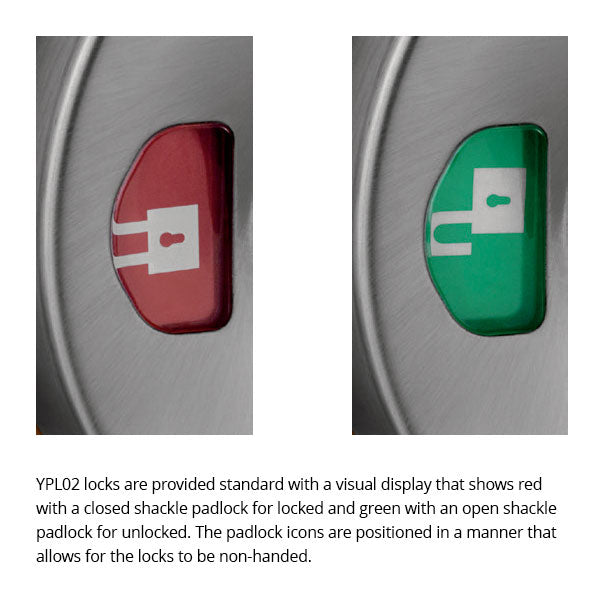

YPL02 locks are provided standard with a visual display that shows red with a closed shackle padlock for locked and green with an open shackle padlock for unlocked. The padlock icons are positioned in a manner that allows for the locks to be non-handed.

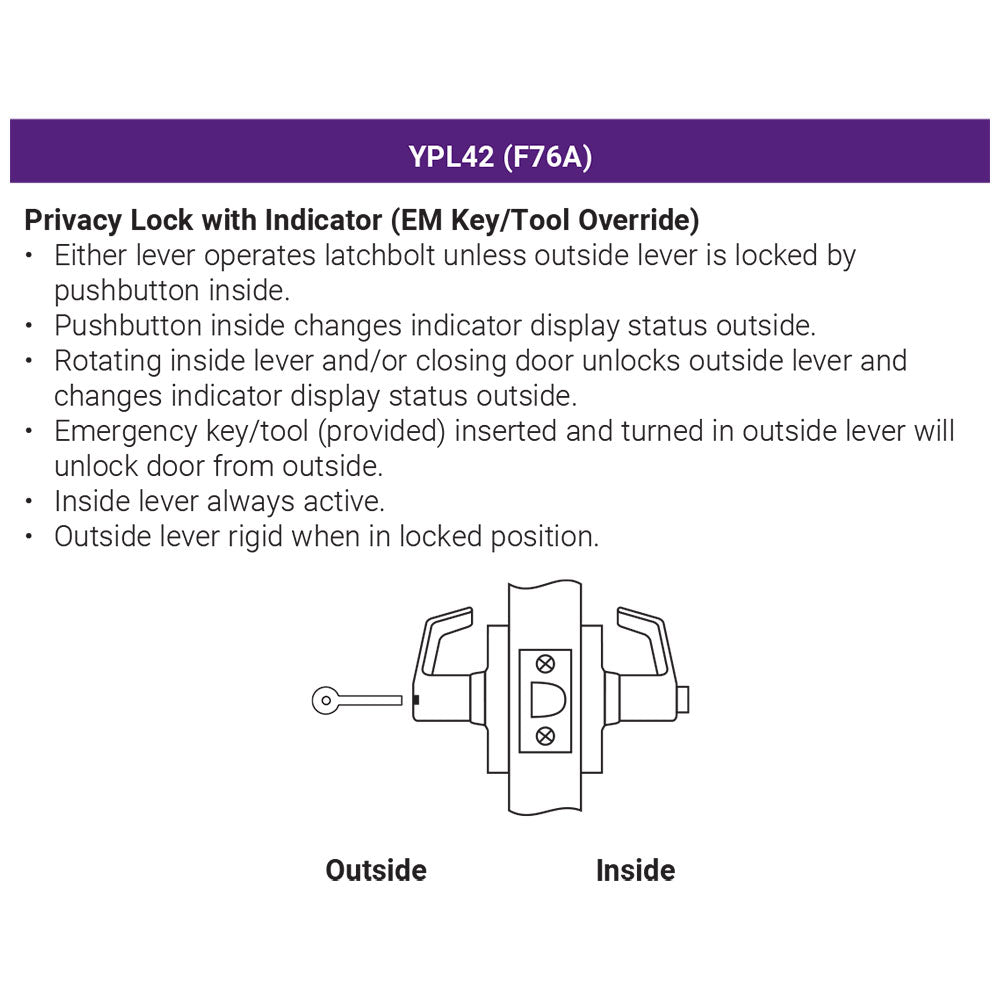

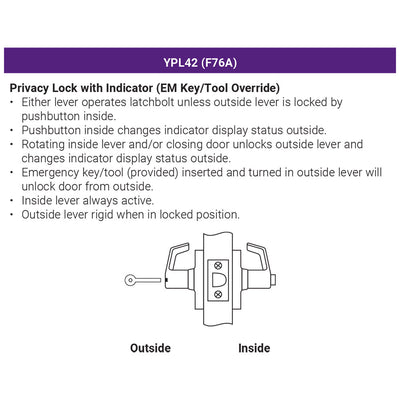

YPL42 (F76A) Privacy Bath/Bedroom (EM Key/Tool Override)
  • Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
  • Pushbutton inside changes indicator display status outside.
  • Rotating inside lever and/or closing door unlocks outside lever and changes indicator display status outside.
  • Emergency key/tool (provided) inserted and turned in outside lever will unlock door from outside.
  • Inside lever always active.
  • Outside lever rigid when in locked position.

Features
  • Red or Green window display with padlock icon for visual door status
  • Cylindrical lock construction for durability and longevity in high-use applications (not the less durable tubular design of other indicator locks)
  • Privacy function (F76A) with push button lock and for automatic unlock when inside lever is pushed down
  • Using a standard bored lock door prep, this indicator lock is ideal for new construction or retrofit applications
  • One motion for egress
  • Coin turn for emergency access
  • Through-bolted for robust operation
  • Lever returns to within 1/2" of door face
  • UL Listed for 3 hour fire doors
  • ADA compliant lever
  • Patent pending
  • 2-3/4" backset latch supplied standard with all YPL02 locksets (see part number 378PL for 2-3/8" backset)
  • The YPL02 installs on 1-3/4" thick doors standard. It can also be used on 1-3/8" thick doors by adding adapter plates. See adapter plate kit model number APK-2.
Applications
  • Office buildings
  • Restaurants
  • Schools
  • Hospitals
  • Warehouses
  • Airports
  • Places of Worship
  • Convenience Stores
  • Gas Stations
  • Travel Centers
YPL-Codes
