Product Overview

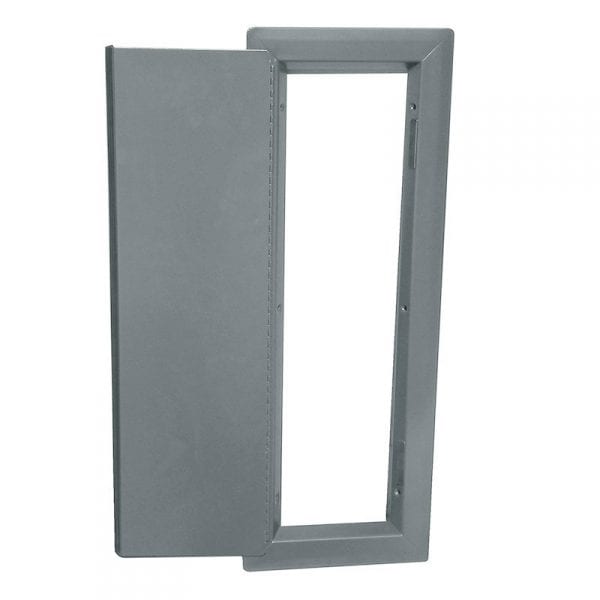

Add privacy to doors with this multipurpose low profile vision lite for up to 1/4” thick glazing with metal privacy door
- Frame has countersunk mounting holes on the non-corridor side and 20 gauge door is attached by continuous hinges to one side of the lite
- 1-1/4” trim with radius corners, mitered and welded
- Angled door edge serves as a pull
- Can be used as side or top opening door

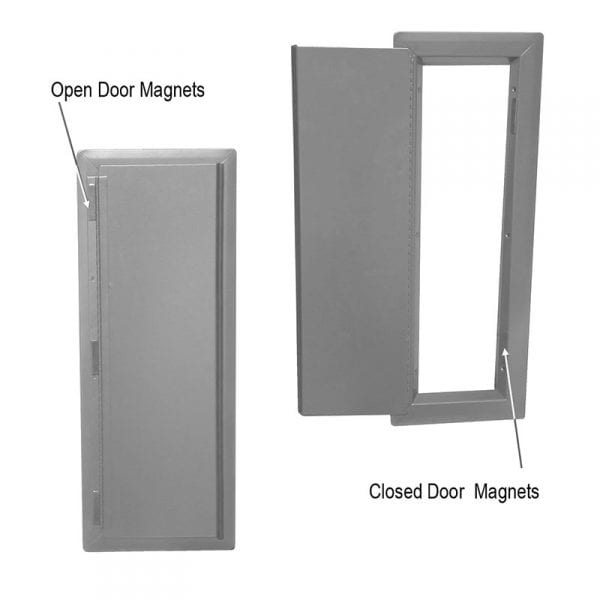

- Magnetic catch provided to hold door in open and closed position

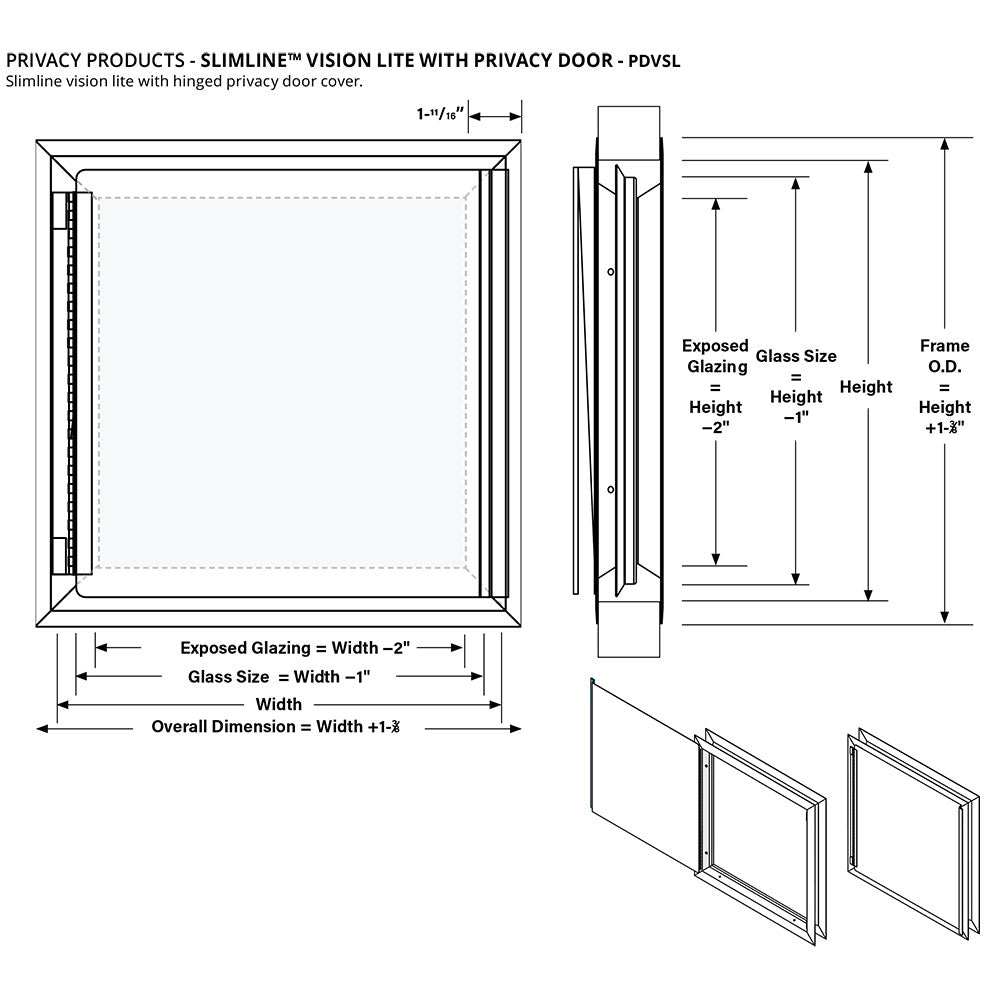

- Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
- Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section.
This product is made to order and non-returnable or refundable.
Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts
| Brand |
Air Louvers |
|---|---|
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Construction |
20 Gauge CRS frame with 20 gauge door on continuous hinges welded to vision lite |
| Door Thickness |
1-3/4" |
| Fasteners |
flathead phillips head SMS to match finish |
| Finish |
Mineral BronzeGray |
| Finishes |
Gray (G)Mineral Bronze (B) |
| Frame Fire-Rating |
Non-Fire-Rated |
| Frame Profile |
Low |
| Glass Thickness |
3/16" to 1/4" |
| Order Size |
6" x 27"8" x 32"5" x 35"12" x 12"7" x 22" |
