Product Overview

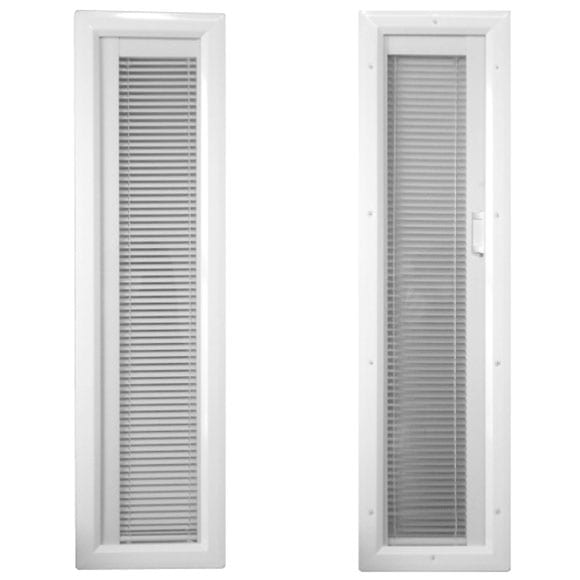

The ideal solution for privacy - Low profile door vision lite with blinds built in between insulated glass

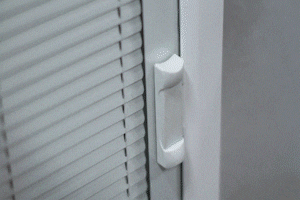

Add privacy to doors in education, office, or healthcare settings with an attractive, dust-free miniblind that is maintenance-free. Mini blinds are completely enclosed by two panes of tempered glass and sealed as an insulated glass unit, including a magnetic mechanism to operate the blinds. The two ends of the blinds terminate behind opaque channels for greater privacy. All mini blinds feature a lift-and-tilt operator.

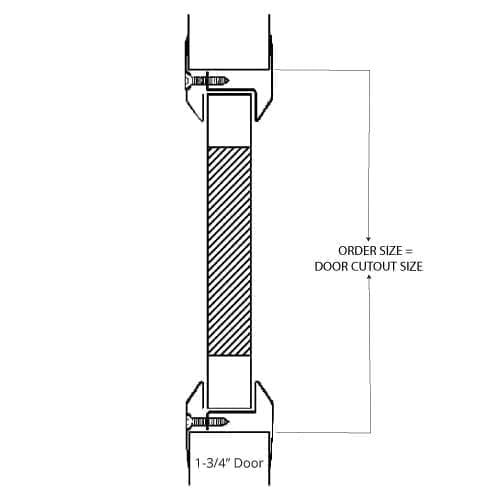

Order Size: Order size equal to door cutout size – Glass size is 1″ under, Visible glass is 2″ under
Material: 20 gauge steel frame
Color: White powder coated frame with white blinds
Construction: Beveled low profile frame with countersunk mounting holes. Corridor side of door is fastener-free for a clean, professional look.
Glass: 1" thick insulated tempered glass. Blinds are sealed between the two lites of glass. 2 panes of 1/8” clear tempered glass. Glass Size is 1” under order Size. Blind frame is revealed 1/4” on the left side, 1-1/4” on the right side (controller side) and 1-1/4” on top.
Blinds: White painted 5/8” aluminum blinds. Blinds tilt a full 180 degrees for light control and privacy. Privacy channels on both edges of blind.

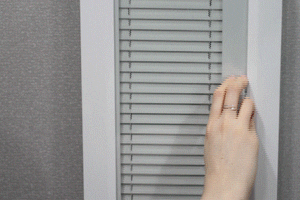

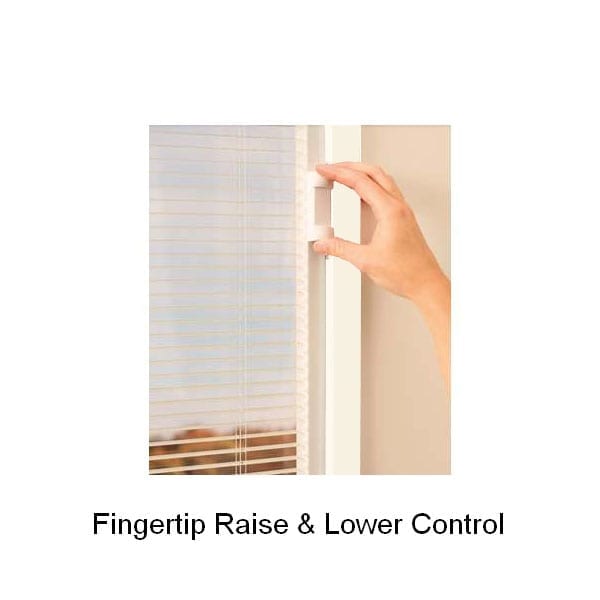

Operator: All Models Have Fingertip Raise, Lower and Tilt Control with a single operator.
This product is made to order and non-returnable or refundable.
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
| Brand |
Air Louvers |
|---|---|
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Door Thickness |
1-3/4" |
| Finish |
White |
| Fire Rating |
Non-Fire-Rated |
| Frame Construction |
20 Gauge Cold Rolled Steel |
| Frame Fasteners |
#8 x 1" Flathead Phillips SMS - Included |
| Frame Material |
Cold Rolled Steel |
| Frame Profile |
Low |
| Glass Impact Safety Rating |
ANSI Z97.1 ASTM C1048. |
| Glass Type |
Clear Insulated Glass |
| Order Size |
23" x 65"9" x 37"23" x 37"15" x 65" |
| Classification (Fire-Rating) |
None |
